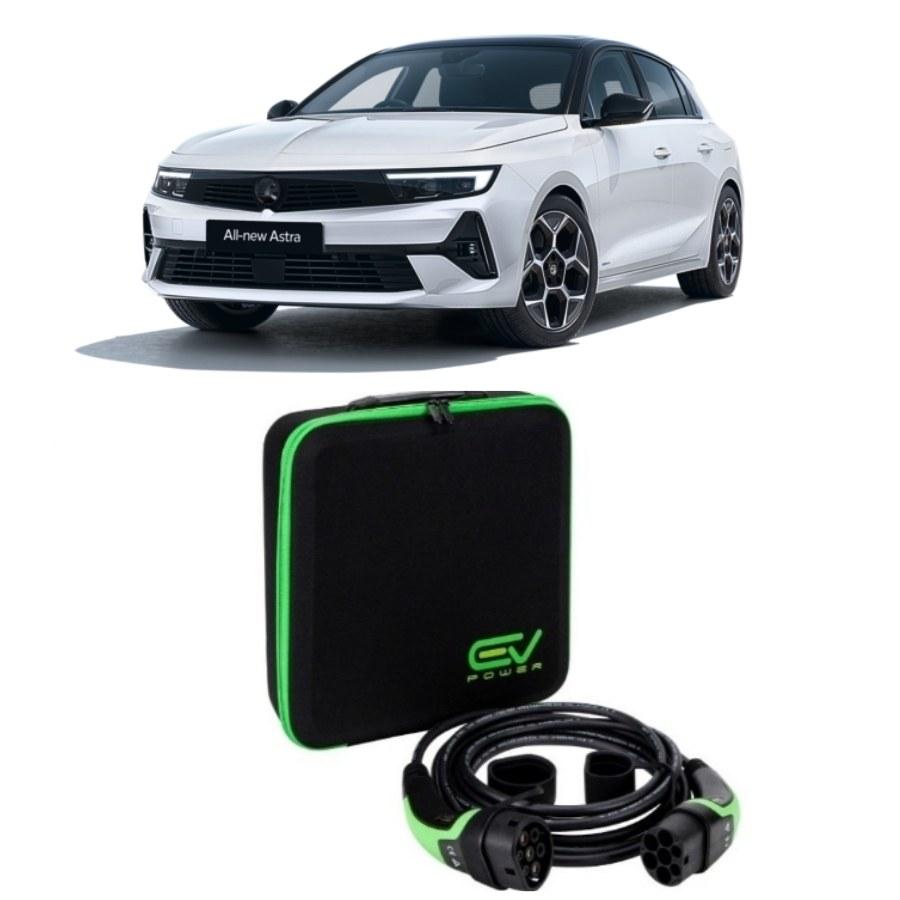

The Vauxhall Astra Electric takes 11 kW AC, a three phase rating, so the fastest a home wallbox can feed it is 7.4 kW and a 32A single phase Type 2 to Type 2 charging cable delivers precisely that.

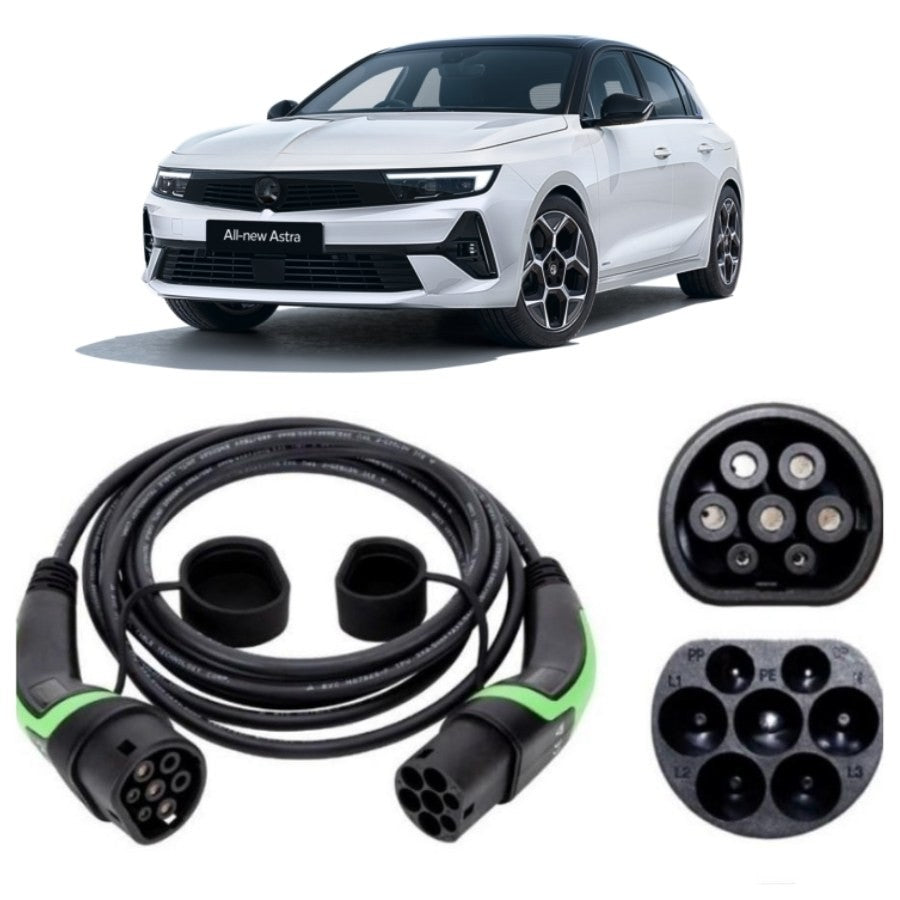

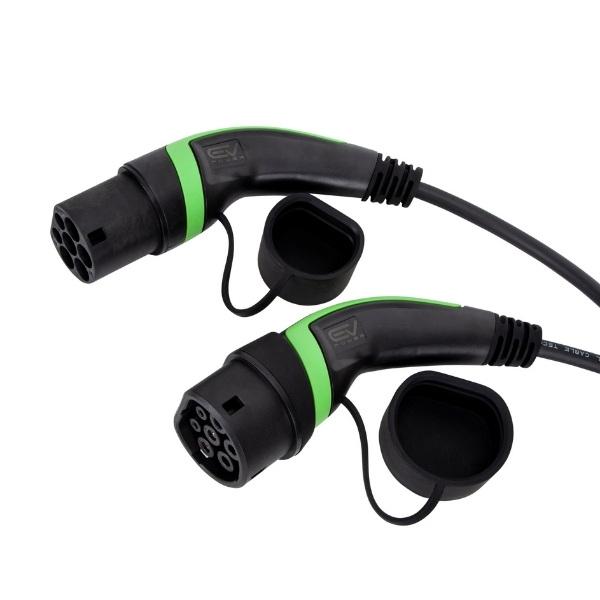

Both the Astra Electric hatchback and the Astra Sports Tourer Electric estate take a Type 2 to Type 2 Charging Cable through the Type 2 portion of the CCS Combo 2 inlet. Whichever body you have, the connector is the same.
One thing worth knowing before you compare charge times: almost every Astra Electric on British roads today is the 54 kWh car. Vauxhall only opened orders for the larger 58.3 kWh version in mid 2026, with first deliveries in July of that year, so unless yours is brand new it will be the earlier pack with a WLTP range near 258 miles in the hatch and 257 in the Sports Tourer. Use the first table below.
The 32A single phase cable is the right buy for either battery. It fills the 54 kWh car in about 7 hours 45 minutes and the 58.3 kWh car in about 8 hours 30 minutes, and in both cases returns roughly 38 miles of range for each hour plugged in. A normal seven hour cheap rate period therefore covers a full charge on either car, which is the practical test that matters.
The 16A cable is where Astra owners lose out. At 3.7 kW the car gains about 19 miles an hour, so seven hours overnight returns around 130 miles rather than a full battery. For anyone using an Astra Electric as a daily commuter that is a car that never quite catches up, and the small saving on the cable buys you a permanent charging deficit.
Three phase is a different question. The Astra Electric caps at 11 kW and needs three phases to get there, and British homes are wired for one. On the drive a 22 kW cable will charge your Astra at 7.4 kW exactly like the cheaper single phase lead. Only at a workplace or business unit with a genuine three phase feed does it lift the car to about 56 miles an hour.

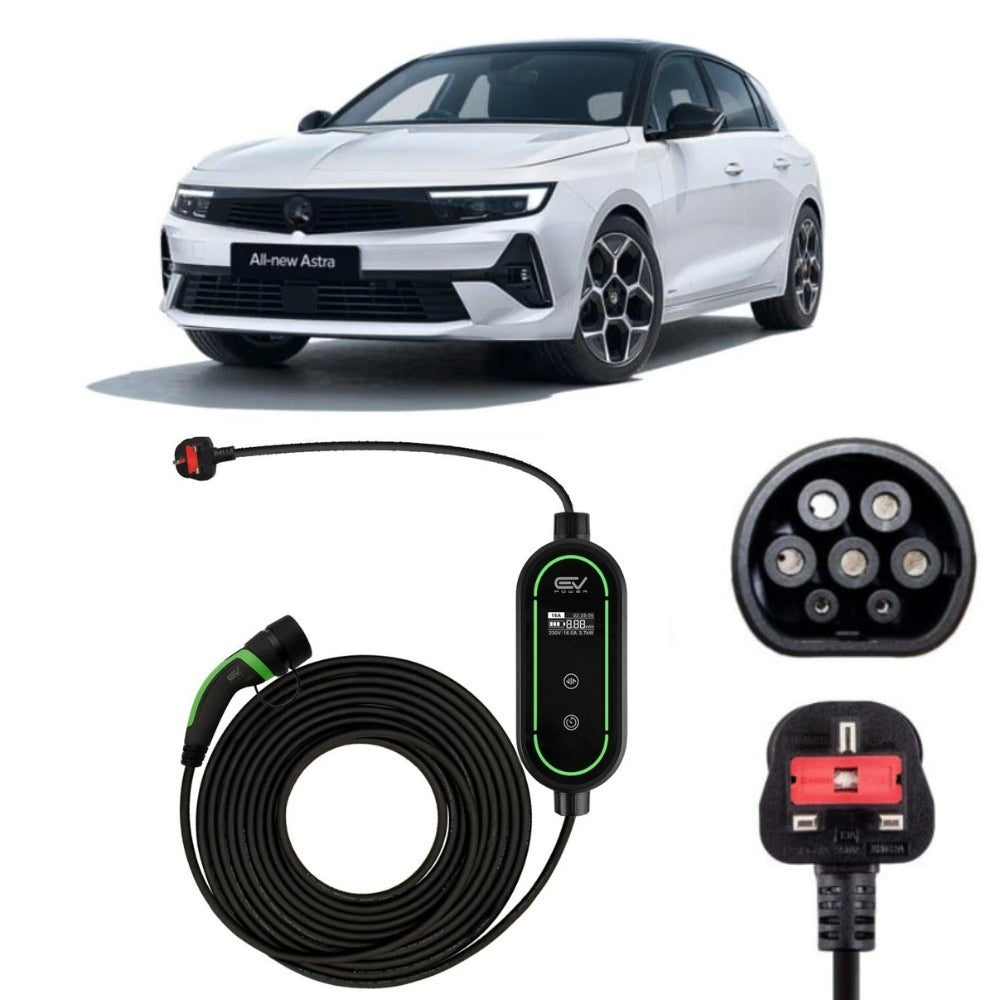

A Type 2 to 3-Pin Charging Cable earns its keep as a spare. At 2.3 kW the Astra Electric picks up around 12 miles an hour, adding perhaps 80 miles across a long overnight stop at a house with no charge point. Sports Tourer owners have the boot space to carry both leads without thinking about it, which is one small practical advantage of the estate.
The Vauxhall Mokka-e charging cable and Vauxhall Corsa-e charging cable pages cover the brand's smaller electric cars, and the Vauxhall EV charging cables collection holds the full range.
Delivery is free and next working day across the UK, and a 2 year manufacturer's warranty covers every lead. Cables are built to IEC 62196 Type 2 and certified CE. Sealing is IP55 on a Type 2 to Type 2 lead and IP67 on a Type 2 to 3-Pin one, with -30C to +50C, or +60C for the 3-pin either side of that.
Maximum onboard AC charging speed: 11 kW on three phases, cut to 7.4 kW by a single phase domestic feed.
| Cable Type | Max Charge Rate | Empty to Full | Range Added Per Hour | Verdict |
|---|---|---|---|---|
| 16A Type 2 to Type 2 | 3.7 kW | 15 hours 30 mins | approx. 19 miles | Leaves the car short overnight |
| 32A Single Phase Type 2 to Type 2 | 7.4 kW | 7 hours 45 mins | approx. 38 miles | Best Fit at home |
| 32A Three Phase Type 2 to Type 2 | 11 kW (car limited) | 5 hours 15 mins | approx. 56 miles | For 22kW posts and workplaces |
| Type 2 to 3-Pin | 2.3 kW | 25 hours | approx. 12 miles | Ideal backup |
Vauxhall published the gross figure of 54 kWh for this battery but not a usable one, so 50.8 kWh is an independent estimate. The Sports Tourer is rated at 257 miles.
Maximum onboard AC charging speed: 11 kW on three phases, cut to 7.4 kW by a single phase domestic feed.
| Cable Type | Max Charge Rate | Empty to Full | Range Added Per Hour | Verdict |
|---|---|---|---|---|
| 16A Type 2 to Type 2 | 3.7 kW | 17 hours | approx. 19 miles | Leaves the car short overnight |
| 32A Single Phase Type 2 to Type 2 | 7.4 kW | 8 hours 30 mins | approx. 38 miles | Best Fit at home |
| 32A Three Phase Type 2 to Type 2 | 11 kW (car limited) | 5 hours 45 mins | approx. 56 miles | For 22kW posts and workplaces |
| Type 2 to 3-Pin | 2.3 kW | 27 hours 15 mins | approx. 12 miles | Ideal backup |
Vauxhall states 55.4 kWh usable on this battery, so these figures come from a manufacturer number. The Sports Tourer is rated at 276 miles, and Vauxhall has quoted the hatch at both 281 and 282 miles. The figure drops in winter and at motorway pace.
We pride ourselves on the quality of our cables. Every cable comes with a 2 year manufacturer's warranty, and the jacket will survive being driven over, though we would rather you did not make a habit of it.
Protection against pressure

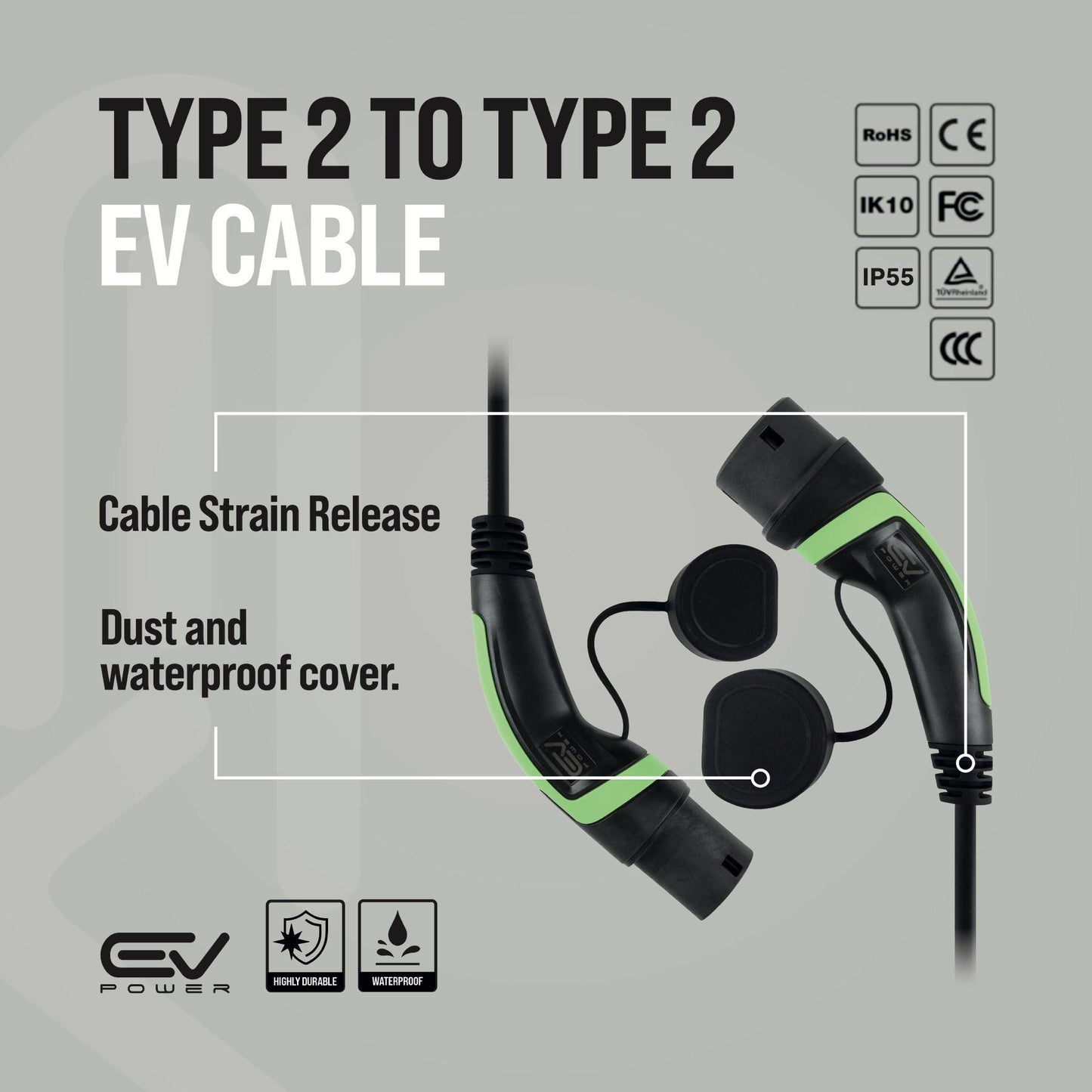

Our cables are safe to use whatever the weather. Type 2 to Type 2 cables are IP55 rated, CE marked, and work from -30°C to +50°C. Type 2 to 3 pin cables are IP67 rated, CE marked and work from -30°C to +60°C.
Protection against temperature
Our cables fit any electric car or plug-in hybrid with a Type 2 inlet, including Audi, BMW, Volvo, Mini, Mercedes, Kia, Hyundai, Volkswagen, Smart and Toyota. Use our car reg checker to confirm your car.
Compatible with all Type 2 cars
A 32A single phase Type 2 to Type 2 charging cable. The Vauxhall Astra Electric accepts 11 kW on a three phase supply, which a UK home reduces to 7.4 kW, and the 32A single phase lead carries the full 7.4 kW without restriction.
If your Vauxhall Astra Electric was registered before mid 2026 it has the 54 kWh battery and around 258 miles of WLTP range. The larger 58.3 kWh pack, rated at 281 miles, only reached UK customers from July 2026. Both use an identical 11 kW onboard charger, so the cable choice does not change between them.
No. The Vauxhall Astra Sports Tourer Electric shares its battery and 11 kW charger with the hatchback, so both charge in the same time. The estate is rated for a handful fewer WLTP miles, which makes no practical difference to how you charge it.
At home, yes. The Vauxhall Astra Electric is limited to 11 kW and that rate needs three phases, which domestic properties in Britain do not receive. A 22 kW cable therefore charges an Astra Electric at exactly the same 7.4 kW as the 32A single phase lead on a home wallbox. It only repays the extra cost if you also charge somewhere with a three phase supply.
The Vauxhall Astra Electric carries its charging flap on the rear left wing, and the hatch measures about 4.4 metres against 4.6 for the Sports Tourer. Backing onto a drive with the wallbox on the left keeps you inside 5m. Parking nose first puts the flap at the far end, so 10m is the safer choice, and estate owners who also load the boot from the same side will appreciate the slack.
Yes. Public AC posts in the UK are mostly untethered Type 2 sockets, and a Vauxhall Astra Electric owner with a Type 2 to Type 2 cable can plug straight into them. Rapid DC chargers have their own fixed cables, so you would not use your own lead there.
Showing both cable types. Choose a cable type above and this section will show just that specification.
Showing the specification for the cable type you have selected. Compare both cable types.
| Type 2 to Type 2 | Type 2 to 3 pin | |
|---|---|---|
| Charges from | A home wallbox or a public charge point | Any standard UK 3 pin socket, no wallbox needed |
| Max power | 3.7 kW at 16A, 7.4 kW at 32A, 22 kW on three phase | 2.4 kW |
| Speed at home | 7.4 kW on a 32A cable. UK homes are single phase, so an 11 kW or 22 kW car still draws 7.4 kW | 2.4 kW |
| Range per hour | About 12 miles at 3.7 kW, 25 miles at 7.4 kW | About 8 miles |
| Weatherproof rating | IP55 | IP67 |
| Temperature | -30°C to +50°C | -30°C to +60°C |
| Built to | IEC 62196-2:2016 2-IIb | IEC 62752:2016 / COR1:2019 |
| Certified | CE | CE |
| Best for | Your everyday charging cable | Backup, and away from home where there is no wallbox |
| Choose this | Select Type 2 to Type 2 for the Vauxhall Astra Electric | Select Type 2 to 3 pin for the Vauxhall Astra Electric |
| Full range | All Type 2 to Type 2 cables | All Type 2 to 3 pin cables |

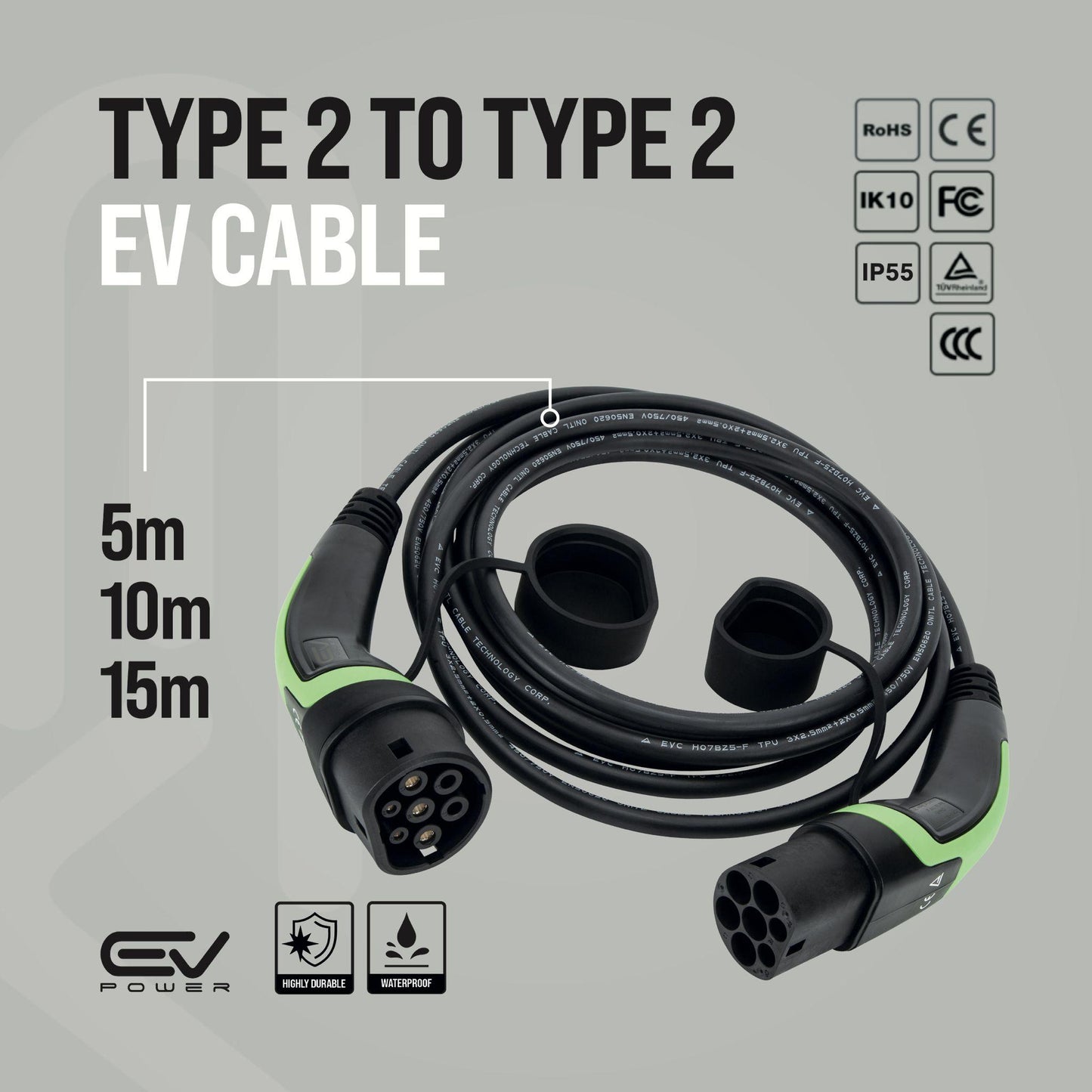

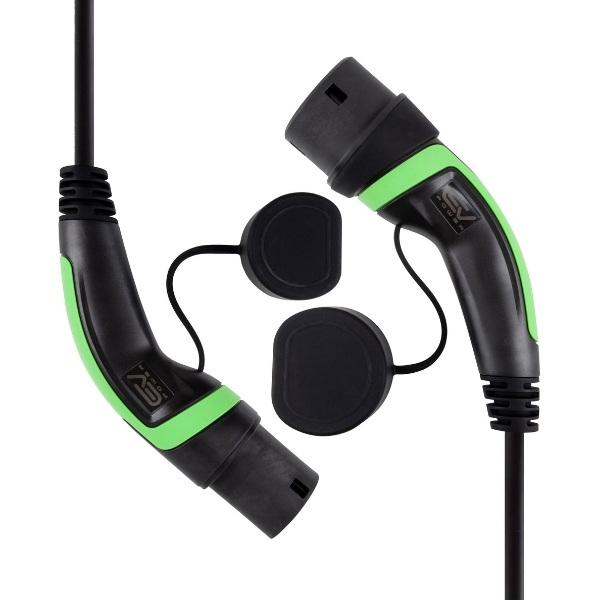

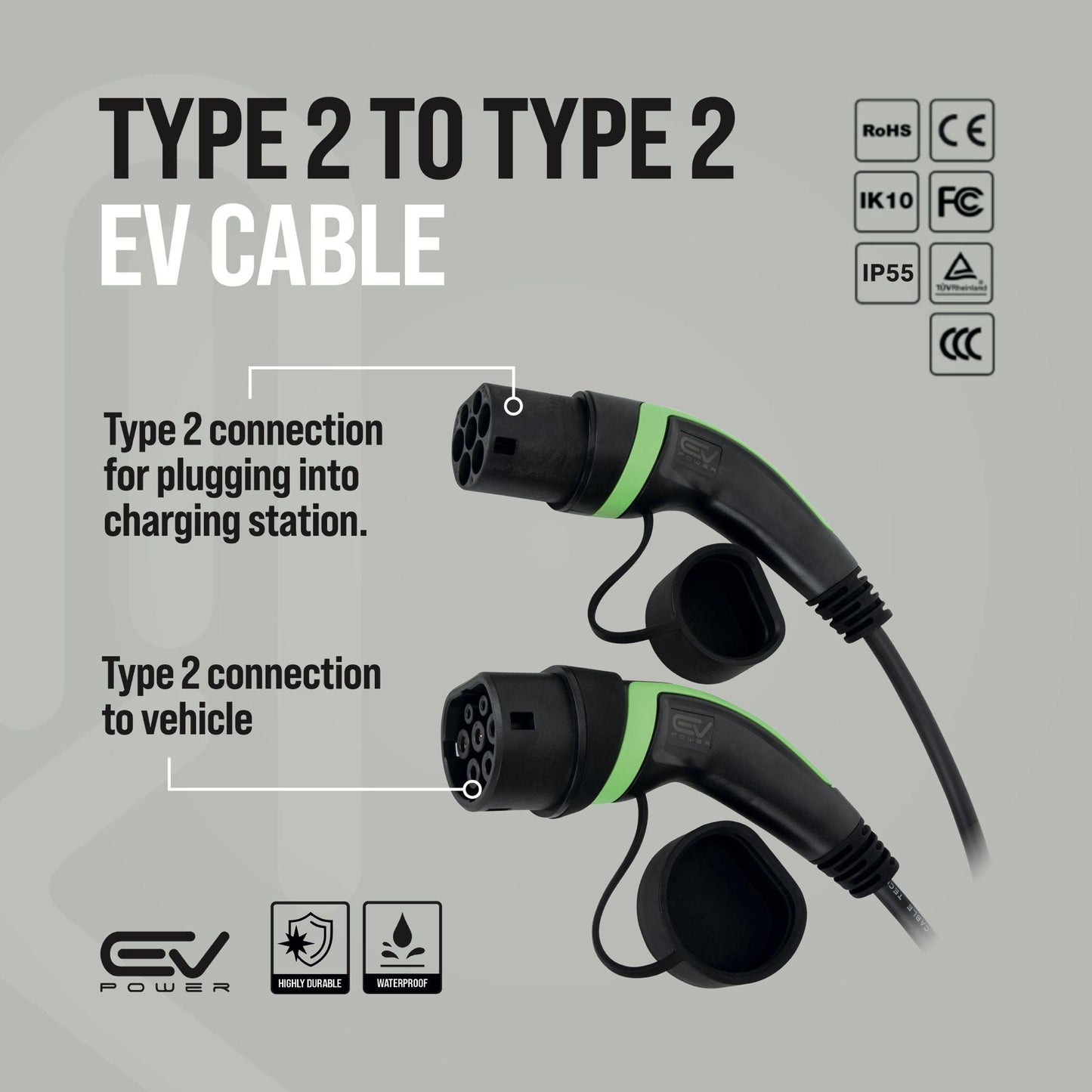

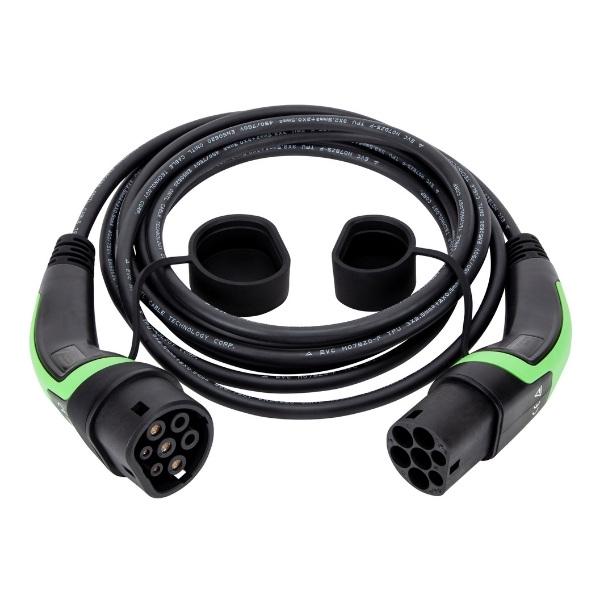

| Connector type | Type 2 to Type 2 (IEC 62196-2:2016 2-IIb, Mennekes) |
| Rated current | 16A or 32A single phase, or 32A three phase |
| Max power | 3.7 kW at 16A, 7.4 kW at 32A, 22 kW on three phase |
| Speed at home | 7.4 kW. UK homes are single phase, so an 11 kW or 22 kW car still draws 7.4 kW |
| Range per hour | About 12 miles at 3.7 kW, 25 miles at 7.4 kW |
| Slower supplies | Fine. Charging runs at the lowest limit of the car, the charge point and the cable, so a 32A cable works normally on a 16A supply |
| Voltage | AC 250V single phase, AC 400V three phase, 50Hz |
| Signal current | 2A at 30V |
| Full range | All Type 2 to Type 2 cables |
| Lengths | 5m, 10m, 15m, 20m |
| Conductors | 16A: 3 x 2.5mm² plus 2 x 0.5mm² 32A single phase: 3 x 6mm² plus 2 x 0.5mm² 32A three phase: 5 x 6mm² plus 1 x 0.5mm² |
| Insulation | XLPO |
| Sheath | TPU |
| Shell | Flame retardant thermoplastic, UL94-V0 |
| Pins | Copper alloy, silver plated |
| Colour | Black cable, green and black connectors |
| Weatherproof rating | IP55 in use |
| Temperature | -30°C to +50°C |
| Mechanical life | Over 1,000 connections |
| Impact | Survives a 1m drop and a 2 tonne vehicle driving over it |
| Plug force | Under 100N |
| Insulation resistance | Over 1,000 MΩ at DC 500V |
| Withstand voltage | 2,500V |
| Contact impedance | 0.5 mΩ maximum |
| Pin temp rise | Under 50K |
| Built to | IEC 62196-2:2016 2-IIb |
| Certified | CE |
| Connector type | Type 2 to 3 pin, BS1363 13A plug |
| Socket needed | Any standard UK 3 pin socket. No wallbox needed |
| Max power | 2.4 kW |
| Current | 6A to 13A, set on the control box |
| Voltage | 230V AC, 50Hz |
| Range per hour | About 8 miles |
| Overnight | About 100 miles in 12 hours |
| Full range | All Type 2 to 3 pin cables |
| Weatherproof rating | IP67 |
| RCD | Built in, Type B |
| Protection | Over and under voltage, overload, short circuit, earth leakage, over temperature and lightning surge |
| Built to | IEC 62752:2016 / COR1:2019 |
| Certified | CE |
| Display | OLED screen: charging time, energy used, live voltage, current and power, and lifetime total |
| Controls | Touch key, LED status light, adjustable current, delay timer |
| Box size | 200 x 90 x 52 mm |
| Weight | Up to 2.1 kg |
| Cooling | Natural air |
| Standby power | Under 0.5 W |
| Connectivity | None. No WiFi, Bluetooth, 4G or Ethernet |
| Lengths | 5m, 10m, 15m |
| Temperature | -30°C to +60°C |
| Humidity | Up to 95% |
| Max altitude | 2,000m |
| Materials | Tempered glass and PC control box |
| Colour | Black |

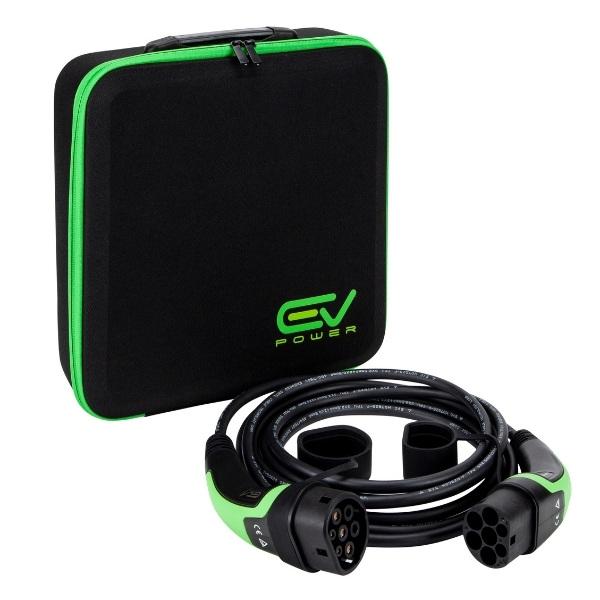

| In the box | Charging cable only. The premium storage carry bag is sold separately |
| Warranty | 2 year warranty |
| Delivery | Free next working day UK delivery |
Two entirely different Astras plug in and they are not interchangeable. The Astra Electric is the full battery car, with a 54 kWh pack, an 11 kW charger as standard and CCS rapid charging. The Astra Plug-in Hybrid is a petrol car with a small battery, no rapid charging at all, and a much slower onboard charger: 3.7 kW as standard with 7.4 kW as a £500 option. Same nameplate, completely different charging behaviour. Both are Type 2, so the same cable physically fits either, but a 32A cable is only worth the money on the Electric or on a PHEV with the 7.4 kW upgrade. The Astra petrol, diesel and 48V mild hybrid have no charging port at all.
| Badge | Years | Battery | Connector | Max AC charge speed | Cable we recommend |
|---|---|---|---|---|---|
| Astra Electric hatchback, 156hp | 2023 onwards | 54 kWh, around 51 usable | Type 2, plus CCS rapid at 100 kW | 11 kW standard, which is 7.4 kW on a UK home supply | Type 2 to Type 2, 32A |
| Astra Sports Tourer Electric, 156hp | Late 2023 onwards | 54 kWh | Type 2, plus CCS rapid | 11 kW standard | Type 2 to Type 2, 32A |
| Astra Electric 58 kWh, hatch and Sports Tourer | 2025 onwards | 58 kWh | Type 2, plus CCS rapid | 11 kW standard, or about 8 hours on a 7 kW home wallbox | Type 2 to Type 2, 32A |
| Astra Plug-in Hybrid 180 | 2022 to 2025 | 12.4 kWh gross | Type 2. No rapid charging | 3.7 kW standard, 7.4 kW optional | Type 2 to Type 2, 16A is enough unless yours has the 7.4 kW charger |
| Astra Plug-in Hybrid 195 and Astra GSE 225 | Late 2025 onwards | 17.2 kWh gross | Type 2. No rapid charging | 3.7 kW standard, 7.4 kW a £500 option | Type 2 to Type 2, 16A is enough. 32A if yours has the 7.4 kW charger |
| Astra petrol, diesel or 48V Hybrid | Any year | None or 48V only | No charging port | Does not plug in | No cable needed |
Free Next Working Day Delivery
Use our car reg compatibility checker to make sure your getting the right charger for you vehicle.
Cable Type:
How do I Choose?The cable connection depends on what connection type your car accepts. If you don't know, use our handy car reg checker.
Cable Length:
Sizing guideWe offer different length cables to suit your needs, whether you park next to your charger at home or at the office.
Rated Power (Charge Speed):
How do I Choose?Rated power is the fastest the cable can charge. Match it to your car and your charge point. A higher rated cable still works at every lower speed.
Accessory Add-Ons

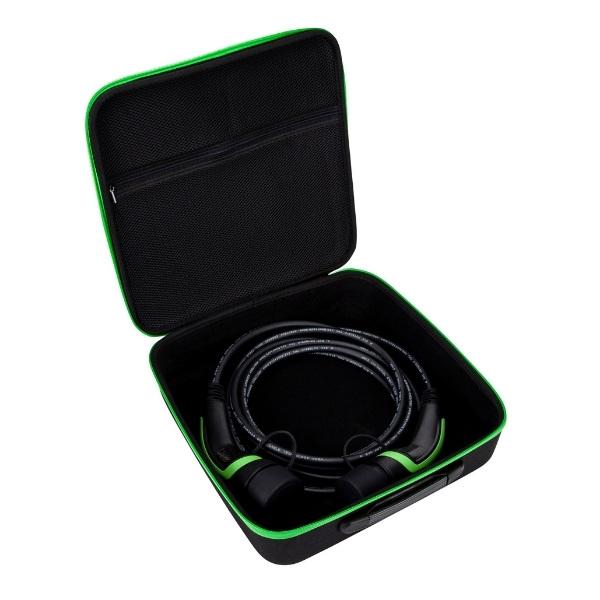

We offer a range of products to help store and transport your charging cable. Choose from the accessories below:
