EV Cable Shop recommendation

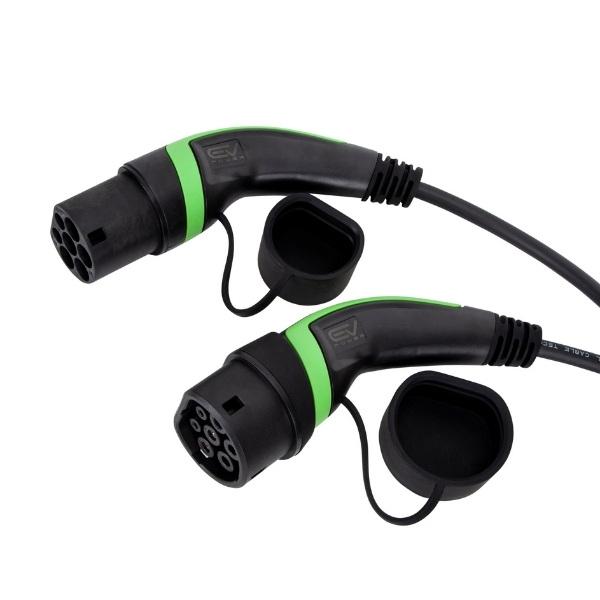

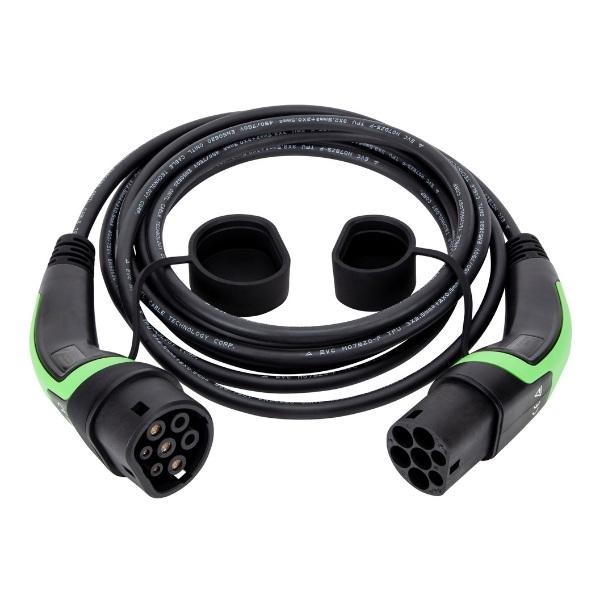

Type 2 to Type 2, 32A three phase, 22 kW (5m / 10m)
The MG4 accepts up to 11 kW on AC. This cable carries the fastest version of the car at full speed and works on any three-phase charge point you meet.
Only charging at home? A British house is single phase, so the car draws 7.4 kW whatever cable is plugged into it. The 32A single-phase cable (5m / 10m / 15m / 20m) gives you all of that for less money.

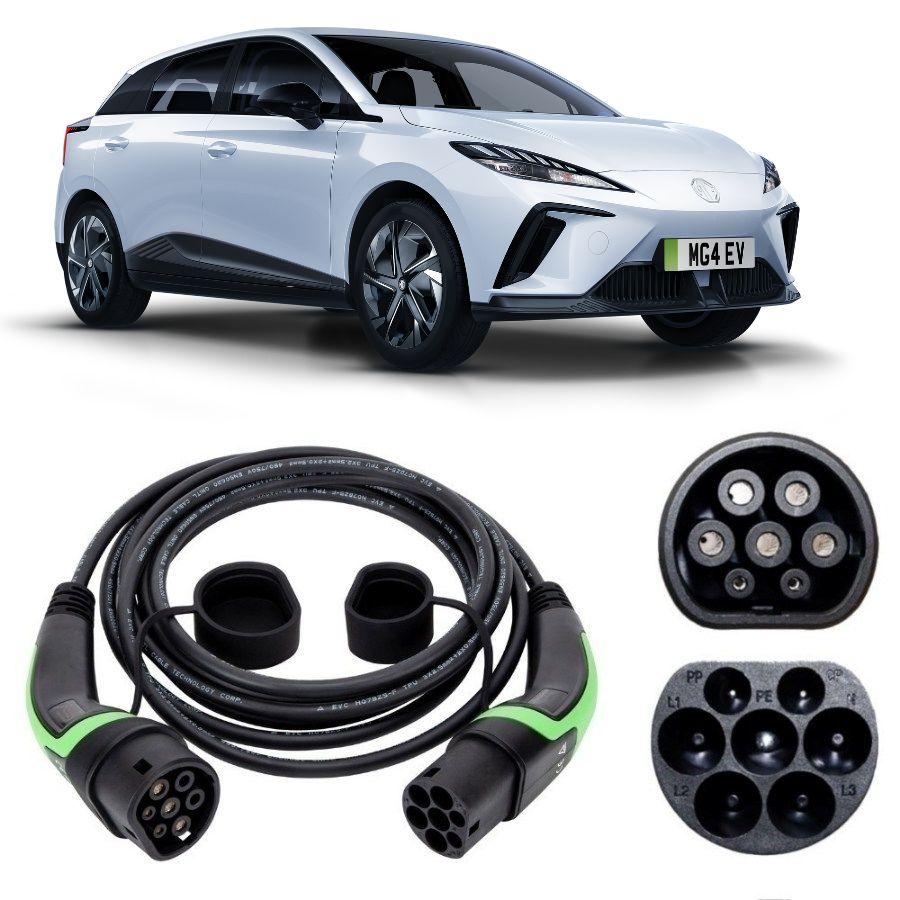

Every MG4 sold in the UK charges through a Type 2 inlet, so an MG4 charging cable is a Type 2 to Type 2 Charging Cable from the 2022 SE Standard Range to the XPower performance model, the 2026 Premium and the new MG4 EV Urban. All of them draw about 7 kW on a single phase, some accept 11 kW on three phase, and the 32A single phase cable is the right buy for the whole range at home. Which MG4s take 11 kW is the awkward part, because MG has moved the three phase charger around the range. From 2022 to 2025 it sat in the 64 kWh and 77 kWh cars, the SE Long Range, Trophy Long Range and Trophy Extended Range, and not in the 51 kWh SE or the XPower. The February 2026 update took it out of the big MG4 altogether, so the Premium Long Range, Premium Extended Range and current XPower are 7 kW cars, while the cheapest MG4, the MG4 EV Urban, arrived with 11 kW on every version. Read the badge and year before paying for three phase.
Full speed at home on every MG4: the 32A single phase cable. Labelled 32amp (7.2kW), it carries 7.4 kW, more than the 7 kW any MG4 draws from one phase, so every version charges at its full home speed on it. A 64 kWh Long Range fills from empty in about 10 hours, gaining roughly 32 miles an hour; a 77 kWh Extended Range takes about 12 hours, a 51 kWh SE 8 hours 15 minutes. Pays on some MG4s, and only away from home: the 32A three phase cable. Its menu label is 32amp - 3 Phase (22kW), and it is the priciest of the four options, worth it for a 2022 to 2025 SE Long Range, Trophy Long Range or Trophy Extended Range, or a 2026 MG4 EV Urban, with a three phase supply at a workplace charge point: the 64 kWh car then charges at 11 kW and finishes in 6 hours 15 minutes instead of 10. On a driveway it gives 7 kW, like the single phase lead. On a 51 kWh SE, an XPower or any 2026 Premium it can never deliver more than 7 kW anywhere, because those cars have nowhere to put three phase power. Too slow for any MG4 battery: the 16A cable. Labelled 16amp (3.6kW), at 3.7 kW it stretches the 64 kWh Long Range to 18 hours 45 minutes and puts back about 17 miles an hour, so a seven hour off peak window returns roughly 119 miles against 224 on the 32A cable. Any of the three also serves at untethered public chargers, the Type 2 posts with no tethered lead; rapid chargers carry their own.
Cable lengths come down to the socket and how you park. The 2022 on MG4 has its charge flap on the rear left corner, passenger side, and is 4.29 metres long. Reverse onto the drive with the home charger on that side and 5 metres is plenty. Drive in nose first, or have the charger on the driver's side, and the cable must run past the whole car and round the tail, so 10 metres is the length to order. The MG4 EV Urban is 4.4 metres long and EV Database, our only source for it, places its port on the front left wing, so measure your own car; a front wing socket usually means nose in works with 5 metres and reversing in wants 10. The 15 and 20 metre cables, 32A single phase only, suit a shared courtyard, a detached garage or a street frontage.
Check the boot before assuming you own a wallbox lead. UK MG4 owners report new cars arriving with a 3 pin granny cable and no Type 2 to Type 2 cable, some dealers and the odd lease company adding a Type 2 lead to the deal, and a spell in 2023 when the reverse happened. MG publishes nothing on the point, and the Type 2 cable it does supply is single phase. Our Type 2 to 3-Pin Charging Cable is the granny cable if yours is missing: 2.3 kW from a normal 13 amp socket, about 10 miles of range an hour on any MG4, a Type B RCD in its control box, and current settings down to 6 amps for an old ring main. IP67 sealed, it can lie across a wet driveway and packs into a bag in the boot as a handy spare. It fills a 51 kWh SE in 25 hours: a lead for the odd night away, not the everyday routine.
The 6.6 kW estate is covered on the MG5 charging cable page, and every MG charging cable EV Cable Shop stocks is gathered under MG EV charging cables. Warranty first: both cables carry a 2 year manufacturer's warranty and a 30 day free return should the length be wrong. The Type 2 to Type 2 cable meets IEC 62196-2, is CE marked, is sealed to IP55 at both connectors and works between -30C and +50C. Its 3-Pin counterpart meets IEC 62752, is CE marked, is sealed to IP67 and works between -30C and +60C. Delivery is free and next working day for UK customers.
Maximum onboard AC charging speed: 11 kW three phase on the 2022 to 2025 SE Long Range and Trophy Long Range, 7 kW single phase on the XPower and the 2026 Premium Long Range
| Cable Type | Max Charge Rate | Empty to Full | Range Added Per Hour | Verdict |
|---|---|---|---|---|
| Type 2 - 1-Phase, 16A (5m / 10m) | 3.7 kW | 18 hours 45 mins | approx. 17 miles | Too slow for this battery |
| Type 2 - 1-Phase, 32A (5m / 10m / 15m / 20m) | 7 kW (car limited) | 10 hours | approx. 32 miles | Best Fit at home |
| Type 2 - 3-Phase, 32A (5m / 10m) | 11 kW (car limited) on 2022 to 2025 SE and Trophy Long Range; 7 kW on XPower and 2026 cars | 6 hours 15 mins at 11 kW; 10 hours at 7 kW | approx. 50 miles at 11 kW; approx. 32 miles at 7 kW | For 22kW posts and workplaces, and only on the 11 kW cars |
| Type 2 to 3-Pin (5m / 10m) | 2.3 kW | 30 hours 15 mins | approx. 10 miles | Ideal backup |
Maximum onboard AC charging speed: 11 kW three phase on the 2023 to 2025 Trophy Extended Range, 7 kW single phase on the 2026 Premium Extended Range
| Cable Type | Max Charge Rate | Empty to Full | Range Added Per Hour | Verdict |
|---|---|---|---|---|
| Type 2 - 1-Phase, 16A (5m / 10m) | 3.7 kW | 22 hours 45 mins | approx. 16 miles | Too slow for this battery |
| Type 2 - 1-Phase, 32A (5m / 10m / 15m / 20m) | 7 kW (car limited) | 12 hours | approx. 30 miles | Best Fit at home |
| Type 2 - 3-Phase, 32A (5m / 10m) | 11 kW (car limited) on the 2023 to 2025 Trophy; 7 kW on the 2026 Premium | 7 hours 45 mins at 11 kW; 12 hours at 7 kW | approx. 48 miles at 11 kW; approx. 30 miles at 7 kW | For 22kW posts and workplaces, 2023 to 2025 cars |
| Type 2 to 3-Pin (5m / 10m) | 2.3 kW | 36 hours 30 mins | approx. 10 miles | Ideal backup |
Maximum onboard AC charging speed: 7 kW single phase
| Cable Type | Max Charge Rate | Empty to Full | Range Added Per Hour | Verdict |
|---|---|---|---|---|
| Type 2 - 1-Phase, 16A (5m / 10m) | 3.7 kW | 15 hours 30 mins | approx. 16 miles | Slow for a daily charge |
| Type 2 - 1-Phase, 32A (5m / 10m / 15m / 20m) | 7 kW (car limited) | 8 hours 15 mins | approx. 30 miles | Best Fit at home |
| Type 2 - 3-Phase, 32A (5m / 10m) | 7 kW (car limited) | 8 hours 15 mins | approx. 30 miles | Nothing to gain on this car |
| Type 2 to 3-Pin (5m / 10m) | 2.3 kW | 25 hours | approx. 10 miles | Ideal backup |
The MG4 EV Urban, on sale since February 2026, is not tabled because its figures rest on fewer sources. EV Database gives 52.8 kWh usable and 258 miles WLTP for the 54 kWh Long Range, 41.9 kWh usable and 201 miles for the 43 kWh Standard Range, and 11 kW AC on both, which the RAC's road test repeats. At 7 kW the Long Range Urban takes about 8 hours 30 minutes from empty and the Standard Range 6 hours 45 minutes, gaining about 34 miles an hour; at 11 kW on a three phase post those fall to 5 hours 30 minutes and 4 hours 15 minutes. The single phase figure of 7 kW is MG's own; EV Database lists 6.6 kW and owners read 6.6 to 6.9 kW on a wallbox display, so a full charge may run twenty minutes longer than shown. Battery capacities and WLTP miles are MG UK's published figures for each pack. A frozen windscreen in the morning and a fast run up the A1 will both knock miles off the range column.
We pride ourselves on the quality of our cables. Every cable comes with a 2 year manufacturer's warranty, and the jacket will survive being driven over, though we would rather you did not make a habit of it.
Protection against pressure
Our cables are safe to use whatever the weather. Type 2 to Type 2 cables are IP55 rated, CE marked, and work from -30°C to +50°C. Type 2 to 3 pin cables are IP67 rated, CE marked and work from -30°C to +60°C.
Protection against temperature
Our cables fit any electric car or plug-in hybrid with a Type 2 inlet, including Audi, BMW, Volvo, Mini, Mercedes, Kia, Hyundai, Volkswagen, Smart and Toyota. Use our car reg checker to confirm your car.
Compatible with all Type 2 cars
The 2022 to 2025 MG4 SE Long Range, Trophy Long Range and Trophy Extended Range, and every version of the 2026 MG4 EV Urban, accept 11 kW on three phase AC. The 51 kWh SE Standard Range, the XPower and the 2026 MG4 Premium Long Range and Premium Extended Range carry a single phase charger of about 7 kW, whatever the model year. MG's brochures mostly quote the 7 kW home figure alone, which is why the 11 kW is so often missed, but owners of 64 kWh and 77 kWh Long Range cars measure 9.5 to 10.5 kW at three phase posts. If you are unsure, look inside the Type 2 inlet: an 11 kW MG4 has metal pins in the two lower L2 and L3 positions, a 7 kW car has empty holes there.
Yes. An 11 kW MG4 draws about 7 kW from a single phase, which is all most UK homes can supply, and the 32A single phase Type 2 to Type 2 cable carries 7.4 kW, so it hands the car everything the supply can give. A 64 kWh MG4 Trophy Long Range charges from empty in about 10 hours on it and a 77 kWh Trophy Extended Range in about 12. The 11 kW figure only comes into play at a three phase charge point, and there the three phase cable is the one to plug in.
None at all. An MG4 SE Standard Range, an MG4 XPower and any 2026 MG4 Premium have a single phase onboard charger, so the 32A three phase cable delivers about 7 kW into them on a driveway and the same 7 kW at a three phase post, exactly matching the cheaper single phase cable. The extra two live pins in the cable have nothing to feed on those cars. The three phase lead is only worth paying for on the 11 kW MG4s, and even then only where three phases reach the socket.
Roughly 224 miles on a 64 kWh MG4 Long Range across a seven hour off peak window at 7 kW, about 210 miles on a 77 kWh Extended Range or a 51 kWh SE, and about 238 miles on a 54 kWh MG4 EV Urban, all on the 32A single phase cable. Those seven hours put around 43 kWh into the battery, so an SE Standard Range is full from almost any starting point, a Long Range is full from about a quarter and an Extended Range from about 40 percent. On the 16A cable the same window returns 112 to 126 miles.
Usually not, going by UK owner reports, since MG UK publishes no statement on what comes with an MG4. Most new MG4s arrive with a 3 pin granny cable only, some dealers add a Type 2 to Type 2 cable as part of the deal, and for a few months in 2023 cars came with a Type 2 lead instead because granny cables were scarce. The MG Type 2 cable, where supplied, is single phase. A used MG4 may have neither, so check before the home charger is fitted.
A 5 metre cable suits an MG4 reversed onto a drive with the wallbox on the passenger side, near the rear left charge flap of a car 4.29 metres long. A 10 metre cable is the one for nose in parking, a wallbox on the driver's side, or a kerbside charge, because the lead then has to travel past the full length of the hatchback and round the back. The MG4 EV Urban's socket sits on the front left wing according to EV Database, which reverses that advice: nose in is the short run and reversing in is the long one.
Showing both cable types. Choose a cable type above and this section will show just that specification.
Showing the specification for the cable type you have selected. Compare both cable types.
| Type 2 to Type 2 | Type 2 to 3 pin | |
|---|---|---|
| Charges from | A home wallbox or a public charge point | Any standard UK 3 pin socket, no wallbox needed |
| Max power | 3.7 kW at 16A, 7.4 kW at 32A, 22 kW on three phase | 2.4 kW |
| Speed at home | 7.4 kW on a 32A cable. UK homes are single phase, so an 11 kW or 22 kW car still draws 7.4 kW | 2.4 kW |
| Range per hour | About 12 miles at 3.7 kW, 25 miles at 7.4 kW | About 8 miles |
| Weatherproof rating | IP55 | IP67 |
| Temperature | -30°C to +50°C | -30°C to +60°C |
| Built to | IEC 62196-2:2016 2-IIb | IEC 62752:2016 / COR1:2019 |
| Certified | CE | CE |
| Best for | Your everyday charging cable | Backup, and away from home where there is no wallbox |
| Choose this | Select Type 2 to Type 2 for the MG4 | Select Type 2 to 3 pin for the MG4 |
| Full range | All Type 2 to Type 2 cables | All Type 2 to 3 pin cables |

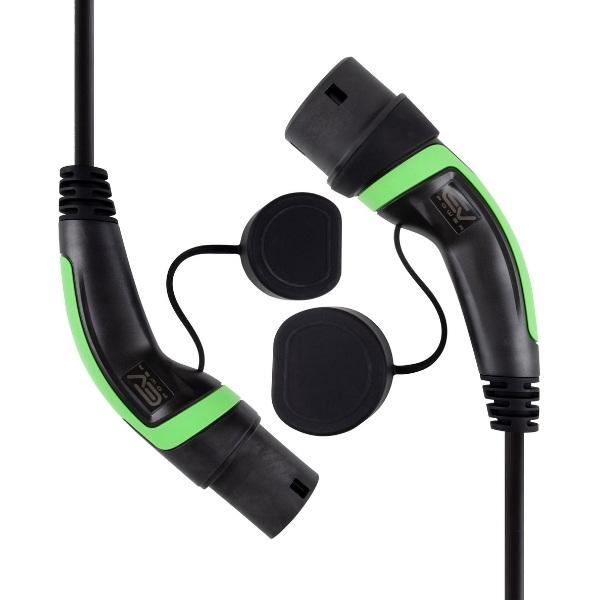

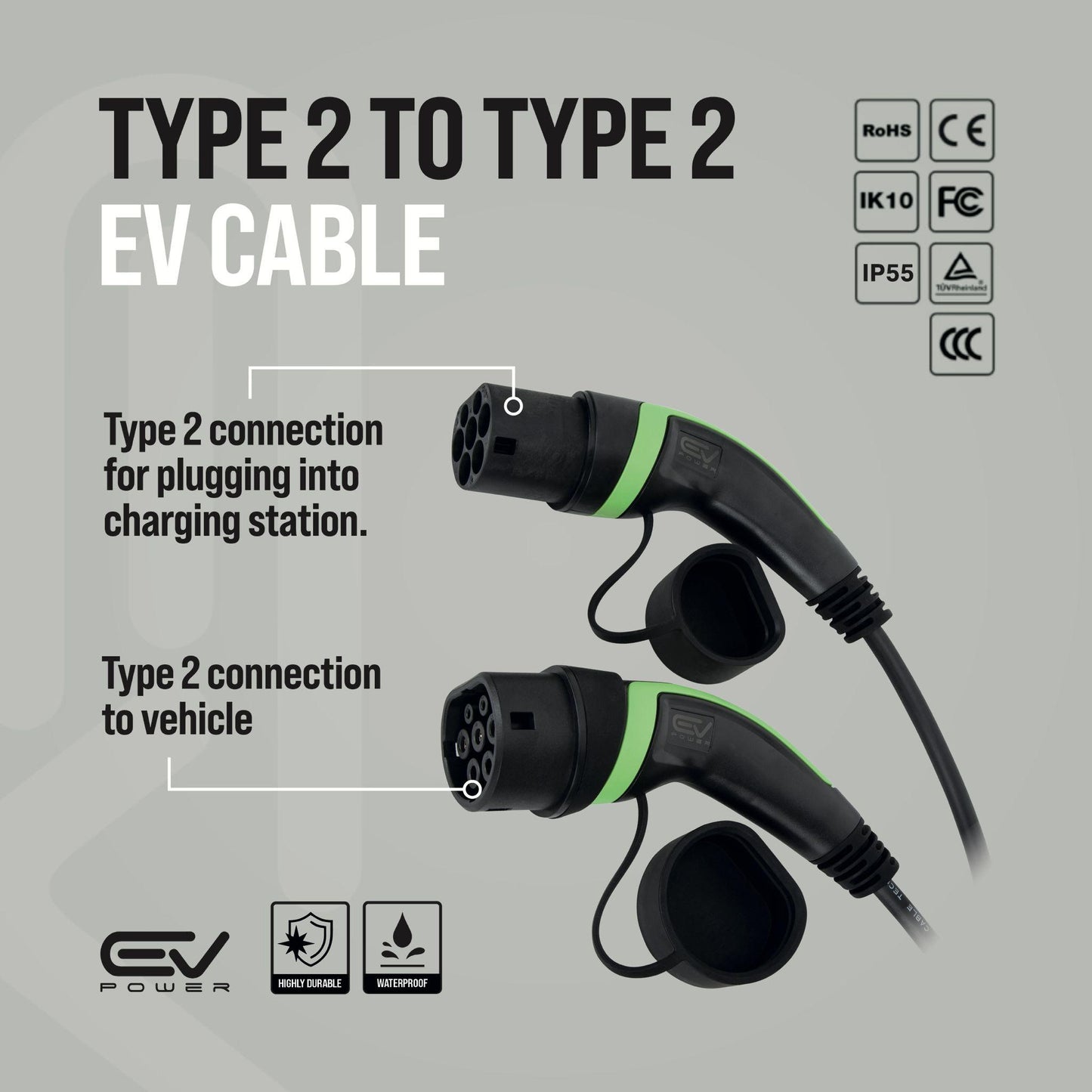

| Connector type | Type 2 to Type 2 (IEC 62196-2:2016 2-IIb, Mennekes) |
| Rated current | 16A or 32A single phase, or 32A three phase |
| Max power | 3.7 kW at 16A, 7.4 kW at 32A, 22 kW on three phase |
| Speed at home | 7.4 kW. UK homes are single phase, so an 11 kW or 22 kW car still draws 7.4 kW |
| Range per hour | About 12 miles at 3.7 kW, 25 miles at 7.4 kW |
| Slower supplies | Fine. Charging runs at the lowest limit of the car, the charge point and the cable, so a 32A cable works normally on a 16A supply |
| Voltage | AC 250V single phase, AC 400V three phase, 50Hz |
| Signal current | 2A at 30V |
| Full range | All Type 2 to Type 2 cables |
| Lengths | 5m, 10m, 15m, 20m |
| Conductors | 16A: 3 x 2.5mm² plus 2 x 0.5mm² 32A single phase: 3 x 6mm² plus 2 x 0.5mm² 32A three phase: 5 x 6mm² plus 1 x 0.5mm² |
| Insulation | XLPO |
| Sheath | TPU |
| Shell | Flame retardant thermoplastic, UL94-V0 |
| Pins | Copper alloy, silver plated |
| Colour | Black cable, green and black connectors |
| Weatherproof rating | IP55 in use |
| Temperature | -30°C to +50°C |
| Mechanical life | Over 1,000 connections |
| Impact | Survives a 1m drop and a 2 tonne vehicle driving over it |
| Plug force | Under 100N |
| Insulation resistance | Over 1,000 MΩ at DC 500V |
| Withstand voltage | 2,500V |
| Contact impedance | 0.5 mΩ maximum |
| Pin temp rise | Under 50K |
| Built to | IEC 62196-2:2016 2-IIb |
| Certified | CE |

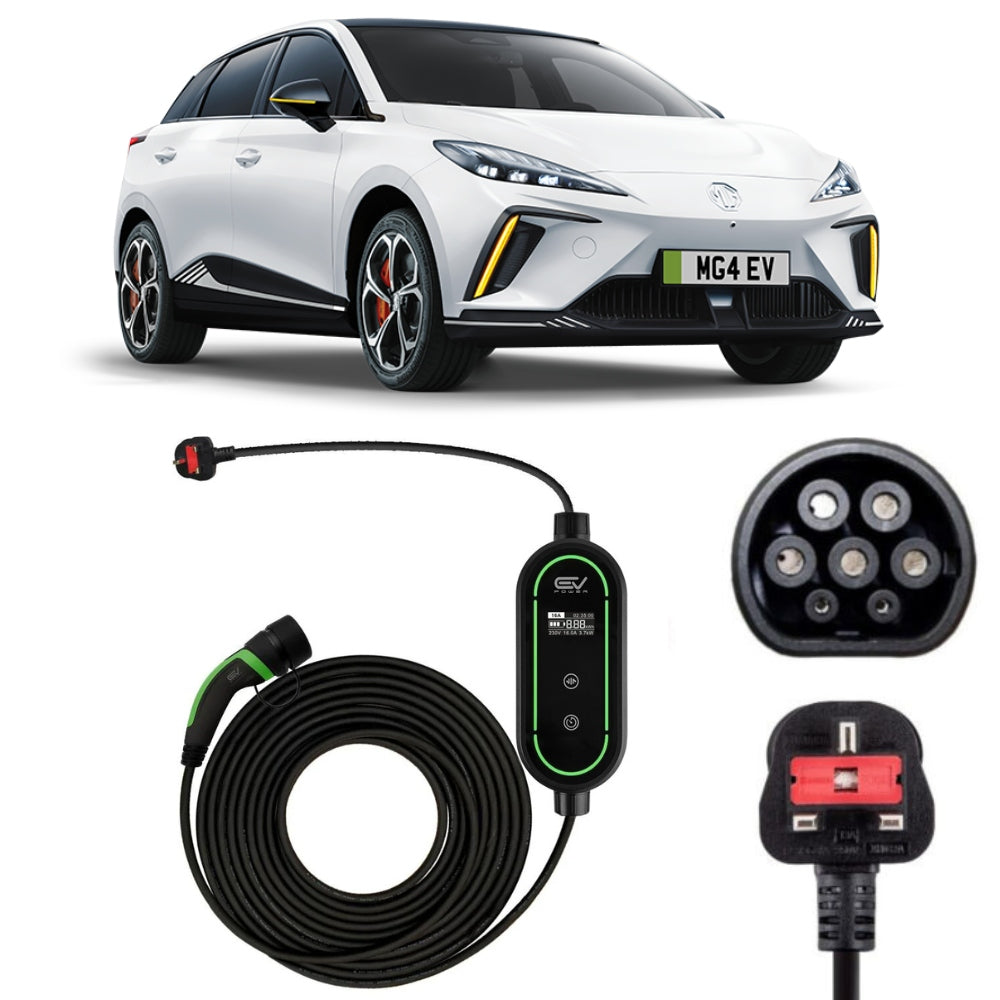

| Connector type | Type 2 to 3 pin, BS1363 13A plug |
| Socket needed | Any standard UK 3 pin socket. No wallbox needed |
| Max power | 2.4 kW |
| Current | 6A to 13A, set on the control box |
| Voltage | 230V AC, 50Hz |
| Range per hour | About 8 miles |
| Overnight | About 100 miles in 12 hours |
| Full range | All Type 2 to 3 pin cables |
| Weatherproof rating | IP67 |
| RCD | Built in, Type B |
| Protection | Over and under voltage, overload, short circuit, earth leakage, over temperature and lightning surge |
| Built to | IEC 62752:2016 / COR1:2019 |
| Certified | CE |
| Display | OLED screen: charging time, energy used, live voltage, current and power, and lifetime total |
| Controls | Touch key, LED status light, adjustable current, delay timer |
| Box size | 200 x 90 x 52 mm |
| Weight | Up to 2.1 kg |
| Cooling | Natural air |
| Standby power | Under 0.5 W |
| Connectivity | None. No WiFi, Bluetooth, 4G or Ethernet |
| Lengths | 5m, 10m, 15m |
| Temperature | -30°C to +60°C |
| Humidity | Up to 95% |
| Max altitude | 2,000m |
| Materials | Tempered glass and PC control box |
| Colour | Black |

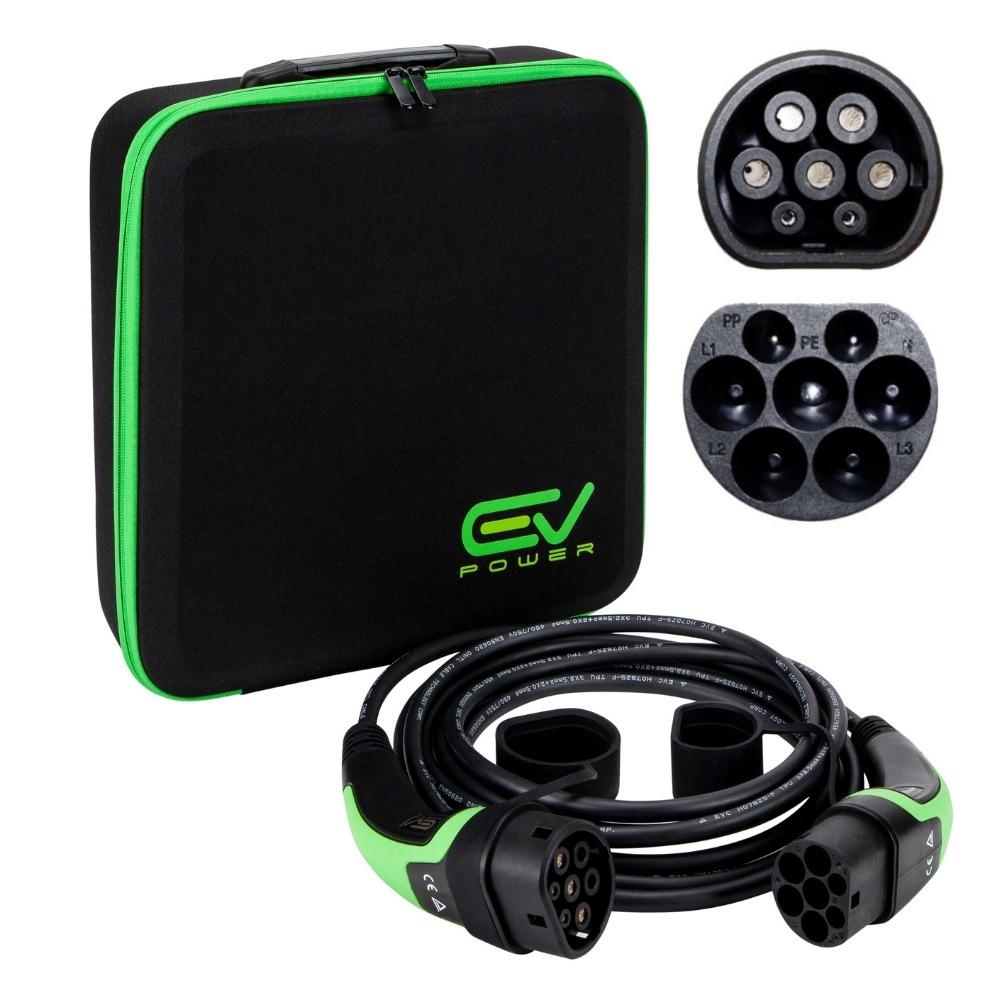

| In the box | Charging cable only. The premium storage carry bag is sold separately |
| Warranty | 2 year warranty |
| Delivery | Free next working day UK delivery |
This is the one MG4 fact worth reading properly, because most spec websites get it wrong and it costs owners money. The entry SE Standard Range has a 6.6 kW single-phase charger. Every other MG4, the SE Long Range, Trophy, Extended Range and XPOWER, has an 11 kW three-phase charger. EV Database lists 6.6 kW for all of them, which is incorrect, and owners on the MG forums have measured Long Range cars pulling around 10 kW on three phase. Why it matters: if you have a Long Range or Trophy and you plug a single-phase cable into a 22 kW three-phase public post, you get roughly a third of the power available to you. At home on a single-phase supply every MG4 charges at around 7 kW, so a standard 32A cable is right for the driveway.
| Badge | Years | Battery | Connector | Max AC charge speed | Cable we recommend |
|---|---|---|---|---|---|
| MG4 SE Standard Range, 51 kWh | 2022 to 2026 | 50.8 kWh usable | Type 2, plus CCS rapid at around 87 kW | 6.6 kW, single phase only. A three-phase cable will not help this car | Type 2 to Type 2, 32A single phase |
| MG4 SE Long Range and Trophy, 64 kWh | 2022 to 2026 | 61.7 kWh usable | Type 2, plus CCS rapid at around 140 kW | 11 kW three phase, which is about 7 kW on a UK home supply | Type 2 to Type 2, 32A for home. 32A three phase to get the full speed at a three-phase public post |
| MG4 Trophy Extended Range, 77 kWh | 2023 to 2026 | 74.4 kWh usable | Type 2, plus CCS rapid at around 144 kW | 11 kW three phase | Type 2 to Type 2, 32A for home. 32A three phase for public three-phase posts |
| MG4 XPOWER | 2023 to 2026 | 61.7 kWh usable | Type 2, plus CCS rapid | 11 kW three phase | Type 2 to Type 2, 32A for home. 32A three phase for public posts |
| MG4 Premium and Urban, new generation | 2026 onwards | 61.7 kWh usable, 64 gross | Type 2, plus CCS rapid at 154 kW | Reported as 6.6 kW, but from the same source that got the previous car wrong. Please check your handbook | Type 2 to Type 2, 32A |
Free Next Working Day Delivery
Use our car reg compatibility checker to make sure your getting the right charger for you vehicle.
Cable Type:
How do I Choose?The cable connection depends on what connection type your car accepts. If you don't know, use our handy car reg checker.
Cable Length:
Sizing guideWe offer different length cables to suit your needs, whether you park next to your charger at home or at the office.
Rated Power (Charge Speed):
How do I Choose?Rated power is the fastest the cable can charge. Match it to your car and your charge point. A higher rated cable still works at every lower speed.

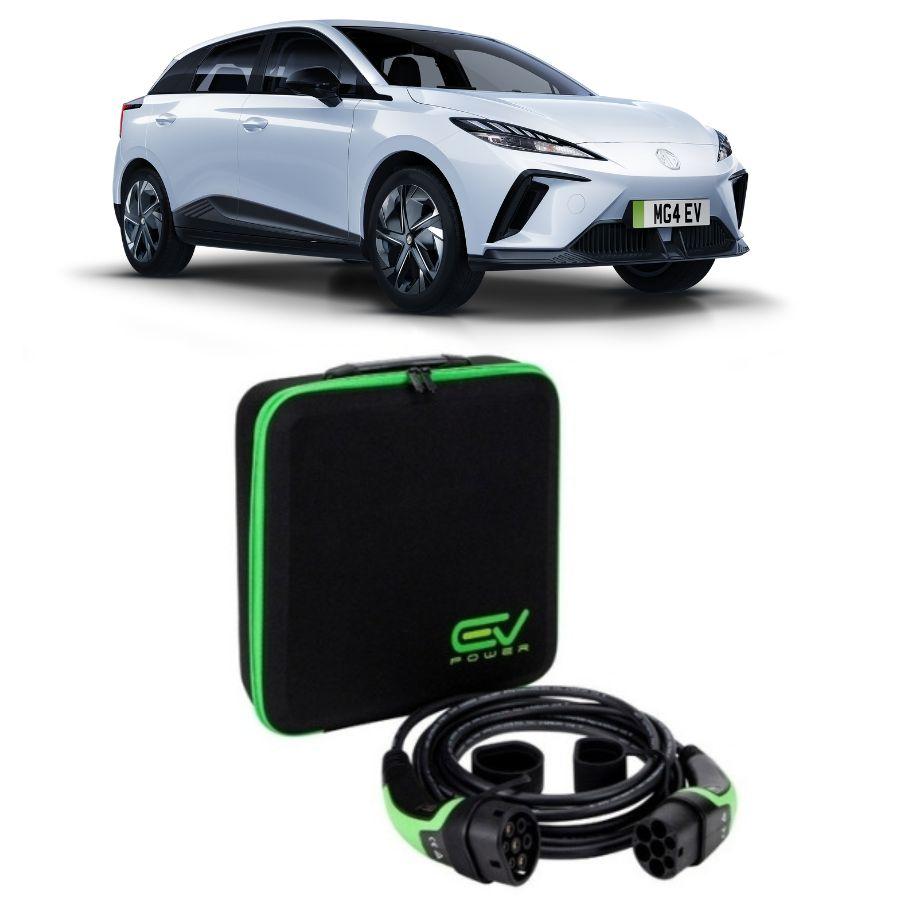

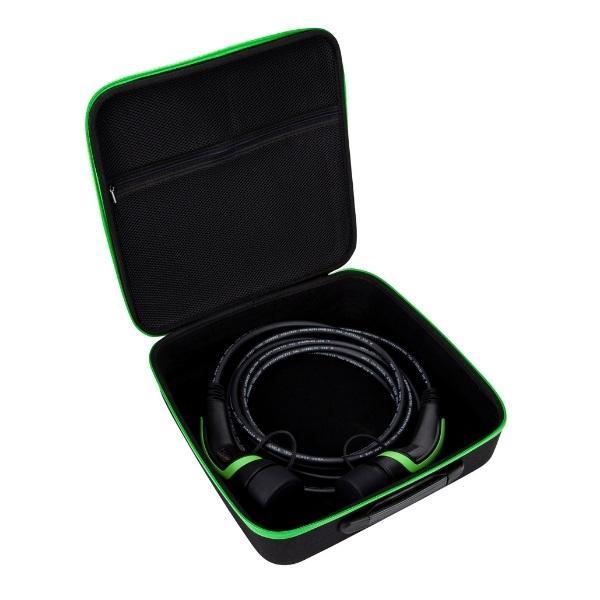

Accessory Add-Ons
We offer a range of products to help store and transport your charging cable. Choose from the accessories below:
A charging cable that connects electric vehicles (EVs) with a Type 2 connector to charging points is also equipped with a Type 2 socket. It supports faster charging speeds and is commonly used across Europe for EVs with this standard connection.
This cable allows electric vehicles with a Type 2 socket to charge from a standard UK 3-pin domestic outlet. It provides a slower charge but is useful for home or emergency charging when dedicated charging stations aren't available.
A cable used to extend the reach of a Type 2 charging cable. It's helpful when the existing cable is too short to connect an electric vehicle to the charging point, providing more flexibility in parking.
A fixed charging cable attached to a charging point, designed for electric vehicles with a Type 2 socket. The tethered design eliminates the need to carry a separate cable, offering convenience for regular charging at home or work.
A charging cable that connects electric vehicles with a Type 1 socket to charging points equipped with a Type 2 outlet. This allows EVs with the older Type 1 standard to use more modern charging infrastructure.
This cable enables electric vehicles with a Type 1 connector to charge from a standard UK 3-pin household outlet. It's suitable for slower charging at home when dedicated EV charging points aren't accessible.
A 5M charging cable is the shortest length that we offer. It is a great option if you can park close to the charge point and do not need much length to reach your car.
A 10M charging cable is the most popular length. It allows you to have enough flexibility whilst still being easy enough to move. This is a great option if you cannot park close to the electricity supply.
A 15M charging cable is a great choice if you need some extra flexibility, i.e. get past another car or reach the other end of a driveway. The length of the cable does not affect the charging speed.
A 20M charging cable is the longest cable that we currently offer. 20M reaches the vast majority of locations where you would want to charge your car. Always use one continuous cable. Never join two charging cables together and never charge through an extension lead, because the join is where heat builds up.
The choice if you will charge from a standard UK 3 pin socket. It runs at the most the socket can safely supply, and the control box lets you turn the current down for a slower, gentler charge overnight or on an older circuit.
A 16amp cable will be able to charge at 3.7kW. This is the cheapest product if your car's max charge speed is 3.7kW. If you have two electric cars or are looking to purchase another it might be worth considering a faster charging cable as this could limit charge speeds moving forward.
A 32amp charging cable will be able to charge at 7.4kW, which is the most a single phase UK home supply can deliver. A 32amp cable also charges at every lower speed (for example 16amp, 3.7kW), so it is the right choice if your home charge point is 7.4kW or you mostly charge at home.
A 32amp 3-phase charging cable will be able to charge at all speeds up to 22kW, so the cable never limits your charge speed at home or in public. It is also capable of charging at all lower charge speeds.
