£124.99£150.99

Cable Type:

Cable Length:

Rated Power (Charge Speed):

Accessory Add-Ons

Free Next Working Day Delivery

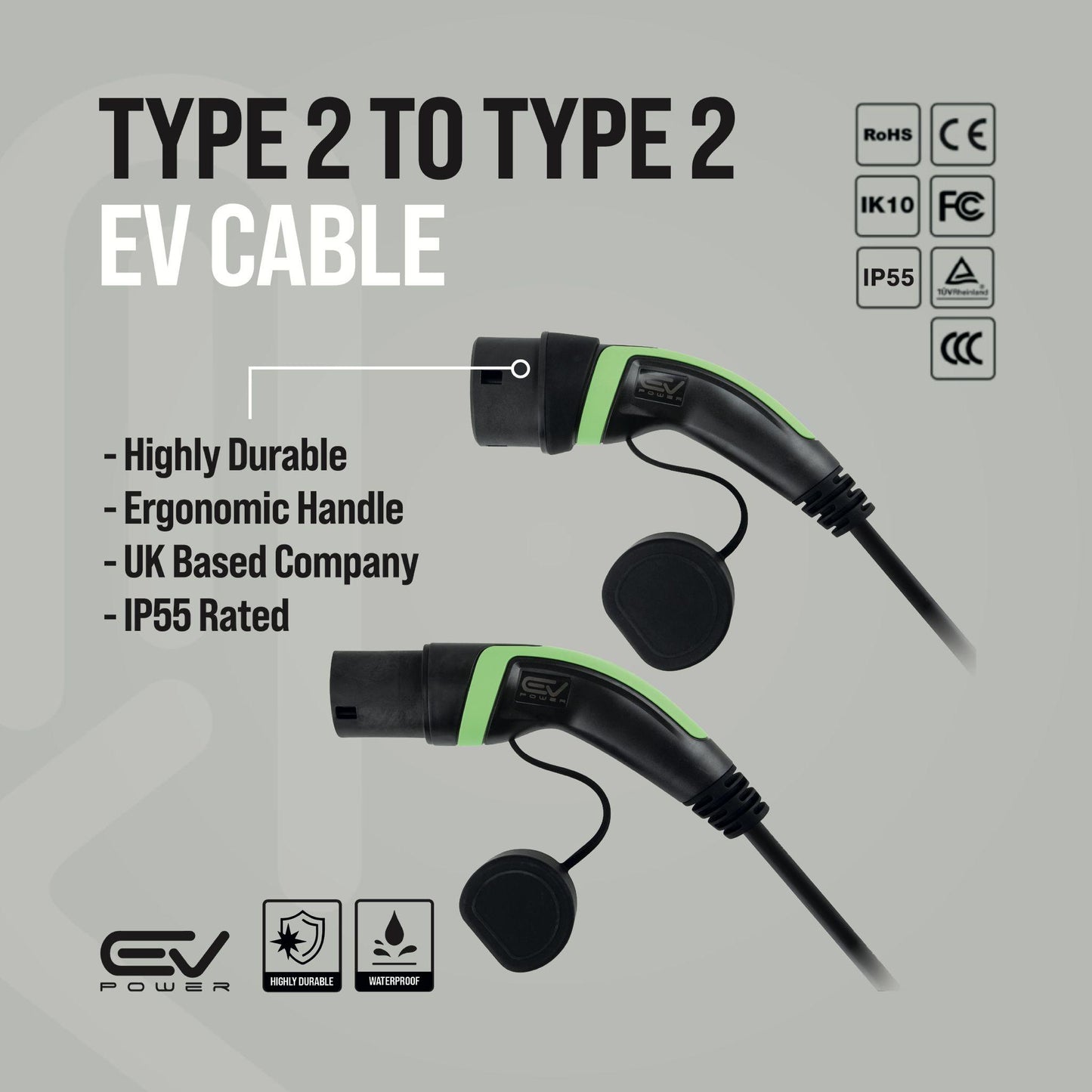

  • Type Type 2 to Type 2 Charging Cable
  • Length 10M
  • Rated Power 16amp (3.6kW)
  • Warranty 2 Years
  • Accessories No Add-Ons

Check compatibility

Use our car reg compatibility checker to make sure your getting the right charger for you vehicle.

Product Description

EV Cable Shop recommendation

Type 2 to Type 2, 32A single phase (5m / 10m / 15m / 20m)

The Nissan Leaf accepts up to 6.6 kW on AC. A British home supply is single phase and stops at 7.4 kW, so this is the fastest charge the car can accept anywhere. A three-phase cable has no extra phases to use and costs more for nothing.

Check which Leaf you have. The 2018 on Leaf uses a Type 2 inlet and takes the cable above. The 2011 to 2017 car is Type 1, and the Type 1 to Type 2 lead on this page is the one it needs.

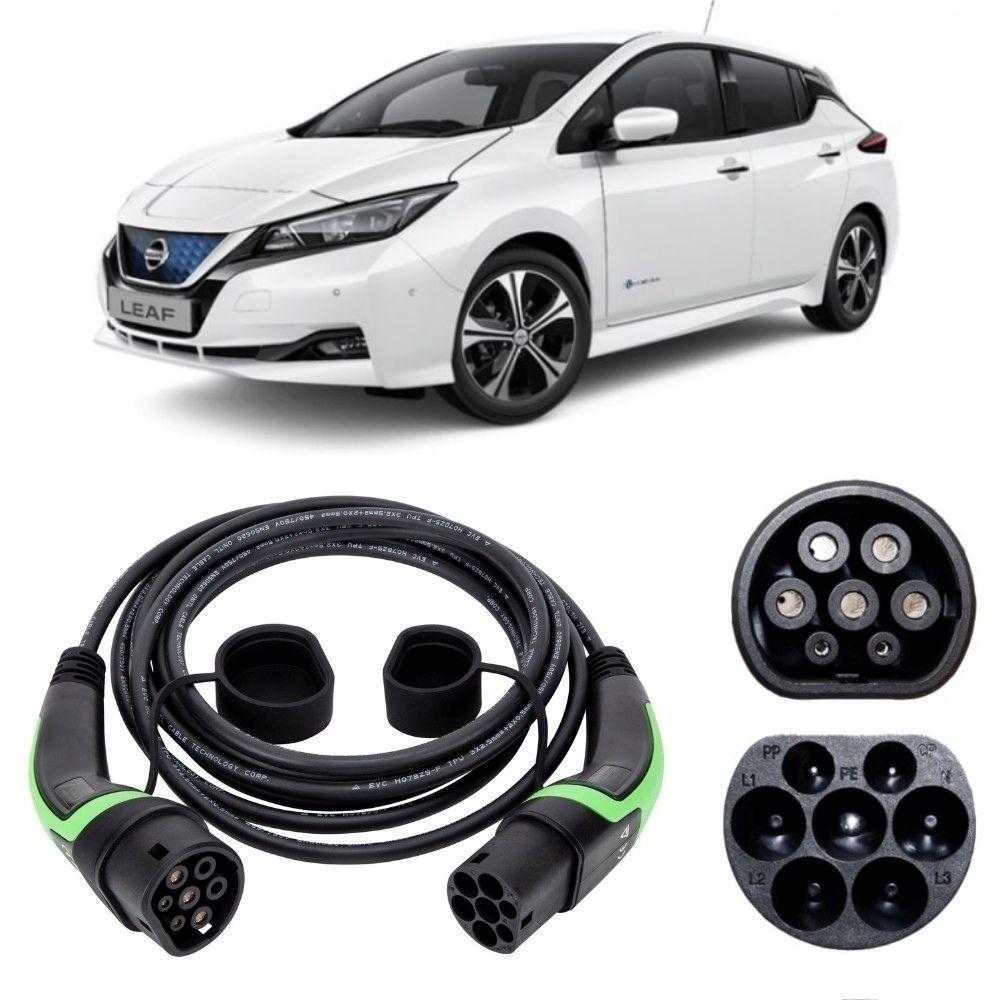

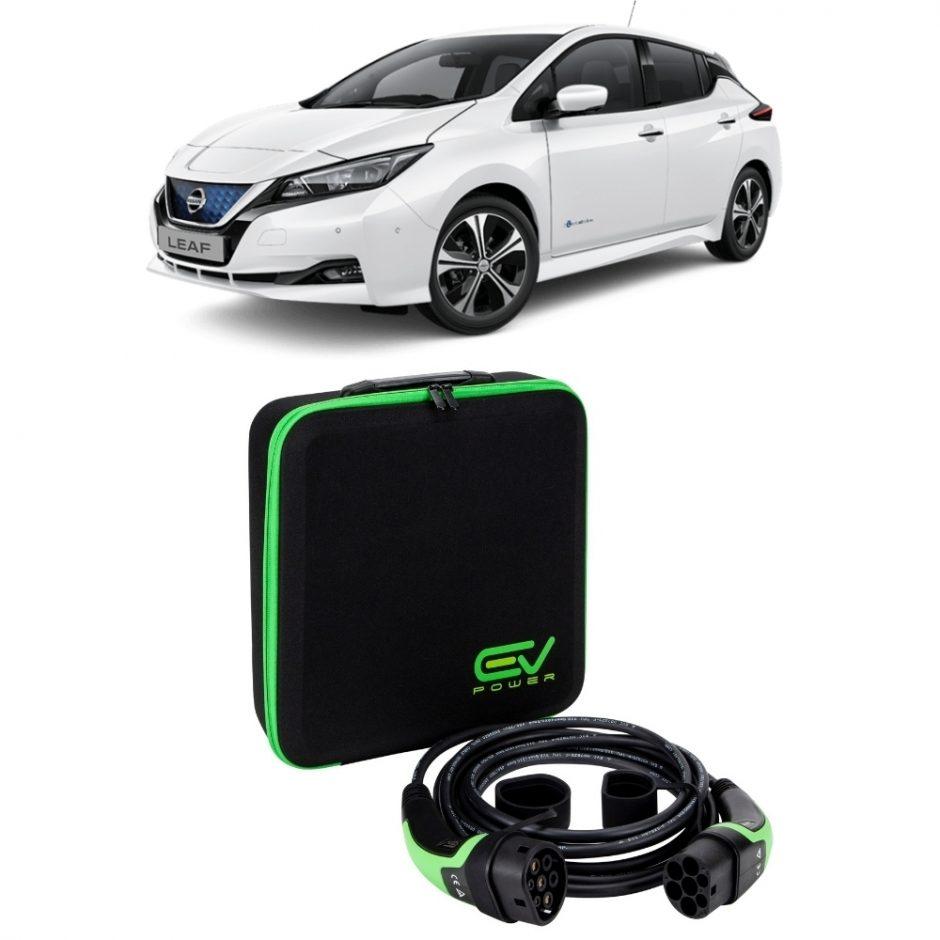

A Nissan Leaf charging cable is a Type 2 to Type 2 lead on every Leaf sold in the UK since 2018, from the 40 kWh car and the 62 kWh Leaf e+ to the third generation Leaf on sale since 2026. What changed over those years is not the plug but the onboard charger behind it: 6.6 kW on the 2018 to 2024 car, 11 kW on the new one, which takes 7.4 kW from a home wallbox. The 2011 to 2017 first generation has a Type 1 inlet and takes the Type 1 to Type 2 cable.

Pick your Nissan Leaf charging cable

The Type 2 to Type 2 cable is also the lead you carry for untethered public charge points, so it earns its place in the boot as well as on the drive. The 15m and 20m cables, both 32A single phase, cover street parking, a wallbox on a detached garage, or a drive with another car parked in front. The Type 2 to 3 Pin cable has an adjustable current setting for older wiring and a built in RCD, and adds about 10 miles of range an hour to a 40 kWh Leaf and 12 to the 2026 car.

Why buy your Nissan Leaf cable from EV Cable Shop

  • Rated Excellent on Trustpilot from over 600 customer reviews. Read them here.
  • Free next working day UK delivery, dispatched the same day on orders placed before 2pm.
  • Free 30 day exchange. Ordered the wrong length? Send it back and we swap it at no cost.
  • 2 year manufacturer's warranty on every cable, all CE marked and built to IEC standards.
  • Matched to your car, not upsold. We tell you which cable your Leaf can actually use, so you pay for the speed you get and nothing more.
  • A UK family business.

Every cable we make for the brand is in Nissan EV charging cables, and the Ariya has its own Nissan Ariya charging cable page.

Nissan Leaf Charging Times by Generation

Leaf 75 kWh, 2026 on, Engage, Engage+, Advance and Evolve, 75.1 kWh usable, 387 miles WLTP on Engage

Maximum onboard AC charging speed: 11 kW where three phases are available, 7.4 kW on a single phase supply

Cable Type Max Charge Rate Empty to Full Range Added Per Hour Verdict
Type 2 - 1-Phase, 16A (5m / 10m) 3.7 kW 23 hours approx. 19 miles Too slow for this battery
Type 2 - 1-Phase, 32A (5m / 10m / 15m / 20m) 7.4 kW 11 hours 30 mins approx. 38 miles Best Fit at home
Type 2 - 3-Phase, 32A (5m / 10m) 11 kW (car limited) 7 hours 45 mins approx. 57 miles For 22kW posts and workplaces
Type 2 to 3-Pin (5m / 10m) 2.3 kW 37 hours approx. 12 miles Ideal backup

Leaf 40 kWh, 2018 to 2024, 39 kWh usable, 168 miles WLTP

Maximum onboard AC charging speed: 6.6 kW single phase (3.6 kW on Visia and Acenta cars without the optional charger)

Cable Type Max Charge Rate Empty to Full Range Added Per Hour Verdict
Type 2 - 1-Phase, 16A (5m / 10m) 3.7 kW 12 hours approx. 16 miles Leaves 2.9 kW unused
Type 2 - 1-Phase, 32A (5m / 10m / 15m / 20m) 6.6 kW (car limited) 6 hours 45 mins approx. 28 miles Best Fit at home
Type 2 - 3-Phase, 32A (5m / 10m) 6.6 kW (car limited) 6 hours 45 mins approx. 28 miles Same speed, higher price
Type 2 to 3-Pin (5m / 10m) 2.3 kW 19 hours 15 mins approx. 10 miles Ideal backup

Leaf e+ 62 kWh, 2019 to 2024, 59 kWh usable, 239 miles WLTP

Maximum onboard AC charging speed: 6.6 kW single phase

Cable Type Max Charge Rate Empty to Full Range Added Per Hour Verdict
Type 2 - 1-Phase, 16A (5m / 10m) 3.7 kW 18 hours approx. 15 miles Too slow for this battery
Type 2 - 1-Phase, 32A (5m / 10m / 15m / 20m) 6.6 kW (car limited) 10 hours approx. 27 miles Best Fit at home
Type 2 - 3-Phase, 32A (5m / 10m) 6.6 kW (car limited) 10 hours approx. 27 miles Same speed, higher price
Type 2 to 3-Pin (5m / 10m) 2.3 kW 29 hours approx. 9 miles Ideal backup

The 52 kWh version of the 2026 Leaf, offered in Engage and Advance grades from July 2026 with up to 280 miles WLTP, has the same 11 kW charger and fills in 8 hours on the 32A single phase cable, 5 hours 30 minutes at an 11 kW post and 16 hours 15 minutes on the 16A lead, adding about 39 miles an hour at 7.4 kW. First generation cars carry a Type 1 inlet and predate the WLTP test, so there is no honest miles per hour figure for them; a 30 kWh car with the 6.6 kW option takes about 4 hours 45 minutes on the Type 1 to Type 2 32A cable, and a 24 kWh car with the standard 3.3 kW charger about 7 hours 30 minutes on either Type 1 lead. Usable capacities in the tables are EV Database measurements, Nissan quotes 75 kWh and 52 kWh usable for the new models, and the WLTP miles are Nissan UK's figures for the longest legged grade of each battery. As with any electric vehicle, sub-zero nights and a dual carriageway commute both pull the miles per hour figure down.

Features

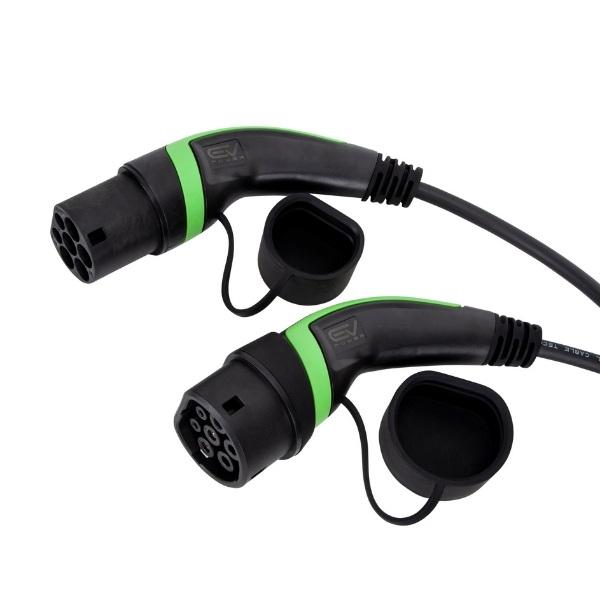

Type 2 charging cable connector
Durable

We pride ourselves on the quality of our cables. Every cable comes with a 2 year manufacturer's warranty, and the jacket will survive being driven over, though we would rather you did not make a habit of it.

Run-over Proof

Protection against pressure

All Weather

Our cables are safe to use whatever the weather. Type 2 to Type 2 cables are IP55 rated, CE marked, and work from -30°C to +50°C. Type 2 to 3 pin cables are IP67 rated, CE marked and work from -30°C to +60°C.

All weather rated

Protection against temperature

Versatile

Our cables fit any electric car or plug-in hybrid with a Type 2 inlet, including Audi, BMW, Volvo, Mini, Mercedes, Kia, Hyundai, Volkswagen, Smart and Toyota. Use our car reg checker to confirm your car.

Universal Charger

Compatible with all Type 2 cars

Information

Technical Spec Sheet
Download
Warranty
Download
User Manual
Download

Videos

Impact Resistance

Our EV Charging Cables are designed for high durability, capable of withstanding drops from a height of 2 metres. The video above demonstrates the impressive impact resistance of our cables.

Waterproof Design

Our EV Charging Cables are built to perform in all weather conditions. As showcased in the video above, these cables are fully waterproof, ensuring reliable charging even in wet environments.

FAQs

Nissan Leaf Charging Cable FAQs

Which Nissan Leaf charging cable fits my year of car?

A Type 2 to Type 2 charging cable fits every Nissan Leaf registered from 2018 onwards, including the 40 kWh car, the 62 kWh Leaf e+ and the 2026 third generation Leaf, and a Type 1 to Type 2 charging cable fits the 2011 to 2017 first generation. Compatibility is decided by the year, not the trim, and no adapter is supplied in either direction. Both connectors sit behind the flap in the nose on the older cars, so the flap position tells you nothing; the pin count does. Seven pins with two flat edges on top is Type 2, five pins with a latch is Type 1.

Is the 16A cable enough for a 6.6 kW Nissan Leaf?

It works, but it leaves nearly 3 kW of the Nissan Leaf's own charger unused. A 16A Type 2 to Type 2 cable holds a 6.6 kW Leaf to 3.7 kW, so the 40 kWh battery takes 12 hours from empty instead of 6 hours 45 minutes on the 32A cable, and a seven hour cheap rate window recovers about 112 miles rather than about 199. On a car that can only ever take 6.6 kW, the 32A single phase lead is the one purchase that unlocks all of it.

Does the 2026 Nissan Leaf charge faster at home than the 2018 to 2024 car?

Yes, by 0.8 kW. The 2026 Nissan Leaf has an 11 kW onboard charger and draws the full 7.4 kW a single phase home wallbox can supply, where a 2018 to 2024 Leaf stops at 6.6 kW. That is about 38 miles of range an hour on a 75 kWh 2026 Leaf against 28 on a 40 kWh 2018 car, and both figures come through the same 32A single phase Type 2 to Type 2 cable. The larger gap is at a three phase post, where the 2026 car takes 11 kW and the older car is still 6.6 kW.

Does a three phase cable do anything on a Nissan Leaf?

On a 2018 to 2024 Nissan Leaf, nothing, anywhere: its 6.6 kW charger is single phase, so a 32A three phase cable delivers the same 6.6 kW as the 32A single phase cable at home and at a workplace. On a 2026 Nissan Leaf the three phase cable pays only at a genuine three phase supply, where the car reaches its 11 kW ceiling and a 75 kWh battery fills in 7 hours 45 minutes instead of 11 hours 30 minutes. On a driveway both cables give a 2026 Leaf 7.4 kW.

Did my Nissan Leaf come with an EV charging cable?

A new 2026 Nissan Leaf does: Nissan's UK specification page lists a 5 metre Mode 3 32A charging cable as standard, which is a Type 2 to Type 2 lead for a wallbox or public post, and no 3-pin lead. For a 2018 to 2024 Nissan Leaf, UK guides say a Type 2 cable and a 3-pin cable were usually supplied new, but a used Leaf arrives with whatever the previous owner left, and the 3-pin unit is the one most often missing. Check the boot before you order rather than assuming.

How long a cable does a Nissan Leaf need with the socket in the nose?

Five metres covers most single drives on a 2011 to 2024 Nissan Leaf, because the socket is in the centre of the front bumper and a car driven in forwards stops with it a metre or so from a wallbox on either side wall. Ten metres is the answer when you reverse in, when the Leaf parks behind another car, or when the wallbox is on a garage rather than the house. The 2026 Nissan Leaf moves the socket to the front wing, so for that car measure from the flap to the charger with the car parked the way you leave it, and choose 10 metres if the run crosses the front of the car.

Specification

Technical Specification

Showing both cable types. Choose a cable type above and this section will show just that specification.

Which cable should you choose
Type 2 to Type 2 Type 2 to 3 pin
Charges fromA home wallbox or a public charge pointAny standard UK 3 pin socket, no wallbox needed
Max power3.7 kW at 16A, 7.4 kW at 32A, 22 kW on three phase2.3 kW
Speed at home7.4 kW on a 32A cable. UK homes are single phase, so an 11 kW or 22 kW car still draws 7.4 kW2.3 kW
Range per hourAbout 12 miles at 3.7 kW, 25 miles at 7.4 kWAbout 8 miles
Weatherproof ratingIP55IP67
Temperature-30°C to +50°C-30°C to +60°C
Built toIEC 62196-2:2016 2-IIbIEC 62752:2016 / COR1:2019
CertifiedCECE
Best forYour everyday charging cableBackup, and away from home where there is no wallbox
Choose this Select Type 2 to Type 2 for the Nissan Leaf Select Type 2 to 3 pin for the Nissan Leaf
Full range All Type 2 to Type 2 cables All Type 2 to 3 pin cables

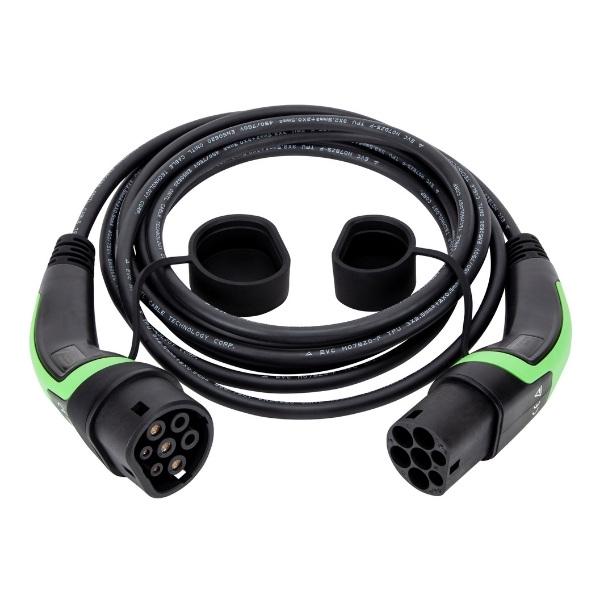

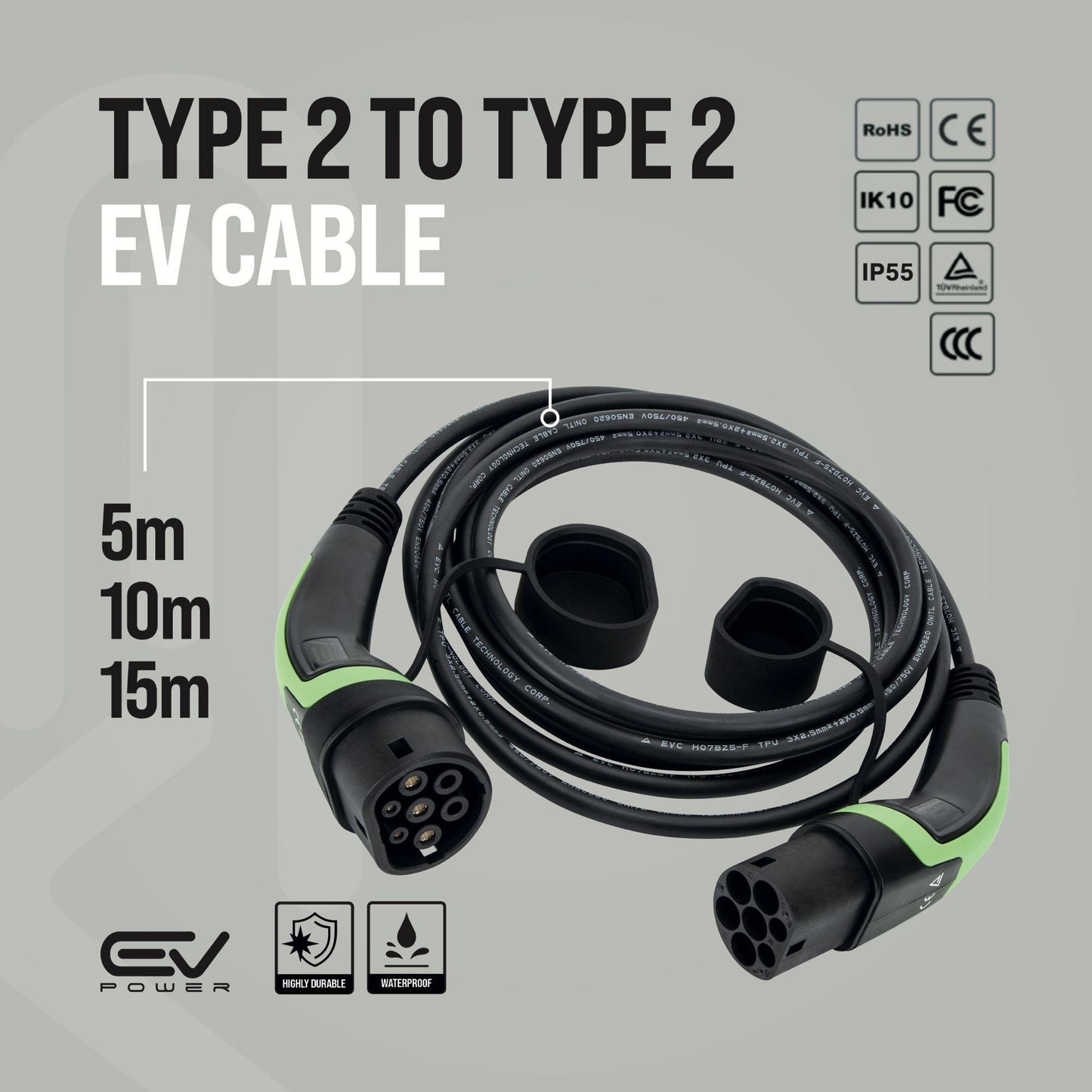

Type 2 to Type 2, full specification
Charging performance

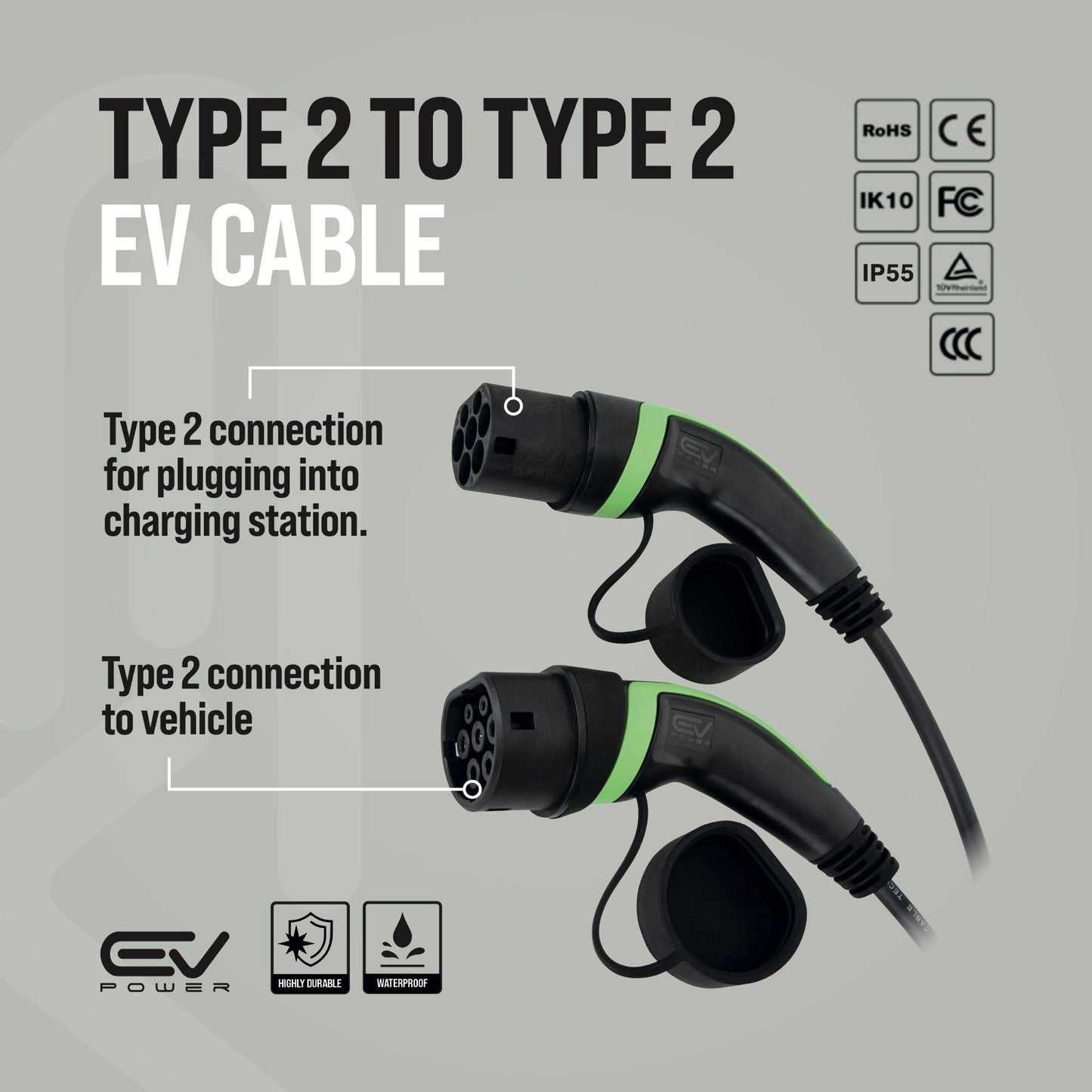

Connector typeType 2 to Type 2 (IEC 62196-2:2016 2-IIb, Mennekes)
Rated current16A or 32A single phase, or 32A three phase
Max power3.7 kW at 16A, 7.4 kW at 32A, 22 kW on three phase
Speed at home7.4 kW. UK homes are single phase, so an 11 kW or 22 kW car still draws 7.4 kW
Range per hourAbout 12 miles at 3.7 kW, 25 miles at 7.4 kW
Slower suppliesFine. Charging runs at the lowest limit of the car, the charge point and the cable, so a 32A cable works normally on a 16A supply
VoltageAC 250V single phase, AC 400V three phase, 50Hz
Signal current2A at 30V
Full rangeAll Type 2 to Type 2 cables
Cable and construction
Lengths5m, 10m, 15m, 20m
Conductors16A: 3 x 2.5mm² plus 2 x 0.5mm²
32A single phase: 3 x 6mm² plus 2 x 0.5mm²
32A three phase: 5 x 6mm² plus 1 x 0.5mm²
InsulationXLPO
SheathTPU
ShellFlame retardant thermoplastic, UL94-V0
PinsCopper alloy, silver plated
ColourBlack cable, green and black connectors
Durability and compliance
Weatherproof ratingIP55 in use
Temperature-30°C to +50°C
Mechanical lifeOver 1,000 connections
ImpactSurvives a 1m drop and a 2 tonne vehicle driving over it
Plug forceUnder 100N
Insulation resistanceOver 1,000 MΩ at DC 500V
Withstand voltage2,500V
Contact impedance0.5 mΩ maximum
Pin temp riseUnder 50K
Built toIEC 62196-2:2016 2-IIb
CertifiedCE

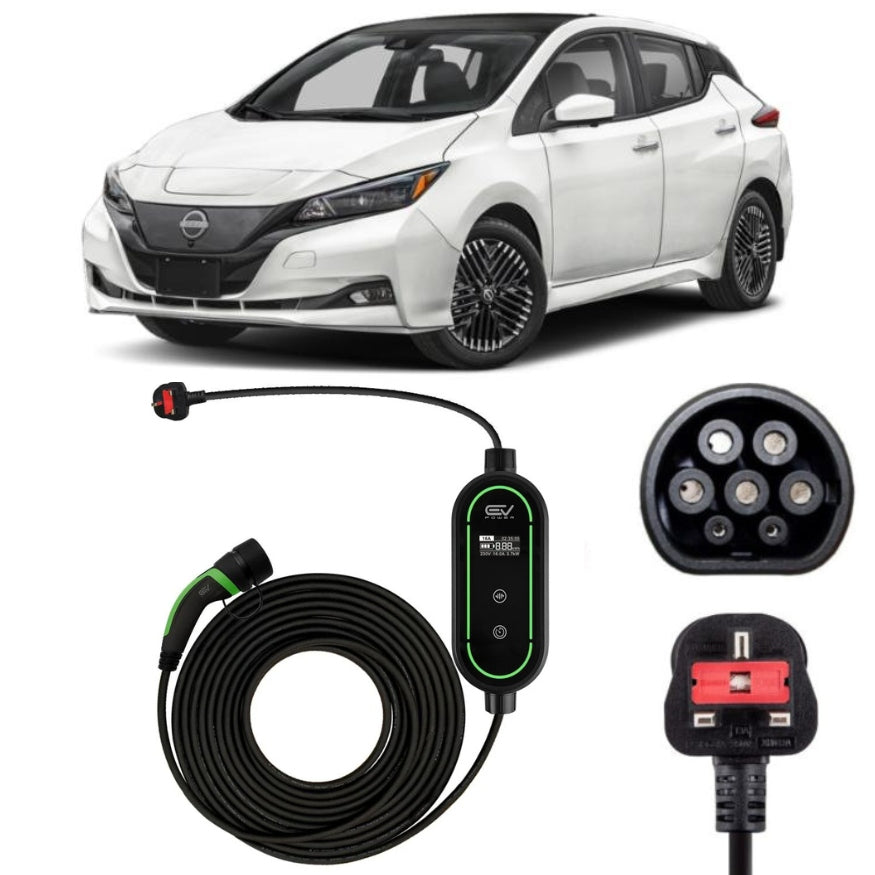

Type 2 to 3 pin, full specification
Charging performance
Connector typeType 2 to 3 pin, BS1363 13A plug
Socket neededAny standard UK 3 pin socket. No wallbox needed
Max power2.3 kW
Current6A to 10A, set on the control box
Voltage230V AC, 50Hz
Range per hourAbout 8 miles
OvernightAbout 100 miles in 12 hours
Full rangeAll Type 2 to 3 pin cables
Safety and protection
Weatherproof ratingIP67
RCDBuilt in, Type B
ProtectionOver and under voltage, overload, short circuit, earth leakage, over temperature and lightning surge
Built toIEC 62752:2016 / COR1:2019
CertifiedCE
Control box
DisplayOLED screen: charging time, energy used, live voltage, current and power, and lifetime total
ControlsTouch key, LED status light, adjustable current, delay timer
Box size200 x 90 x 52 mm
WeightUp to 2.1 kg
CoolingNatural air
Standby powerUnder 0.5 W
ConnectivityNone. No WiFi, Bluetooth, 4G or Ethernet
Build and materials
Lengths5m, 10m, 15m
Temperature-30°C to +60°C
HumidityUp to 95%
Max altitude2,000m
MaterialsTempered glass and PC control box
ColourBlack
Warranty and delivery

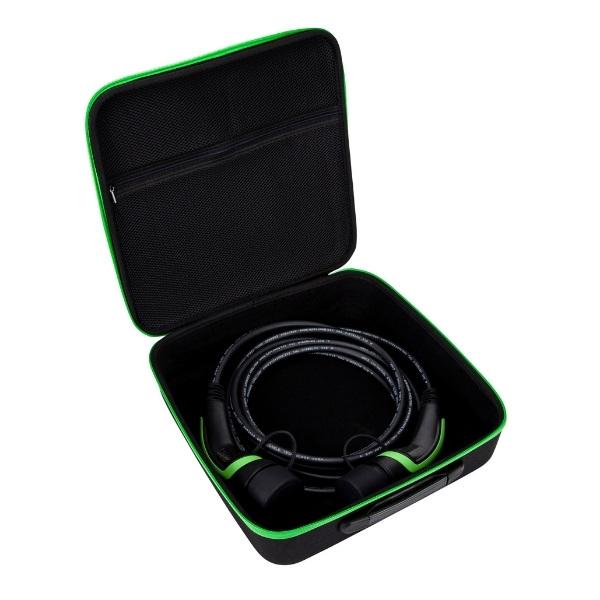

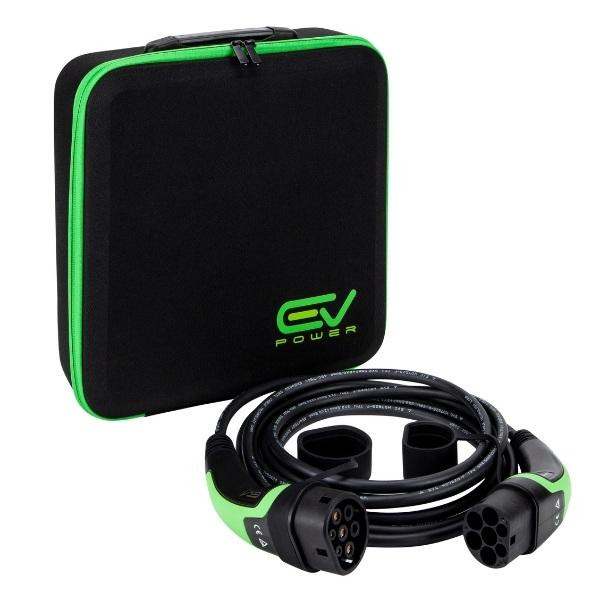

In the boxCharging cable only. The premium storage carry bag is sold separately
Warranty2 year warranty
DeliveryFree next working day UK delivery

Compatibility

Model and yearsBatteryConnectorMax AC charge speedCable we recommend
Nissan Leaf, 2011 to 201724 kWhType 13.3 kW as standard, 6.6 kW with the optional chargerType 1 to Type 2, 32A
Nissan Leaf, 2015 to 201730 kWhType 13.3 kW as standard, 6.6 kW with the optional chargerType 1 to Type 2, 32A
Nissan Leaf, 2018 to 202440 kWh (39 usable)Type 26.6 kWType 2 to Type 2, 32A
Nissan Leaf e+, 2019 to 202562 kWh (59 usable)Type 26.6 kWType 2 to Type 2, 32A
Nissan Leaf Standard Range, 2026 onwards52.9 kWh usableType 211 kWType 2 to Type 2, 32A
Nissan Leaf Extended Range, 2026 onwards75.1 kWh usableType 211 kWType 2 to Type 2, 32A
