EV Cable Shop recommendation
Type 2 to Type 2, 32A three phase, 22 kW (5m / 10m)
The Jaguar I-Pace accepts up to 11 kW on AC. That is what the 22 kW cable is built for, and a workplace or commercial three-phase supply is where it pays the difference back.
Never charge anywhere but home? Then the extra phases have nothing to connect to. A domestic wallbox gives 7.4 kW and the 32A single-phase cable (5m / 10m / 15m / 20m) delivers exactly that.
Jaguar changed the I-Pace's onboard charger in the middle of 2020, and at a British house the change makes almost no difference at all. Cars up to 20MY have a 7 kW single phase charger. From 21MY, announced in June 2020, every I-Pace got an 11 kW three phase unit as standard. A home supply carries one phase and tops out at 7.4 kW, so both cars charge at roughly the same speed on a domestic wallbox. The upgrade only shows itself on a three phase supply, which is why so many owners have never noticed which one they own.

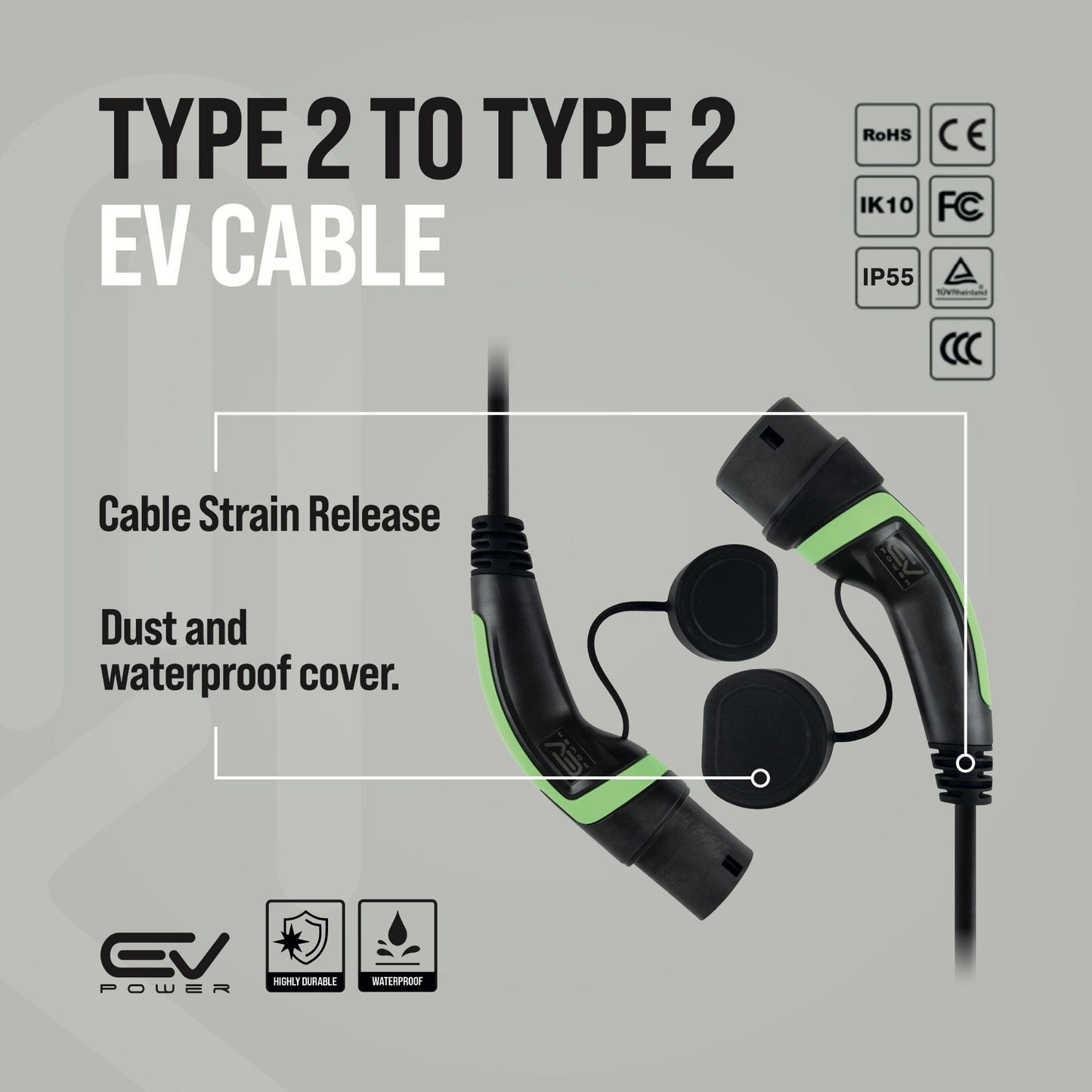

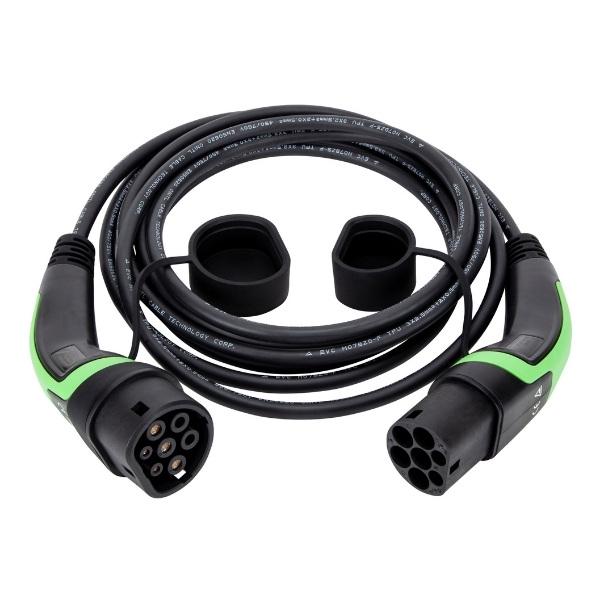

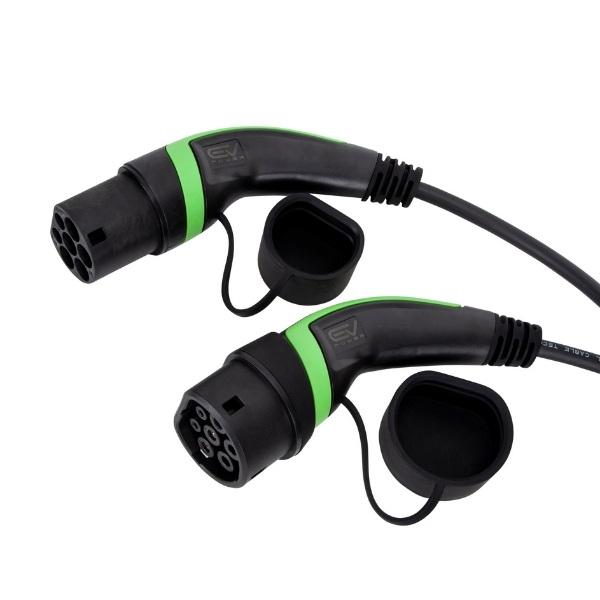

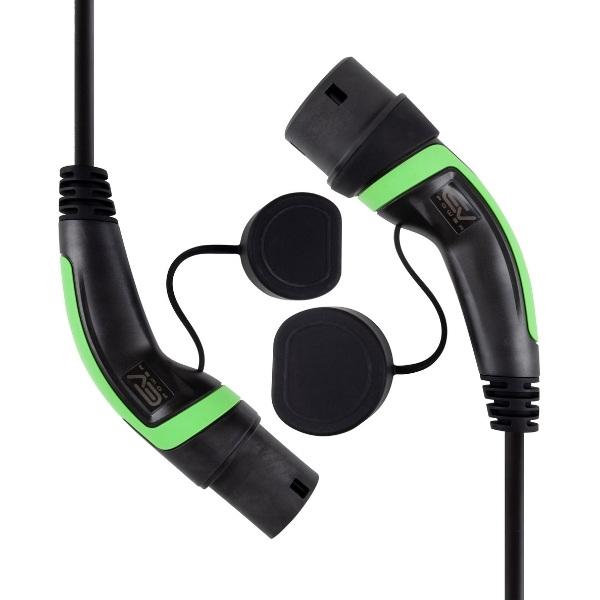

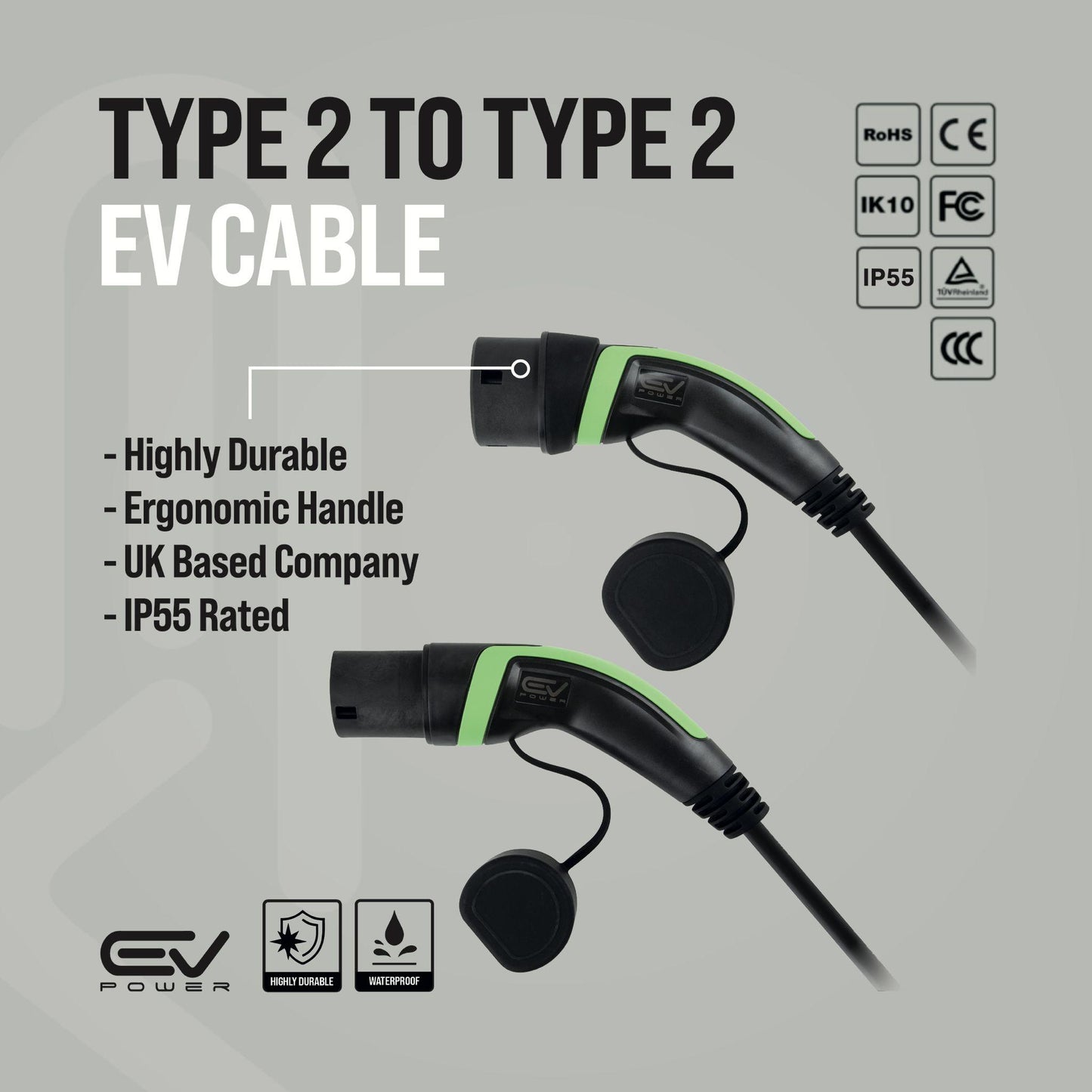

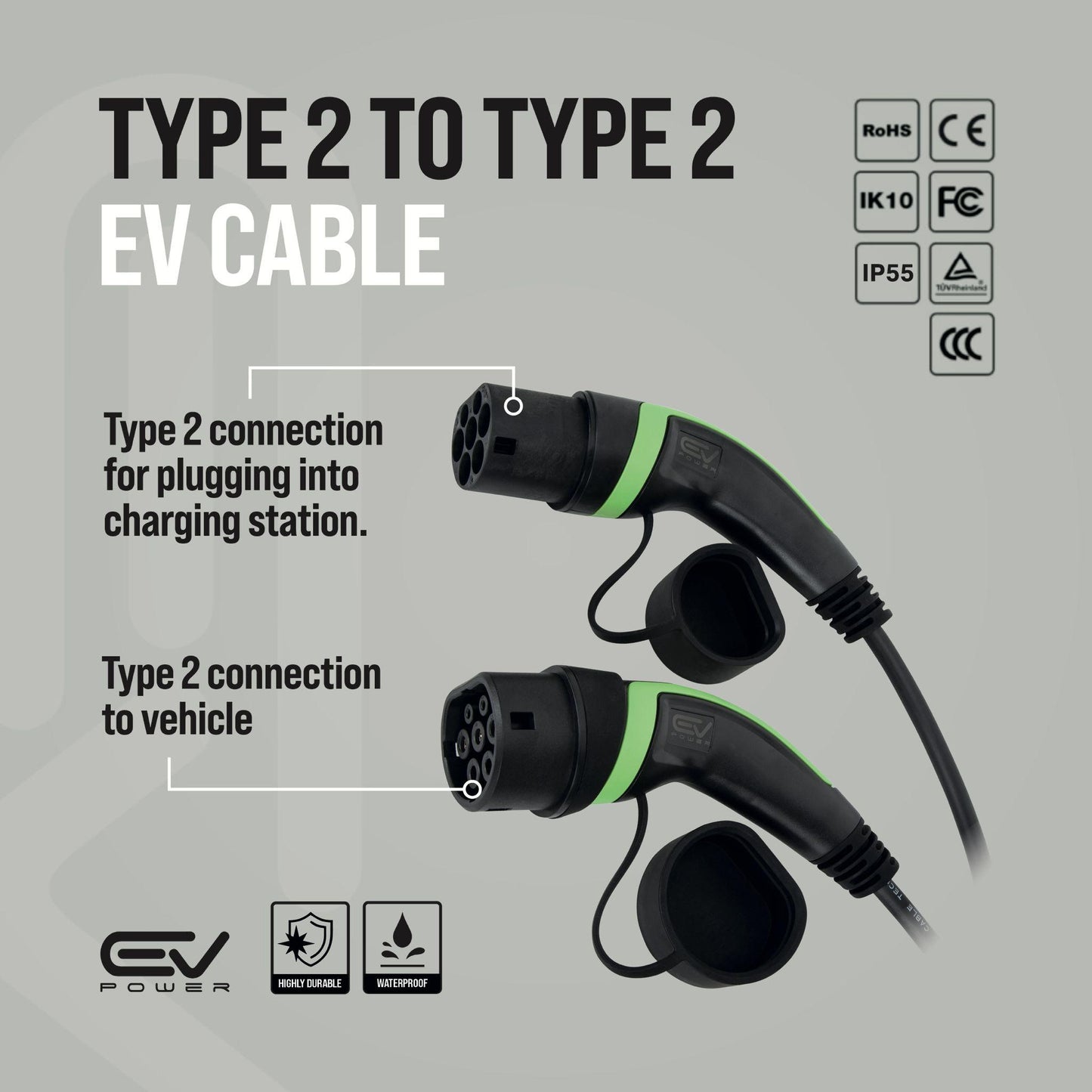

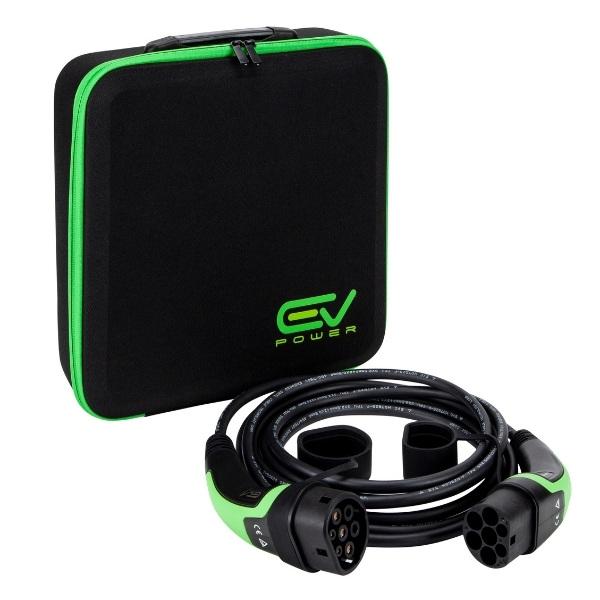

Both versions use a Type 2 to Type 2 Charging Cable. Jaguar puts the charging flap on the front wheel arch, nearside, so the lead reaches in at the kerb-side front corner rather than anywhere near the back of the car.
The 32A single phase cable is the right buy for either. On a 7 kW car it gives the full rate the charger can take, and on an 11 kW car it gives the full 7.4 kW a house can deliver. The 32A three phase cable only pays on a 21MY or later I-Pace at a workplace with three genuine phases, where a full charge falls from 13 hours to 8 hours 45 minutes. On a pre-2021 car there is no benefit to be had anywhere, since its onboard charger is a single phase unit.
The 16A cable is not worth the saving on a 90 kWh battery. Twenty five and three quarter hours is not a charging strategy, and it drops recovery to about 13 miles an hour on a car with 292 miles of range.
Every I-Pace left the factory with a 3-pin lead, and plenty have since lost it. Our Type 2 to 3-Pin Charging Cable gives 2.3 kW from a 13 amp domestic socket, around 8 miles an hour, which is no way to fill this battery but does mean a night at a relative's house is worth sixty or seventy miles. Our guide explains what a house socket can achieve.
The smaller Jaguar plug-in hybrid is covered at Jaguar E-Pace charging cable and the saloon at Jaguar XJ charging cable. Everything Jaguar sits under Jaguar EV charging cables. The sealing figures quoted below are explained in our guide to IP ratings.
All of these leads are made to IEC 62196 Type 2 and hold CE certification, working from -30C to +50C, or +60C for the 3-pin. IP55 covers the Type 2 to Type 2 cables and IP67 the Type 2 to 3-Pin. Each one comes with a 2 year manufacturer's warranty and free next working day UK delivery.
Maximum onboard AC charging speed: 11 kW, three phase
| Cable Type | Max Charge Rate | Empty to Full | Range Added Per Hour | Verdict |
|---|---|---|---|---|
| Type 2 - 1-Phase, 16A (5m / 10m) | 3.7 kW | 25 hours 45 mins | approx. 13 miles | Too slow for this battery |
| Type 2 - 1-Phase, 32A (5m / 10m) | 7.4 kW | 13 hours | approx. 26 miles | Best Fit at home |
| Type 2 - 3-Phase, 32A (5m / 10m) | 11 kW (car limited) | 8 hours 45 mins | approx. 38 miles | For 22kW posts and workplaces |
| Type 2 to 3-Pin (5m / 10m) | 2.3 kW | 41 hours 30 mins | approx. 8 miles | Ideal backup |
Maximum onboard AC charging speed: 7 kW, single phase
| Cable Type | Max Charge Rate | Empty to Full | Range Added Per Hour | Verdict |
|---|---|---|---|---|
| Type 2 - 1-Phase, 16A (5m / 10m) | 3.7 kW | 25 hours 45 mins | approx. 13 miles | Too slow for this battery |
| Type 2 - 1-Phase, 32A (5m / 10m) | 7 kW (car limited) | 13 hours 45 mins | approx. 24 miles | Best Fit at home |
| Type 2 - 3-Phase, 32A (5m / 10m) | 7 kW (car limited) | 13 hours 45 mins | approx. 24 miles | Single-phase charger, no gain |
| Type 2 to 3-Pin (5m / 10m) | 2.3 kW | 41 hours 30 mins | approx. 8 miles | Ideal backup |
Jaguar published the pack only as 90 kWh gross, so the 84.7 kWh usable figure comes from third party measurement. The changeover happened during 2020, so a car registered late that year could be either. A cold snap or a long motorway stint will each pull these miles down.
We pride ourselves on the quality of our cables. Every cable comes with a 2 year manufacturer's warranty, and the jacket will survive being driven over, though we would rather you did not make a habit of it.
Protection against pressure
Our cables are safe to use whatever the weather. Type 2 to Type 2 cables are IP55 rated, CE marked, and work from -30°C to +50°C. Type 2 to 3 pin cables are IP67 rated, CE marked and work from -30°C to +60°C.
Protection against temperature
Our cables fit any electric car or plug-in hybrid with a Type 2 inlet, including Audi, BMW, Volvo, Mini, Mercedes, Kia, Hyundai, Volkswagen, Smart and Toyota. Use our car reg checker to confirm your car.
Compatible with all Type 2 cars
Every Jaguar I-Pace uses a Type 2 to Type 2 Charging Cable, and the 32A single phase version suits both charger versions at home. It gives a pre-2021 car its full 7 kW and a 2021 on car the full 7.4 kW a British house can supply.
Cars up to 20MY have 7 kW single phase and 21MY onwards have 11 kW three phase, standard on both counts rather than optional. Jaguar announced the change in June 2020, so a car registered in the second half of that year could be either and the registration date will not settle it. At home the two charge at almost the same speed anyway.
Only on a 21MY or later car, and only where three genuine phases exist. There it takes a full charge from 13 hours to 8 hours 45 minutes. On a pre-2021 I-Pace it cannot help at all, because that car's onboard charger is single phase, and on any house supply it delivers exactly what the cheaper 32A cable delivers.
About 13 hours from empty on a 32A cable for a 2021 on car, and 13 hours 45 minutes for an earlier one. This is a big battery, so most owners top up rather than fill, and a seven hour overnight window returns roughly 180 miles.
The socket sits on the nearside front wheel arch of a 4.68 metre car, well forward. That makes 5m marginal on most driveways, because a wallbox mounted at the rear or on the driver's side leaves the lead crossing the whole car. This is a 10m car more often than not.
Yes. The great majority of British public AC points are untethered, meaning the driver supplies the lead, so one cable covers home and away. CCS rapid chargers have their cable built in and need nothing from you.
Showing both cable types. Choose a cable type above and this section will show just that specification.
Showing the specification for the cable type you have selected. Compare both cable types.
| Type 2 to Type 2 | Type 2 to 3 pin | |
|---|---|---|
| Charges from | A home wallbox or a public charge point | Any standard UK 3 pin socket, no wallbox needed |
| Max power | 3.7 kW at 16A, 7.4 kW at 32A, 22 kW on three phase | 2.4 kW |
| Speed at home | 7.4 kW on a 32A cable. UK homes are single phase, so an 11 kW or 22 kW car still draws 7.4 kW | 2.4 kW |
| Range per hour | About 12 miles at 3.7 kW, 25 miles at 7.4 kW | About 8 miles |
| Weatherproof rating | IP55 | IP67 |
| Temperature | -30°C to +50°C | -30°C to +60°C |
| Built to | IEC 62196-2:2016 2-IIb | IEC 62752:2016 / COR1:2019 |
| Certified | CE | CE |
| Best for | Your everyday charging cable | Backup, and away from home where there is no wallbox |
| Choose this | Select Type 2 to Type 2 for the Jaguar I Pace | Select Type 2 to 3 pin for the Jaguar I Pace |
| Full range | All Type 2 to Type 2 cables | All Type 2 to 3 pin cables |

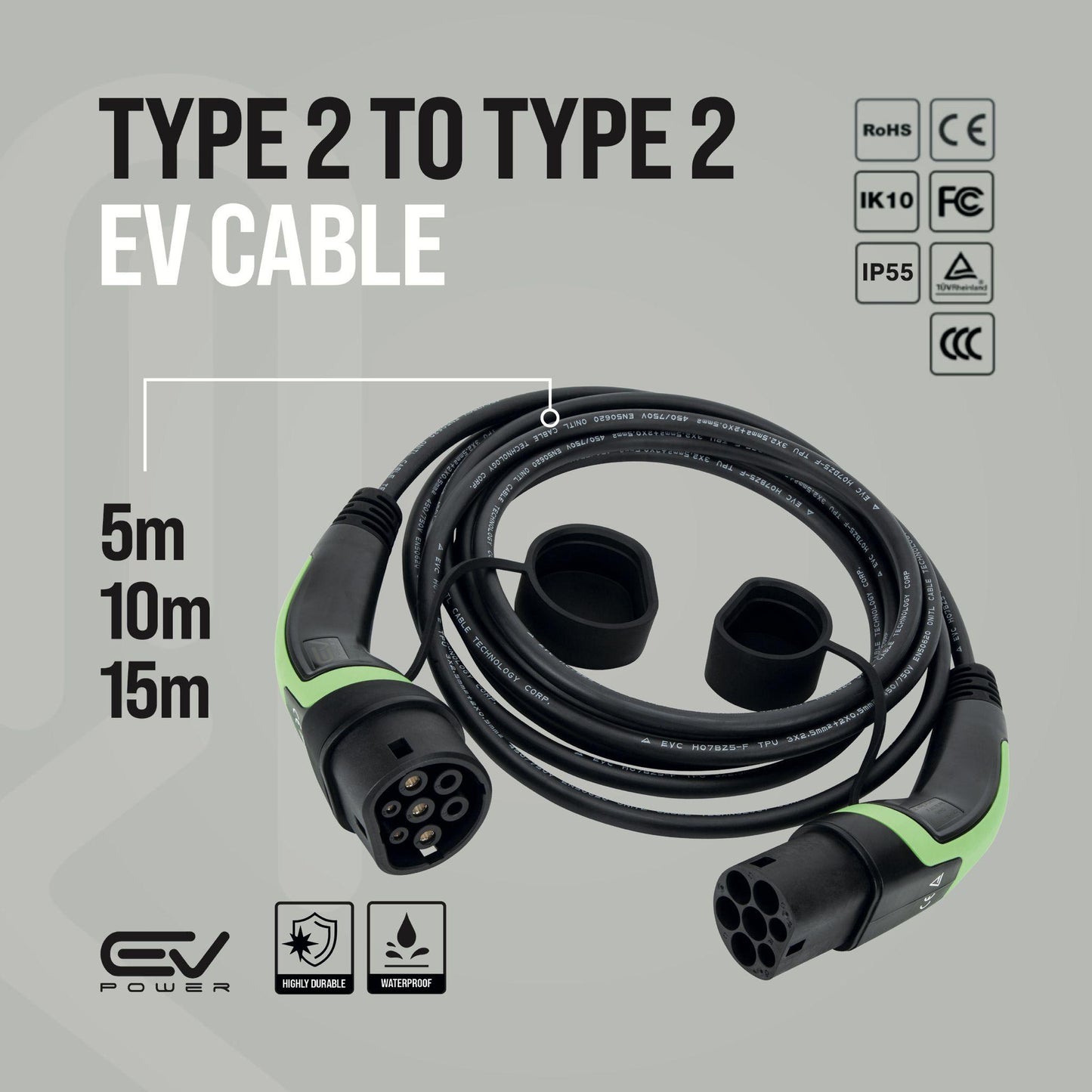

| Connector type | Type 2 to Type 2 (IEC 62196-2:2016 2-IIb, Mennekes) |
| Rated current | 16A or 32A single phase, or 32A three phase |
| Max power | 3.7 kW at 16A, 7.4 kW at 32A, 22 kW on three phase |
| Speed at home | 7.4 kW. UK homes are single phase, so an 11 kW or 22 kW car still draws 7.4 kW |
| Range per hour | About 12 miles at 3.7 kW, 25 miles at 7.4 kW |
| Slower supplies | Fine. Charging runs at the lowest limit of the car, the charge point and the cable, so a 32A cable works normally on a 16A supply |
| Voltage | AC 250V single phase, AC 400V three phase, 50Hz |
| Signal current | 2A at 30V |
| Full range | All Type 2 to Type 2 cables |
| Lengths | 5m, 10m, 15m, 20m |
| Conductors | 16A: 3 x 2.5mm² plus 2 x 0.5mm² 32A single phase: 3 x 6mm² plus 2 x 0.5mm² 32A three phase: 5 x 6mm² plus 1 x 0.5mm² |
| Insulation | XLPO |
| Sheath | TPU |
| Shell | Flame retardant thermoplastic, UL94-V0 |
| Pins | Copper alloy, silver plated |
| Colour | Black cable, green and black connectors |
| Weatherproof rating | IP55 in use |
| Temperature | -30°C to +50°C |
| Mechanical life | Over 1,000 connections |
| Impact | Survives a 1m drop and a 2 tonne vehicle driving over it |
| Plug force | Under 100N |
| Insulation resistance | Over 1,000 MΩ at DC 500V |
| Withstand voltage | 2,500V |
| Contact impedance | 0.5 mΩ maximum |
| Pin temp rise | Under 50K |
| Built to | IEC 62196-2:2016 2-IIb |
| Certified | CE |
| Connector type | Type 2 to 3 pin, BS1363 13A plug |
| Socket needed | Any standard UK 3 pin socket. No wallbox needed |
| Max power | 2.4 kW |
| Current | 6A to 13A, set on the control box |
| Voltage | 230V AC, 50Hz |
| Range per hour | About 8 miles |
| Overnight | About 100 miles in 12 hours |
| Full range | All Type 2 to 3 pin cables |
| Weatherproof rating | IP67 |
| RCD | Built in, Type B |
| Protection | Over and under voltage, overload, short circuit, earth leakage, over temperature and lightning surge |
| Built to | IEC 62752:2016 / COR1:2019 |
| Certified | CE |
| Display | OLED screen: charging time, energy used, live voltage, current and power, and lifetime total |
| Controls | Touch key, LED status light, adjustable current, delay timer |
| Box size | 200 x 90 x 52 mm |
| Weight | Up to 2.1 kg |
| Cooling | Natural air |
| Standby power | Under 0.5 W |
| Connectivity | None. No WiFi, Bluetooth, 4G or Ethernet |
| Lengths | 5m, 10m, 15m |
| Temperature | -30°C to +60°C |
| Humidity | Up to 95% |
| Max altitude | 2,000m |
| Materials | Tempered glass and PC control box |
| Colour | Black |

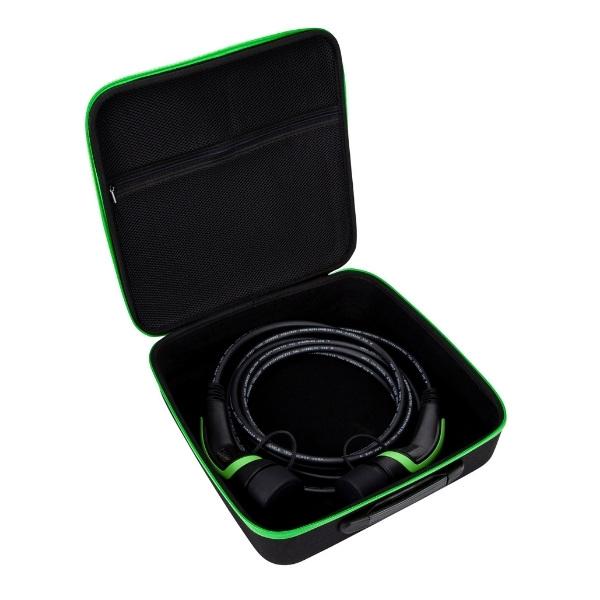

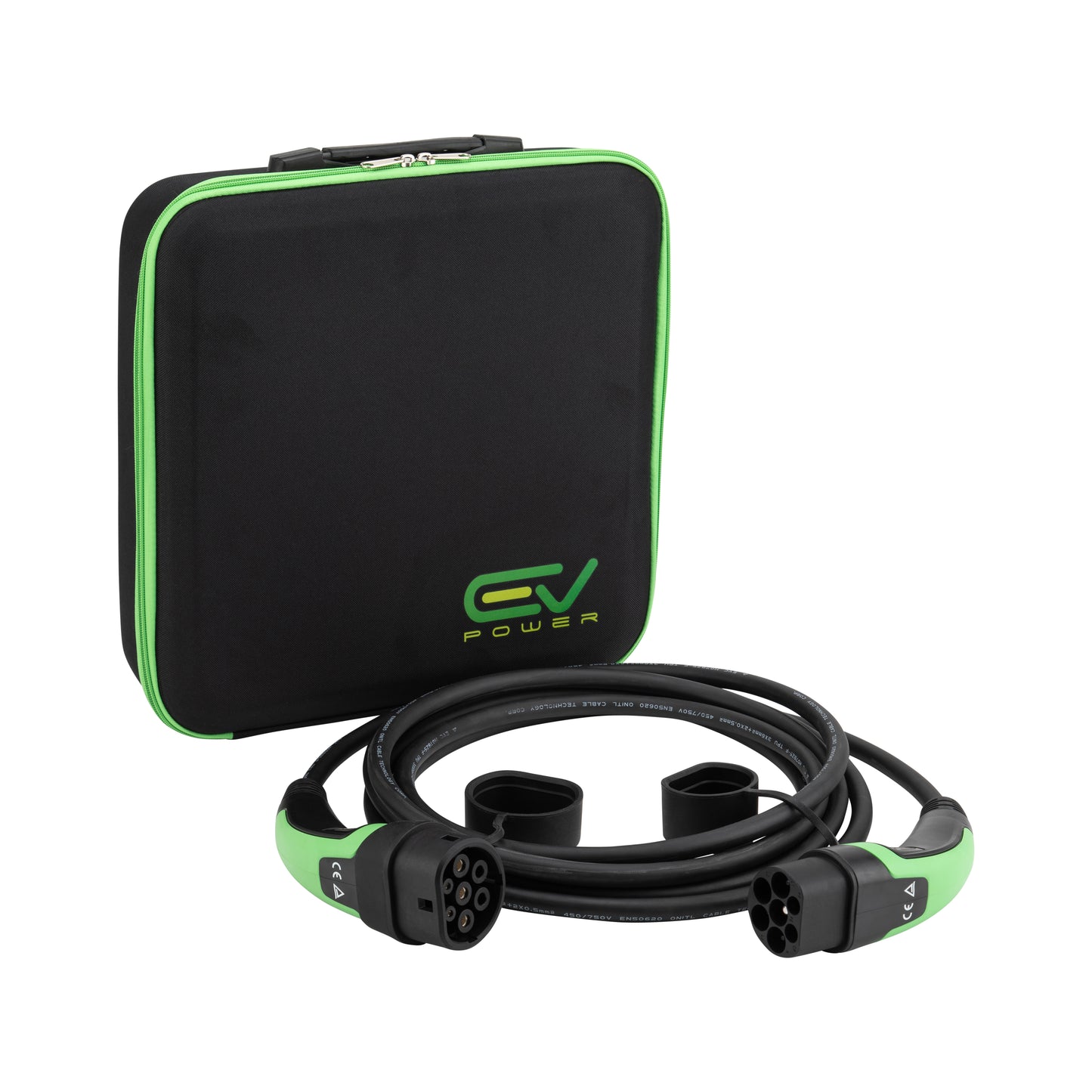

| In the box | Charging cable only. The premium storage carry bag is sold separately |
| Warranty | 2 year warranty |
| Delivery | Free next working day UK delivery |
The I-PACE is Type 2 throughout, so any Type 2 cable fits, but the onboard charger changed part way through its life and it is worth knowing which you have. Cars built up to the 2020 model year have a 7 kW charger. From the 2021 model year Jaguar fitted an 11 kW three-phase charger as standard, which it announced specifically for customers with three-phase supplies. The honest caveat is that a UK home is single phase, so even a 2021 or later I-PACE charges at about 7.4 kW on your own wallbox. The 11 kW only appears on a three-phase post. A 32A Type 2 cable is right for home either way. Jaguar closed UK order books on the I-PACE in November 2024.
| Badge | Years | Battery | Connector | Max AC charge speed | Cable we recommend |
|---|---|---|---|---|---|
| I-PACE EV400, S, SE and HSE | 2018 to 2020 | 84.7 kWh usable, 90 gross | Type 2, plus CCS rapid at around 100 kW | 7 kW | Type 2 to Type 2, 32A |
| I-PACE EV400, 2021 model year onwards | 2021 to 2024 | 84.7 kWh usable, 90 gross | Type 2, plus CCS rapid at around 100 kW | 11 kW three phase as standard, which is 7.4 kW on a UK home supply | Type 2 to Type 2, 32A for home. 32A three phase for public three-phase posts |
