EV Cable Shop recommendation
Type 2 to Type 2, 32A three phase, 22 kW (5m / 10m)
The BMW iX accepts up to 11 kW on AC. That is what the 22 kW cable is built for, and a workplace or commercial three-phase supply is where it pays the difference back.
Never charge anywhere but home? Then the extra phases have nothing to connect to. A domestic wallbox gives 7.4 kW and the 32A single-phase cable (5m / 10m / 15m / 20m) delivers exactly that.
A BMW iX charging cable has to move more energy than any other car we supply. The xDrive50 and the M60 carry 105.2 kWh usable, which is more than three Nissan Leafs, and every iX accepts 11 kW on AC as standard.
That size changes the character of home charging. On a British single-phase supply, which gives 7.4 kW, a 105.2 kWh iX takes about 16 hours from empty. There is no cheap-rate window that long. It is the one car in our range where a three-phase supply stops being a nice extra and starts changing how you live with the vehicle, because it takes the same charge down to about 10 hours 45 minutes.
In practice most iX owners never see an empty battery, and that is the sensible approach. Plugging in nightly from 40 or 50 percent turns a 16 hour problem into a 7 hour one that fits comfortably inside off-peak hours. The car is easier to own if you stop thinking about full charges.

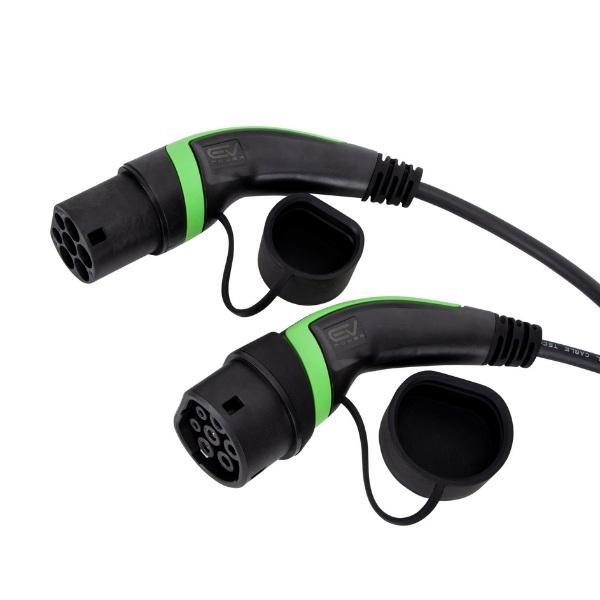

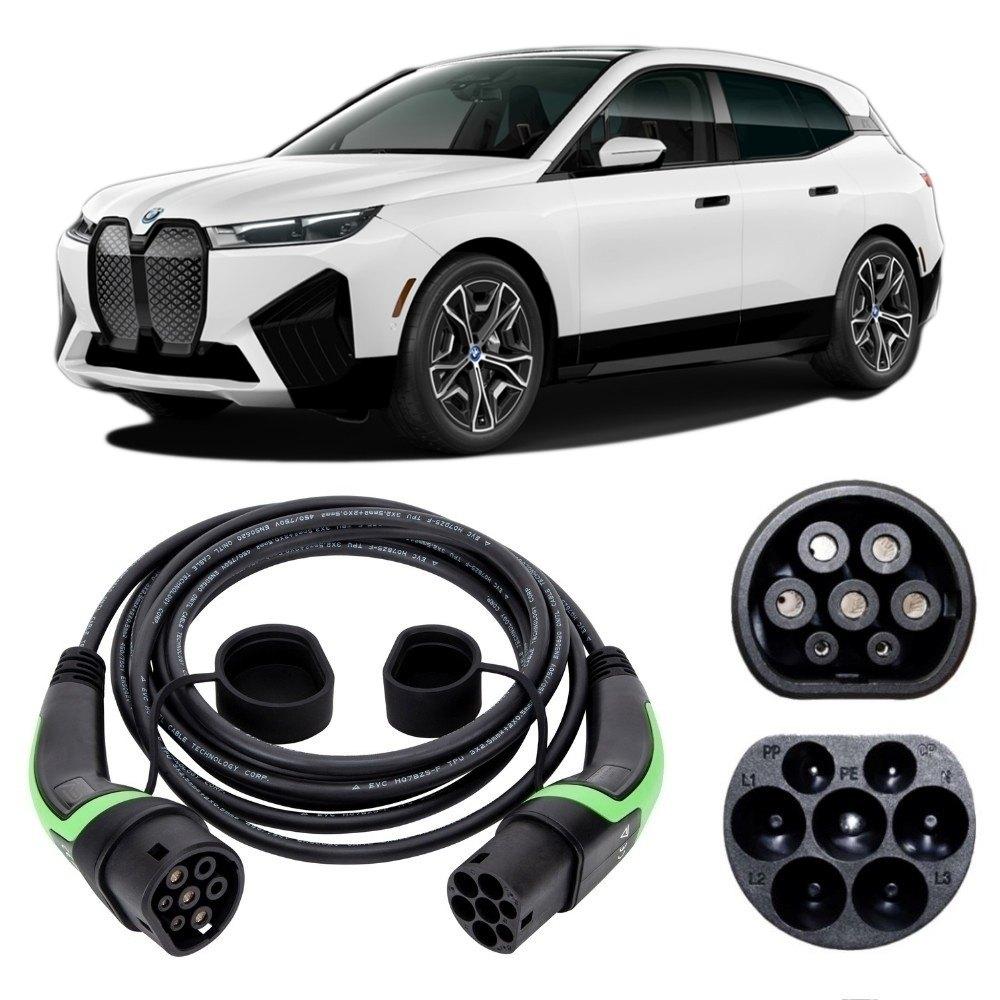

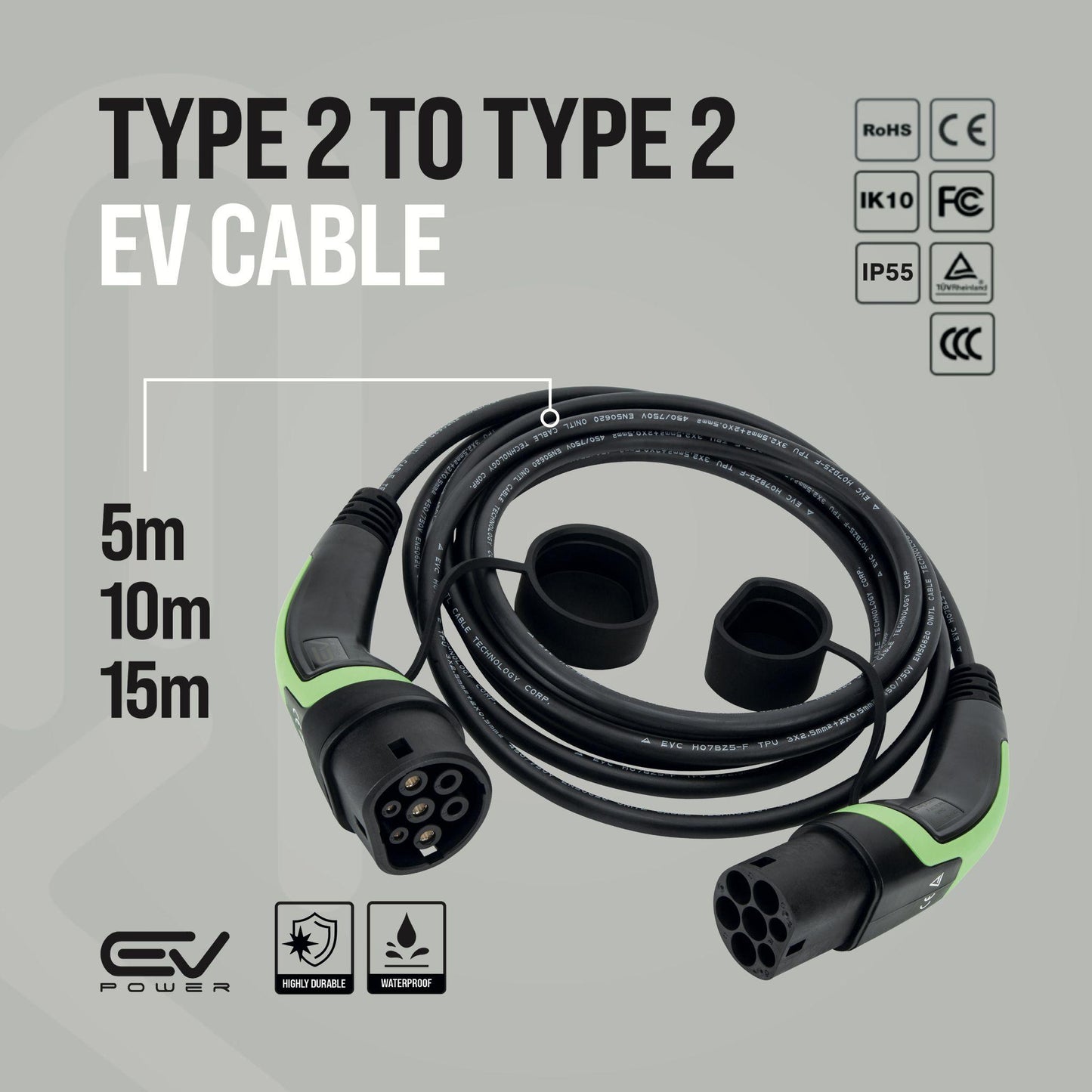

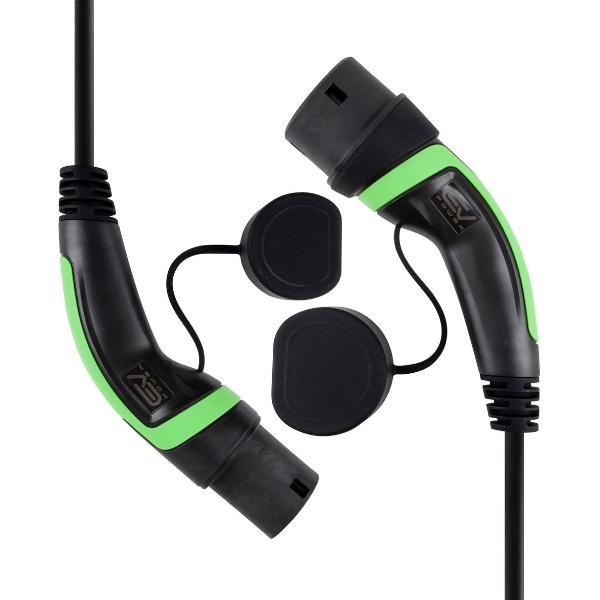

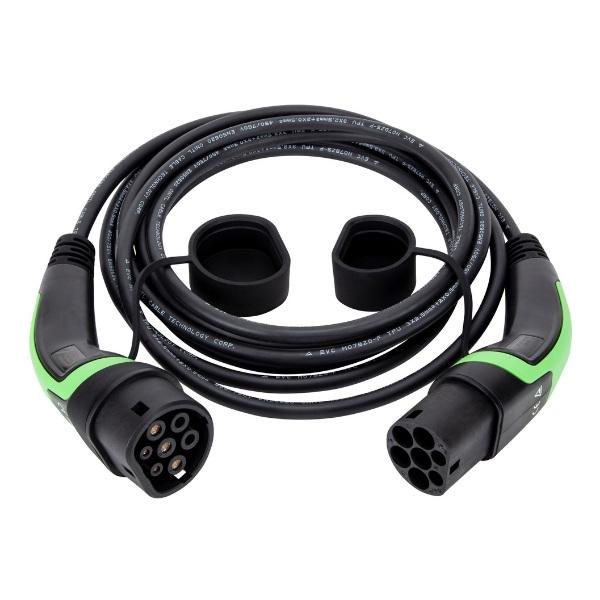

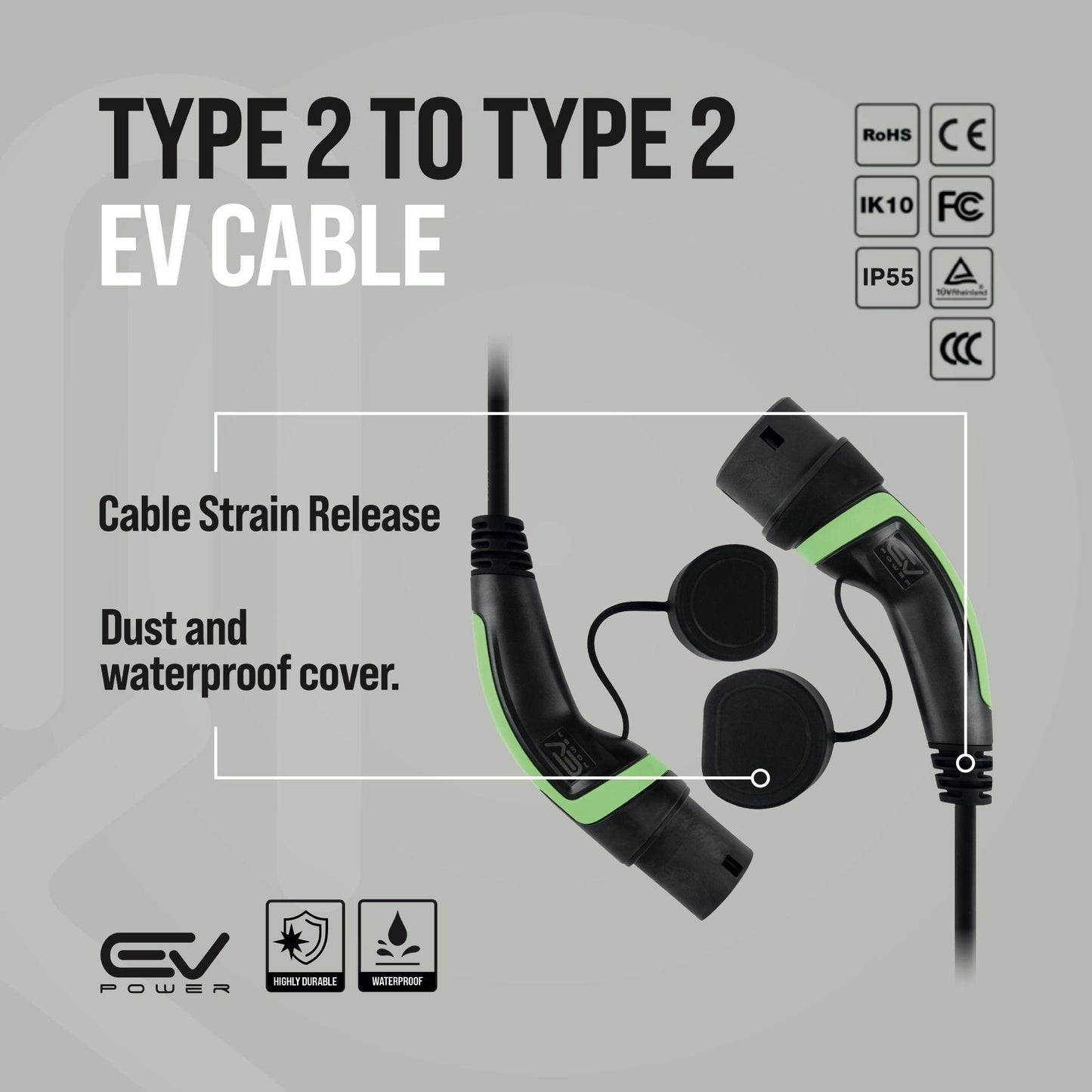

Every BMW iX charges through a Type 2 to Type 2 Charging Cable, ours sealed to IP55, on the xDrive40, the xDrive50 and the M60 alike.
Our 1-Phase, 32A cable is the right buy for a driveway, carrying the whole 7.4 kW a house can produce. Our 22 kW three-phase cable cannot take an iX past its own 11 kW, but on a genuine three-phase supply that 11 kW is worth having on a battery this large. No BMW iX of this generation was offered with a 22 kW onboard charger, so 11 kW is the ceiling either way.
The 16A cable is simply not viable here. At 3.7 kW an xDrive50 needs 32 hours 15 minutes from empty, which is a day and a third, and returns about 13 miles of range an hour. Even the smaller xDrive40 takes 21 hours 45 minutes. This is the clearest case in our whole range for not economising on the cable.

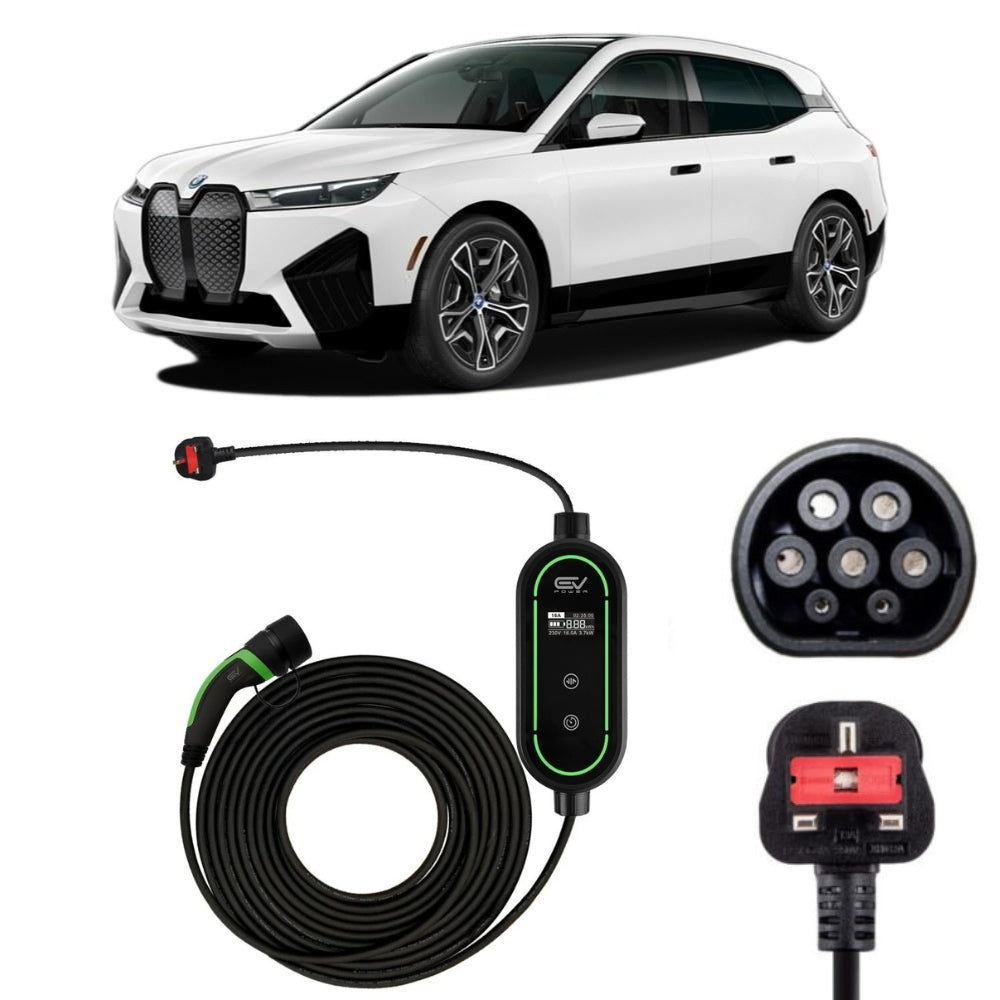

Our Type 2 to 3-Pin Charging Cable is IP67 sealed and draws 2.3 kW, which on an iX is strictly an emergency measure at roughly 8 miles of range an hour. It has its place for a night at a hotel with nothing else available, and no more than that. Our note on charging from a household socket sets out why.
Elsewhere in the range the BMW iX3 and the BMW i7 have their own numbers, and the BMW charging cable range covers the rest. Our IP ratings guide explains what the sealing figures protect against.
Two year manufacturer's warranty, free next working day UK delivery, IEC 62196 Type 2 construction, CE certified, rated from -30C to +50C, or +60C for the 3-pin.
Maximum onboard AC charging speed: 11 kW, three phase, standard
| Cable Type | Max Charge Rate | Empty to Full | Range Added Per Hour | Verdict |
|---|---|---|---|---|
| Type 2 - 1-Phase, 16A (5m / 10m) | 3.7 kW | 32 hours 15 mins | approx. 13 miles | Not viable on this battery |
| Type 2 - 1-Phase, 32A (5m / 10m) | 7.4 kW | 16 hours | approx. 27 miles | Best Fit at home |
| Type 2 - 3-Phase, 32A (5m / 10m) | 11 kW (car limited) | 10 hours 45 mins | approx. 40 miles | Worth it on a three-phase supply |
| Type 2 to 3-Pin (5m / 10m) | 2.3 kW | 51 hours 45 mins | approx. 8 miles | Emergency use only |
Maximum onboard AC charging speed: 11 kW, three phase, standard
| Cable Type | Max Charge Rate | Empty to Full | Range Added Per Hour | Verdict |
|---|---|---|---|---|
| Type 2 - 1-Phase, 16A (5m / 10m) | 3.7 kW | 21 hours 45 mins | approx. 14 miles | Too slow for this battery |
| Type 2 - 1-Phase, 32A (5m / 10m) | 7.4 kW | 10 hours 45 mins | approx. 28 miles | Best Fit at home |
| Type 2 - 3-Phase, 32A (5m / 10m) | 11 kW (car limited) | 7 hours 15 mins | approx. 41 miles | For 22kW posts and workplaces |
| Type 2 to 3-Pin (5m / 10m) | 2.3 kW | 35 hours | approx. 9 miles | Emergency use only |
The M60 shares the 105.2 kWh battery with the xDrive50, so its charging times are identical, with roughly 24 miles of range recovered per hour on the 32A cable rather than 27. BMW requoted iX range figures during the model's life, so treat them as a band. Cold weather and motorway speeds each reduce them further.
We pride ourselves on the quality of our cables. Every cable comes with a 2 year manufacturer's warranty, and the jacket will survive being driven over, though we would rather you did not make a habit of it.
Protection against pressure
Our cables are safe to use whatever the weather. Type 2 to Type 2 cables are IP55 rated, CE marked, and work from -30°C to +50°C. Type 2 to 3 pin cables are IP67 rated, CE marked and work from -30°C to +60°C.
Protection against temperature
Our cables fit any electric car or plug-in hybrid with a Type 2 inlet, including Audi, BMW, Volvo, Mini, Mercedes, Kia, Hyundai, Volkswagen, Smart and Toyota. Use our car reg checker to confirm your car.
Compatible with all Type 2 cars
For a BMW iX the answer is a Type 2 to Type 2 cable at 32A single phase, on every version from the xDrive40 to the M60. It carries the full 7.4 kW a house can supply, and on a battery this large getting every watt matters more than on any other car we cover.
About 16 hours from empty for a 105.2 kWh BMW iX xDrive50 or M60, and about 10 hours 45 minutes for the 71 kWh xDrive40, both on a 7.4 kW wallbox. No off-peak window covers the larger figure, which is why most owners charge nightly from part full rather than running the battery down.
More so than on almost any car, provided you can reach a genuine three-phase supply. It takes a 105.2 kWh BMW iX from about 16 hours to 10 hours 45 minutes, which is the difference between an overnight charge and one that is still running at lunchtime. At a normal house it delivers 7.4 kW, exactly as the 32A single-phase cable does.
Not on this generation. Every BMW iX xDrive40, xDrive50 and M60 has an 11 kW onboard charger as standard and there was no 22 kW option on UK cars, so the car caps at 11 kW even on a three-phase supply.
No. A 16A cable holds a BMW iX at 3.7 kW, which means 32 hours 15 minutes from empty on the big battery and about 13 miles of range recovered per hour. On a car of this size the saving against a 32A cable is repaid within weeks of charging at off-peak rates.
10m, and it is not a close call. The iX is nearly five metres long and over two metres wide including mirrors, so it dominates a driveway and the charging flap ends up a long way from most wall units. 5m only makes sense inside a garage where the car parks against the same wall as the charger every time.
Showing both cable types. Choose a cable type above and this section will show just that specification.
Showing the specification for the cable type you have selected. Compare both cable types.
| Type 2 to Type 2 | Type 2 to 3 pin | |
|---|---|---|
| Charges from | A home wallbox or a public charge point | Any standard UK 3 pin socket, no wallbox needed |
| Max power | 3.7 kW at 16A, 7.4 kW at 32A, 22 kW on three phase | 2.4 kW |
| Speed at home | 7.4 kW on a 32A cable. UK homes are single phase, so an 11 kW or 22 kW car still draws 7.4 kW | 2.4 kW |
| Range per hour | About 12 miles at 3.7 kW, 25 miles at 7.4 kW | About 8 miles |
| Weatherproof rating | IP55 | IP67 |
| Temperature | -30°C to +50°C | -30°C to +60°C |
| Built to | IEC 62196-2:2016 2-IIb | IEC 62752:2016 / COR1:2019 |
| Certified | CE | CE |
| Best for | Your everyday charging cable | Backup, and away from home where there is no wallbox |
| Choose this | Select Type 2 to Type 2 for the BMW iX | Select Type 2 to 3 pin for the BMW iX |
| Full range | All Type 2 to Type 2 cables | All Type 2 to 3 pin cables |
| Connector type | Type 2 to Type 2 (IEC 62196-2:2016 2-IIb, Mennekes) |
| Rated current | 16A or 32A single phase, or 32A three phase |
| Max power | 3.7 kW at 16A, 7.4 kW at 32A, 22 kW on three phase |
| Speed at home | 7.4 kW. UK homes are single phase, so an 11 kW or 22 kW car still draws 7.4 kW |
| Range per hour | About 12 miles at 3.7 kW, 25 miles at 7.4 kW |
| Slower supplies | Fine. Charging runs at the lowest limit of the car, the charge point and the cable, so a 32A cable works normally on a 16A supply |
| Voltage | AC 250V single phase, AC 400V three phase, 50Hz |
| Signal current | 2A at 30V |
| Full range | All Type 2 to Type 2 cables |
| Lengths | 5m, 10m, 15m, 20m |
| Conductors | 16A: 3 x 2.5mm² plus 2 x 0.5mm² 32A single phase: 3 x 6mm² plus 2 x 0.5mm² 32A three phase: 5 x 6mm² plus 1 x 0.5mm² |
| Insulation | XLPO |
| Sheath | TPU |
| Shell | Flame retardant thermoplastic, UL94-V0 |
| Pins | Copper alloy, silver plated |
| Colour | Black cable, green and black connectors |
| Weatherproof rating | IP55 in use |
| Temperature | -30°C to +50°C |
| Mechanical life | Over 1,000 connections |
| Impact | Survives a 1m drop and a 2 tonne vehicle driving over it |
| Plug force | Under 100N |
| Insulation resistance | Over 1,000 MΩ at DC 500V |
| Withstand voltage | 2,500V |
| Contact impedance | 0.5 mΩ maximum |
| Pin temp rise | Under 50K |
| Built to | IEC 62196-2:2016 2-IIb |
| Certified | CE |
| Connector type | Type 2 to 3 pin, BS1363 13A plug |
| Socket needed | Any standard UK 3 pin socket. No wallbox needed |
| Max power | 2.4 kW |
| Current | 6A to 13A, set on the control box |
| Voltage | 230V AC, 50Hz |
| Range per hour | About 8 miles |
| Overnight | About 100 miles in 12 hours |
| Full range | All Type 2 to 3 pin cables |
| Weatherproof rating | IP67 |
| RCD | Built in, Type B |
| Protection | Over and under voltage, overload, short circuit, earth leakage, over temperature and lightning surge |
| Built to | IEC 62752:2016 / COR1:2019 |
| Certified | CE |
| Display | OLED screen: charging time, energy used, live voltage, current and power, and lifetime total |
| Controls | Touch key, LED status light, adjustable current, delay timer |
| Box size | 200 x 90 x 52 mm |
| Weight | Up to 2.1 kg |
| Cooling | Natural air |
| Standby power | Under 0.5 W |
| Connectivity | None. No WiFi, Bluetooth, 4G or Ethernet |
| Lengths | 5m, 10m, 15m |
| Temperature | -30°C to +60°C |
| Humidity | Up to 95% |
| Max altitude | 2,000m |
| Materials | Tempered glass and PC control box |
| Colour | Black |

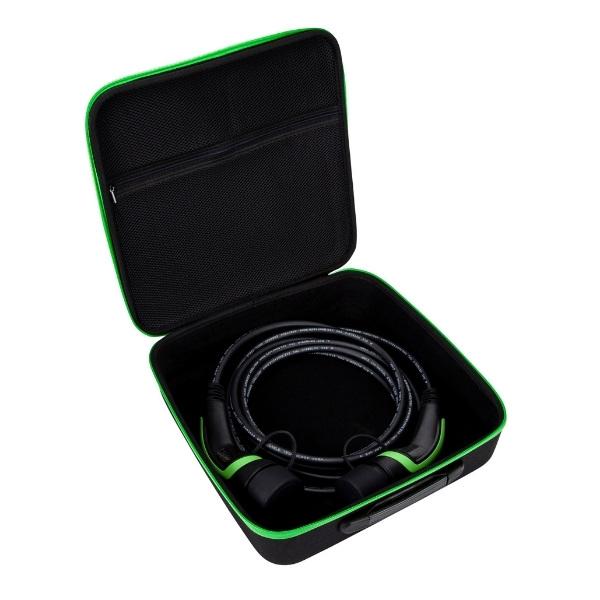

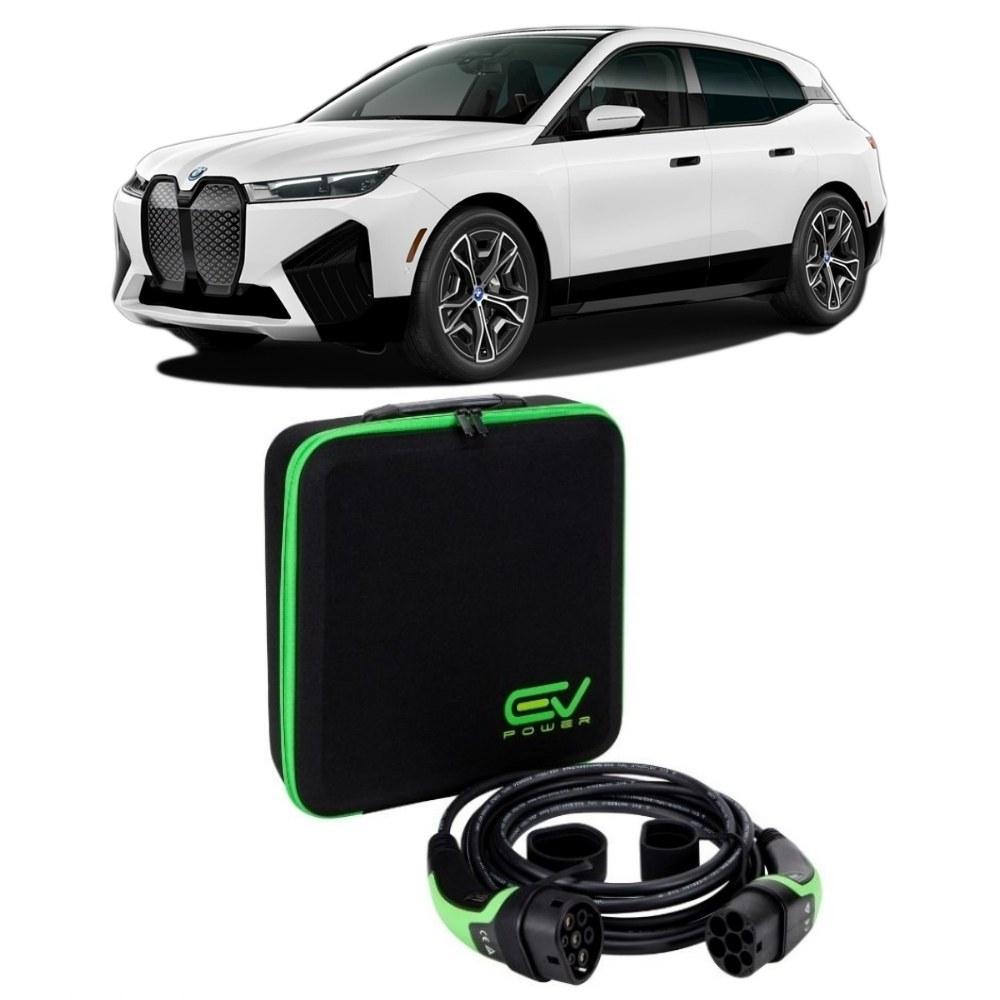

| In the box | Charging cable only. The premium storage carry bag is sold separately |
| Warranty | 2 year warranty |
| Delivery | Free next working day UK delivery |
Every iX is fully electric and takes a Type 2 cable. Trim level makes no difference to charging. BMW replaced the range in 2025 with the xDrive45, xDrive60 and M70 xDrive: those cars use the same Type 2 connector and the same cable, but we have not yet confirmed their exact battery and charger figures, so they are not listed below rather than guessed at.
| Badge | Years | Battery | Connector | Max AC charge speed | Cable we recommend |
|---|---|---|---|---|---|
| iX xDrive40 | 2021 to 2025 | 71 kWh usable | Type 2 | 11 kW | Type 2 to Type 2, 32A |
| iX xDrive50 | 2021 to 2025 | 105.2 kWh usable | Type 2 | 11 kW | Type 2 to Type 2, 32A |
| iX M60 | 2022 to 2025 | 105.2 kWh usable | Type 2 | 11 kW | Type 2 to Type 2, 32A |
