EV Cable Shop recommendation

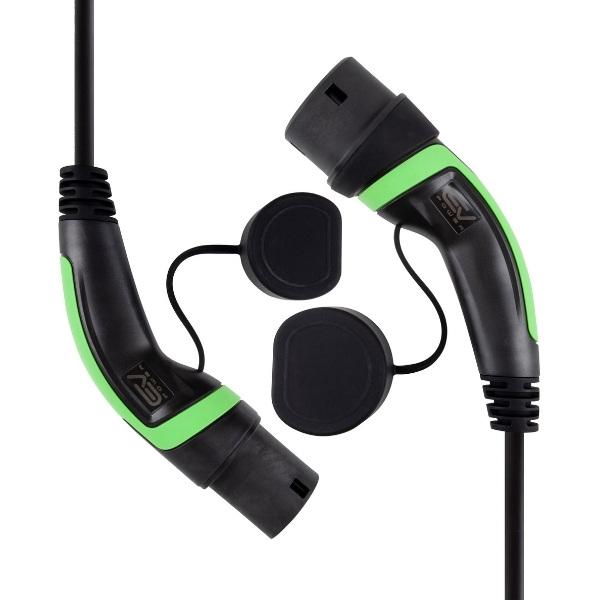

Type 2 to Type 2, 32A three phase, 22 kW (5m / 10m)
The Renault Kangoo accepts up to 22 kW on AC. The Z.E. 33 van is 7 kW and the E-Tech from 2022 goes up to 22 kW. The 22 kW cable matches the highest rate the model reaches, and a three-phase supply is where that rate is actually reachable.
If it only ever charges at home, buy down. A house supply is single phase, so the ceiling is 7.4 kW, and the 32A single-phase cable (5m / 10m / 15m / 20m) hands over every watt of it.
Three electric Kangoos have been sold in the UK and they do not all take the same cable, so check the year on your V5 before ordering.

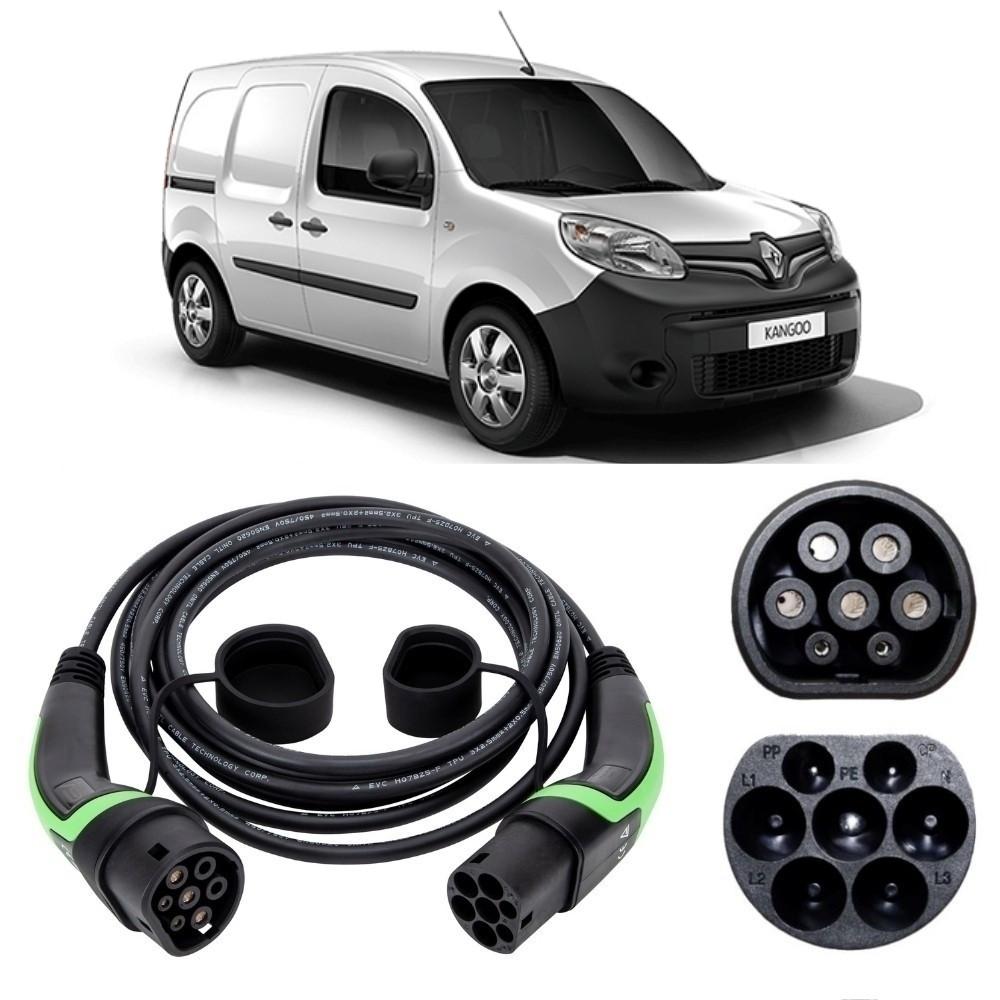

The Kangoo Z.E. 33, built from 2017 to 2021, is the van this page is written for. It uses a Type 2 inlet with a 7.4 kW onboard charger, so a Type 2 to Type 2 cable at 32A is what you want. Its 31 kWh usable battery goes from flat to full in about 4 hours 45 minutes, so a van back at the yard at six in the evening is ready long before the first job.
The current Kangoo E-Tech, from 2022, is also Type 2 but carries a 22 kW three phase charger and a 45 kWh usable battery. On a single phase supply, which is what almost every house and small unit has, you get 7.4 kW and about 6 hours 45 minutes. If your depot genuinely has three phase power, the 22kW cable is one of the few real upgrades on the market: the same battery fills in roughly 2 hours 15 minutes, which turns a lunch break into a useful charge.
The older Kangoo Z.E. of 2011 to 2017 is the exception. It uses a Type 1 socket and none of the cables on this page will plug into it. You need a Type 1 to Type 2 cable, which is a separate product. Neither of the two older vans has any rapid charging, so AC is all you have.
Length matters more on a van than on a car. A Kangoo reversed against a wall, parked behind another vehicle, or sharing a yard post with a colleague can easily need more than five metres. 10m is the safe choice for depot and kerbside work, while 5m is fine if the van always sits nose in beside its own charge point. We also stock 15m and 20m for larger sites, and the longer leads coil into the load bay without eating shelf space.
Diesel and petrol Kangoos have no charging port and need nothing from us.
Our Type 2 to Type 2 cables are IP55 rated and our 3 pin cables are IP67. Both carry a 2 year manufacturer's warranty, and every order ships with free next working day UK delivery.
Kangoo Z.E. 33 Phase 2, 7.4 kW, 2017 to 2021, 31 kWh usable
| Cable Type | Max Charge Rate | Empty to Full | Verdict |
|---|---|---|---|
| Type 2 to 3 Pin (5m / 10m) | 2.3 kW | 15h 15m | Too long for a working van |
| Type 2 to Type 2, 16A (5m / 10m) | 3.7 kW | 9h 30m | Doubles the charge for no reason |
| Type 2 to Type 2, 32A (5m / 10m) | 7.4 kW | 4h 45m | Best fit |
| Type 2 to Type 2, 32A three phase (5m / 10m) | 7.4 kW, van limited | 4h 45m | No gain on this van |
Kangoo E-Tech Electric, 22 kW three phase, 2022 onwards, 45 kWh usable
| Cable Type | Max Charge Rate | Empty to Full | Verdict |
|---|---|---|---|
| Type 2 to 3 Pin (5m / 10m) | 2.3 kW | 22h 00m | Emergency use |
| Type 2 to Type 2, 16A (5m / 10m) | 3.7 kW | 13h 45m | Longer than an overnight stand |
| Type 2 to Type 2, 32A (5m / 10m) | 7.4 kW | 6h 45m | Best fit for a single phase depot |
| Type 2 to Type 2, 32A three phase (5m / 10m) | 22 kW | 2h 15m | Buy it if the yard has three phase |
We pride ourselves on the quality of our cables. Every cable comes with a 2 year manufacturer's warranty, and the jacket will survive being driven over, though we would rather you did not make a habit of it.
Protection against pressure

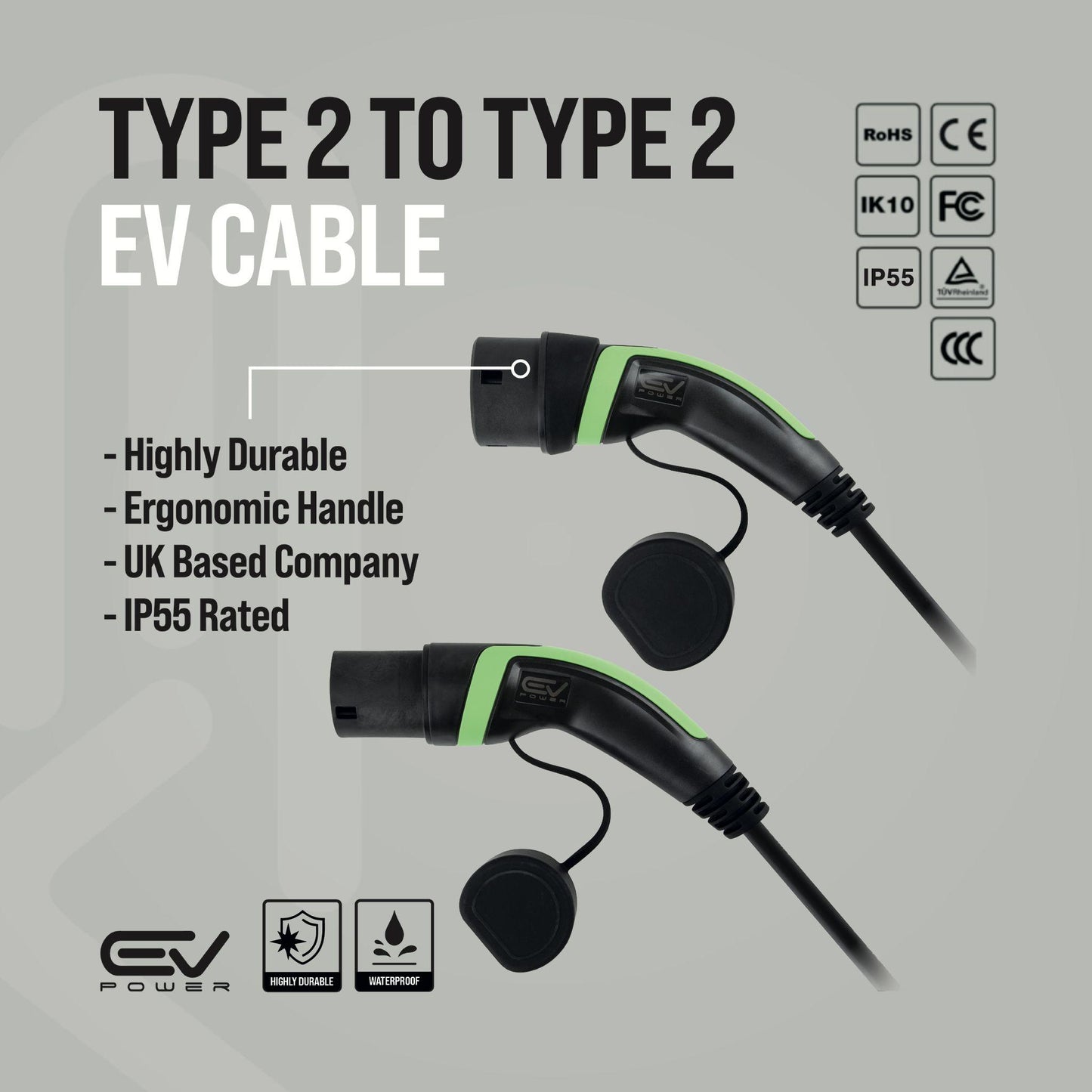

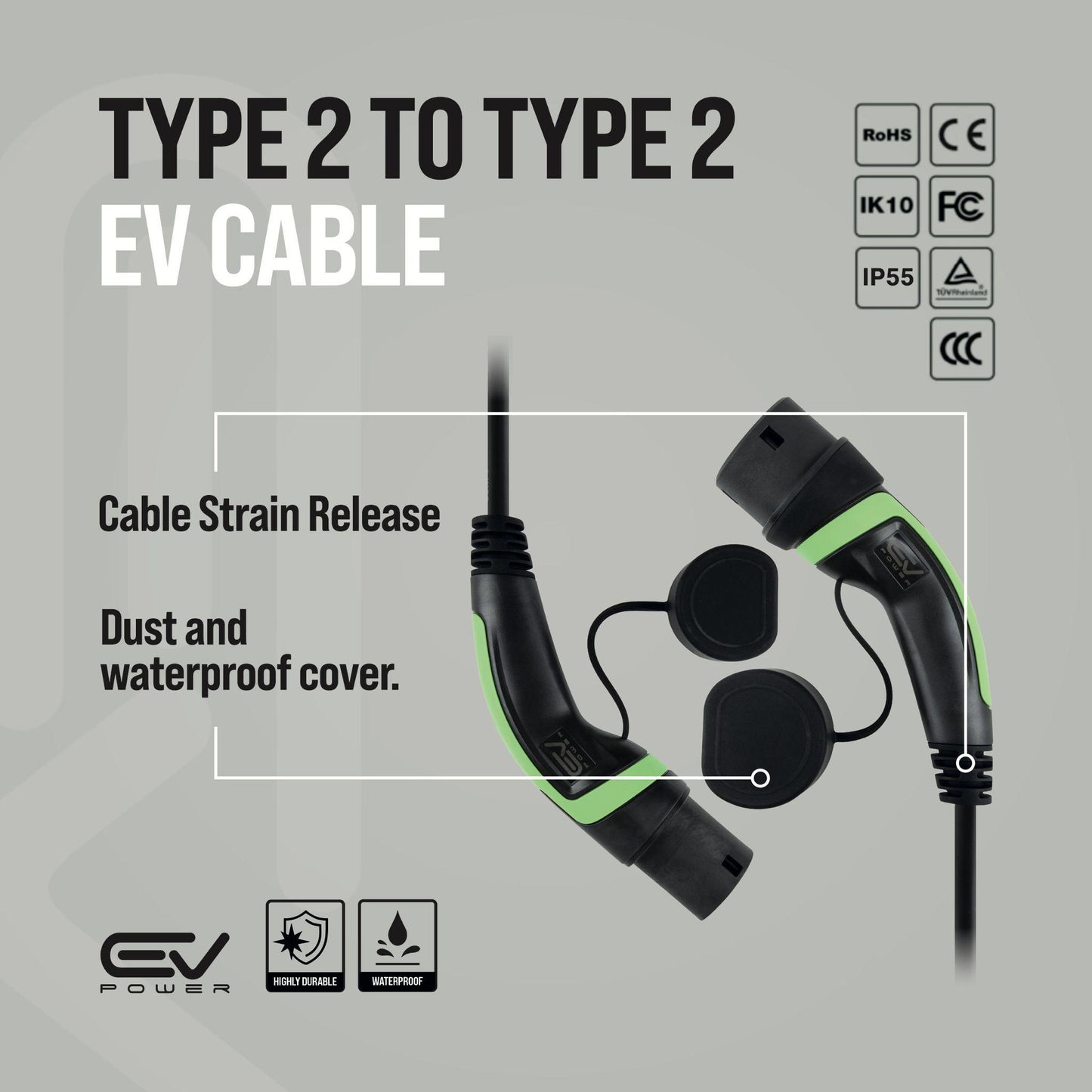

Our cables are safe to use whatever the weather. Type 2 to Type 2 cables are IP55 rated, CE marked, and work from -30°C to +50°C. Type 2 to 3 pin cables are IP67 rated, CE marked and work from -30°C to +60°C.
Protection against temperature
Our cables fit any electric car or plug-in hybrid with a Type 2 inlet, including Audi, BMW, Volvo, Mini, Mercedes, Kia, Hyundai, Volkswagen, Smart and Toyota. Use our car reg checker to confirm your car.
Compatible with all Type 2 cars
A Type 2 to Type 2 cable at 32A. The Z.E. 33, sold from 2017 to 2021, has a 7.4 kW onboard charger and a 31 kWh usable battery, so a 32A lead takes it from empty to full in about 4 hours 45 minutes. A 16A cable would nearly double that for no good reason.
No. Kangoos built between 2011 and 2017 use a Type 1 socket, and every cable on this page ends in a Type 2 plug. You need a Type 1 to Type 2 cable, which we list as a separate product. Those vans charge at 3.7 kW, hold 22 kWh, and have no rapid charging at all.
Comfortably. A Z.E. 33 on a 32A cable is full in roughly 4 hours 45 minutes, and a Kangoo E-Tech on a single phase supply takes about 6 hours 45 minutes. Both fit inside a normal overnight stand, so vans plugged in at five in the afternoon are ready for a first job.
Yes, if the depot has three phase power. The E-Tech is one of very few vans with a 22 kW onboard charger, and on a three phase post its 45 kWh battery goes from empty to full in around 2 hours 15 minutes rather than 6 hours 45 minutes. On a single phase supply it changes nothing.
10m for most working vans. A shared yard post is rarely where you want to park, and reversing against a wall or sitting behind another vehicle eats the slack fast. 5m is enough only when the van always parks nose in beside its own charge point. We stock 15m and 20m for larger sites.
No. Petrol and diesel Kangoos of any year have no charging port, so nothing here will connect to them. Only the Z.E., the Z.E. 33 and the E-Tech electric vans plug in. If you cannot find a charging flap on the front or the wing of your van, it is not an electric model.
Showing both cable types. Choose a cable type above and this section will show just that specification.
Showing the specification for the cable type you have selected. Compare both cable types.
| Type 2 to Type 2 | Type 2 to 3 pin | |
|---|---|---|
| Charges from | A home wallbox or a public charge point | Any standard UK 3 pin socket, no wallbox needed |
| Max power | 3.7 kW at 16A, 7.4 kW at 32A, 22 kW on three phase | 2.4 kW |
| Speed at home | 7.4 kW on a 32A cable. UK homes are single phase, so an 11 kW or 22 kW car still draws 7.4 kW | 2.4 kW |
| Range per hour | About 12 miles at 3.7 kW, 25 miles at 7.4 kW | About 8 miles |
| Weatherproof rating | IP55 | IP67 |
| Temperature | -30°C to +50°C | -30°C to +60°C |
| Built to | IEC 62196-2:2016 2-IIb | IEC 62752:2016 / COR1:2019 |
| Certified | CE | CE |
| Best for | Your everyday charging cable | Backup, and away from home where there is no wallbox |
| Choose this | Select Type 2 to Type 2 for the Renault Kangoo ZE | Select Type 2 to 3 pin for the Renault Kangoo ZE |
| Full range | All Type 2 to Type 2 cables | All Type 2 to 3 pin cables |

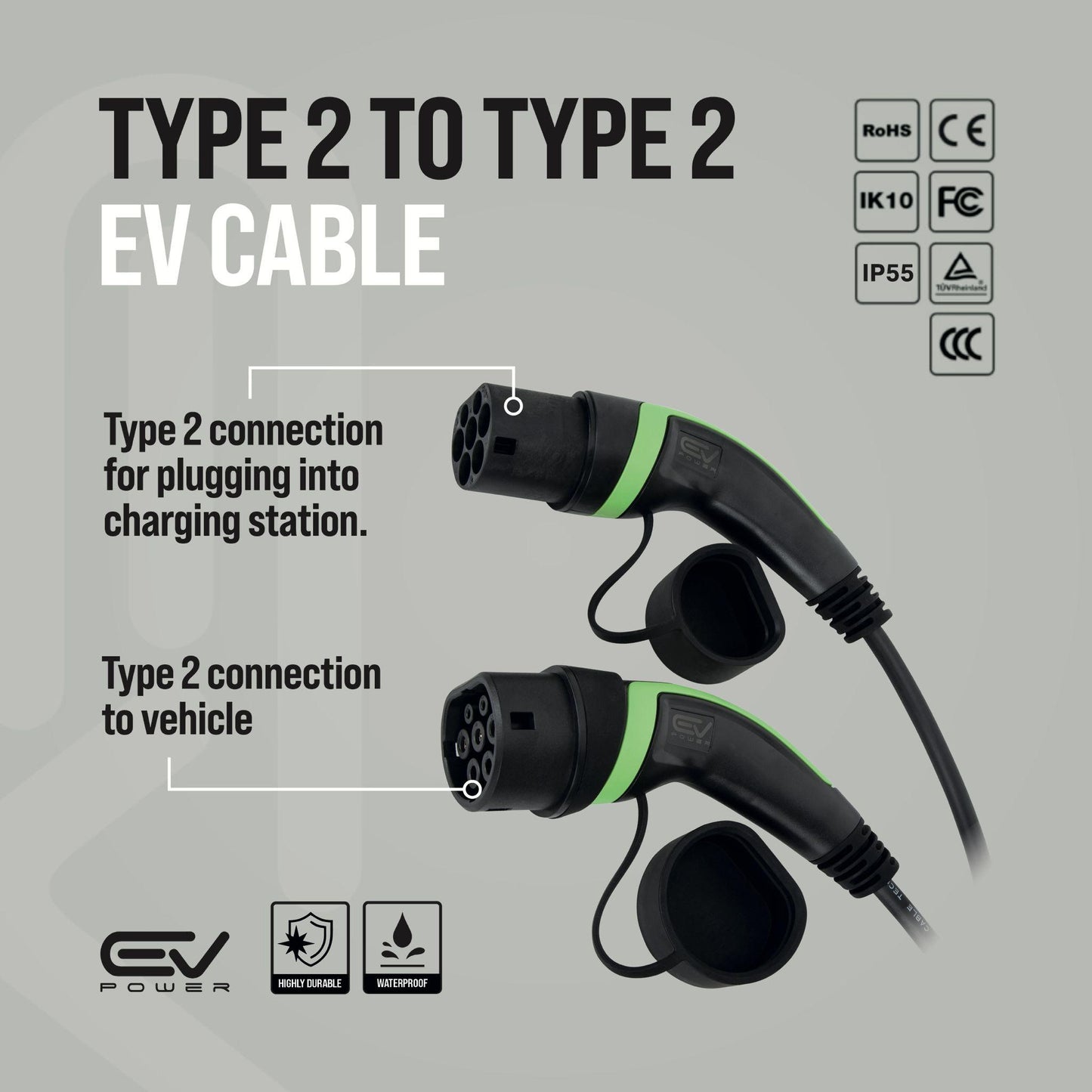

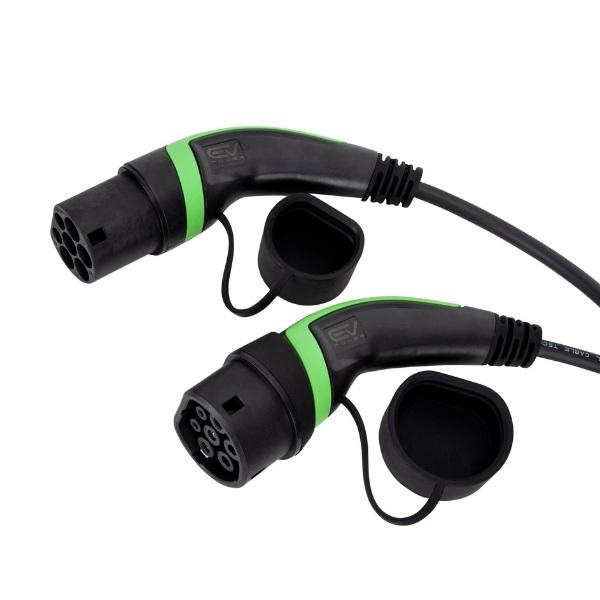

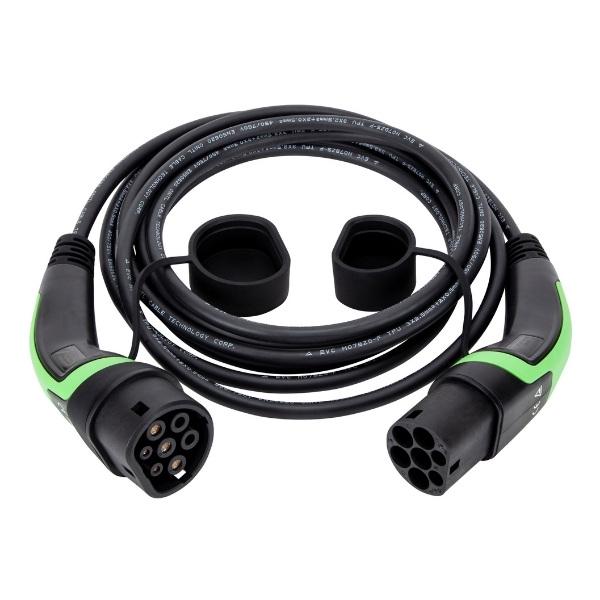

| Connector type | Type 2 to Type 2 (IEC 62196-2:2016 2-IIb, Mennekes) |
| Rated current | 16A or 32A single phase, or 32A three phase |
| Max power | 3.7 kW at 16A, 7.4 kW at 32A, 22 kW on three phase |
| Speed at home | 7.4 kW. UK homes are single phase, so an 11 kW or 22 kW car still draws 7.4 kW |
| Range per hour | About 12 miles at 3.7 kW, 25 miles at 7.4 kW |
| Slower supplies | Fine. Charging runs at the lowest limit of the car, the charge point and the cable, so a 32A cable works normally on a 16A supply |
| Voltage | AC 250V single phase, AC 400V three phase, 50Hz |
| Signal current | 2A at 30V |
| Full range | All Type 2 to Type 2 cables |

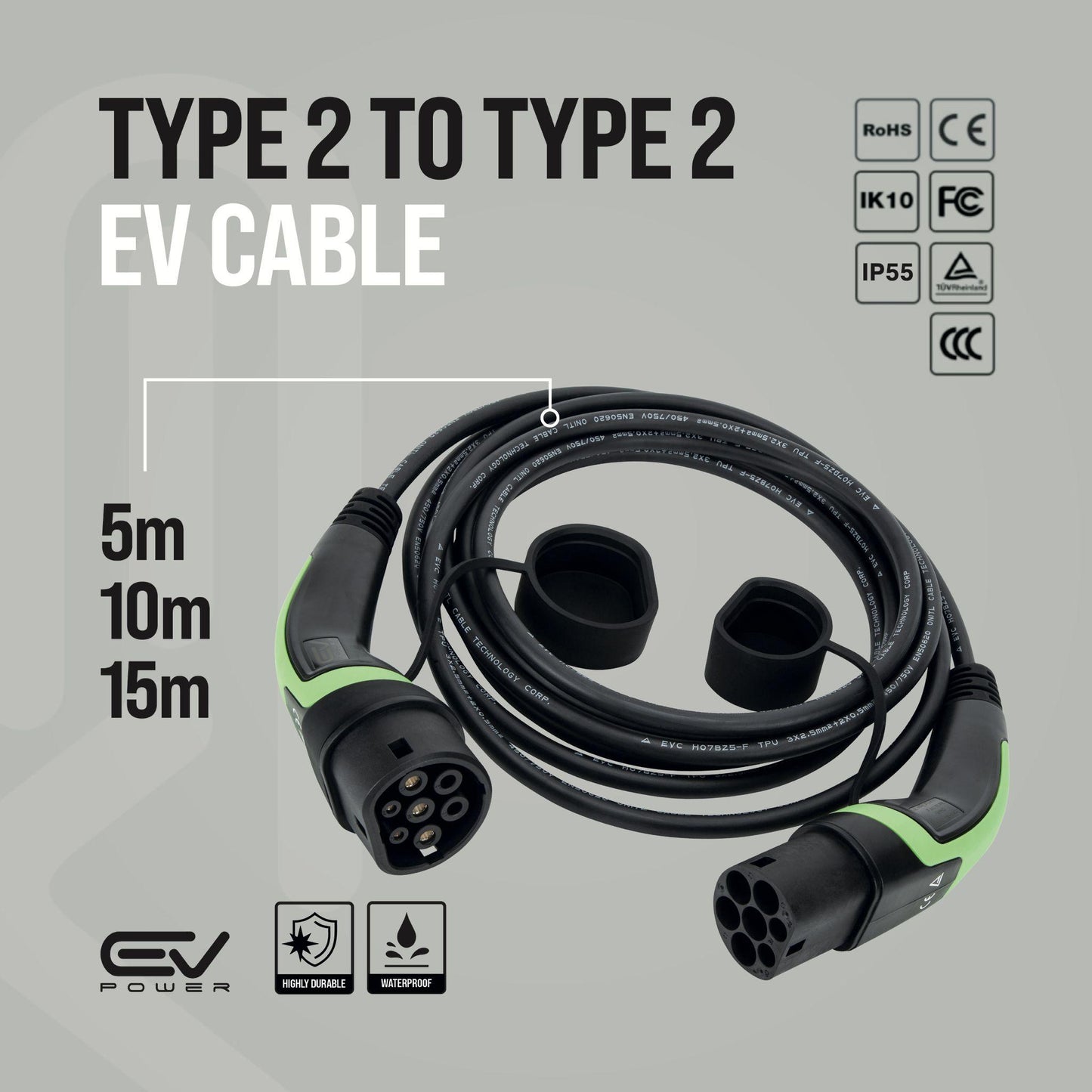

| Lengths | 5m, 10m, 15m, 20m |
| Conductors | 16A: 3 x 2.5mm² plus 2 x 0.5mm² 32A single phase: 3 x 6mm² plus 2 x 0.5mm² 32A three phase: 5 x 6mm² plus 1 x 0.5mm² |
| Insulation | XLPO |
| Sheath | TPU |
| Shell | Flame retardant thermoplastic, UL94-V0 |
| Pins | Copper alloy, silver plated |
| Colour | Black cable, green and black connectors |
| Weatherproof rating | IP55 in use |
| Temperature | -30°C to +50°C |
| Mechanical life | Over 1,000 connections |
| Impact | Survives a 1m drop and a 2 tonne vehicle driving over it |
| Plug force | Under 100N |
| Insulation resistance | Over 1,000 MΩ at DC 500V |
| Withstand voltage | 2,500V |
| Contact impedance | 0.5 mΩ maximum |
| Pin temp rise | Under 50K |
| Built to | IEC 62196-2:2016 2-IIb |
| Certified | CE |
| Connector type | Type 2 to 3 pin, BS1363 13A plug |
| Socket needed | Any standard UK 3 pin socket. No wallbox needed |
| Max power | 2.4 kW |
| Current | 6A to 13A, set on the control box |
| Voltage | 230V AC, 50Hz |
| Range per hour | About 8 miles |
| Overnight | About 100 miles in 12 hours |
| Full range | All Type 2 to 3 pin cables |
| Weatherproof rating | IP67 |
| RCD | Built in, Type B |
| Protection | Over and under voltage, overload, short circuit, earth leakage, over temperature and lightning surge |
| Built to | IEC 62752:2016 / COR1:2019 |
| Certified | CE |
| Display | OLED screen: charging time, energy used, live voltage, current and power, and lifetime total |
| Controls | Touch key, LED status light, adjustable current, delay timer |
| Box size | 200 x 90 x 52 mm |
| Weight | Up to 2.1 kg |
| Cooling | Natural air |
| Standby power | Under 0.5 W |
| Connectivity | None. No WiFi, Bluetooth, 4G or Ethernet |
| Lengths | 5m, 10m, 15m |
| Temperature | -30°C to +60°C |
| Humidity | Up to 95% |
| Max altitude | 2,000m |
| Materials | Tempered glass and PC control box |
| Colour | Black |
| In the box | Charging cable only. The premium storage carry bag is sold separately |
| Warranty | 2 year warranty |
| Delivery | Free next working day UK delivery |
Three different electric Kangoos have been sold here and they take three different cables, so check the year before ordering. The Phase 1 Kangoo Z.E. of 2011 to 2017 uses a Type 1 socket, which will not accept the Type 2 cable that fits almost everything else. The Phase 2 Kangoo Z.E. 33 of 2017 to 2021 moved to Type 2 with a 7.4 kW charger. And the current Kangoo E-Tech is Type 2 with a 22 kW charger, one of the few vans on the market where a three-phase cable is a genuine upgrade at a depot with three-phase power. Neither of the two older vans has any rapid charging at all.
| Badge | Years | Battery | Connector | Max AC charge speed | Cable we recommend |
|---|---|---|---|---|---|
| Kangoo Z.E. Phase 1 | 2011 to 2017 | 22 kWh usable | Type 1. No rapid DC | 3.7 kW. Some sources claim up to 7 kW, which we have not been able to confirm | Type 1 to Type 2, 32A, which covers either figure |
| Kangoo Z.E. 33 Phase 2 | 2017 to 2021 | 31 kWh usable, 33 nominal | Type 2. No rapid DC | 7.4 kW single phase | Type 2 to Type 2, 32A |
| Kangoo E-Tech electric | 2022 onwards | 45 kWh usable | Type 2, plus CCS rapid at 80 kW | 22 kW three phase as standard | Type 2 to Type 2, 32A for home. 32A three phase to use the full 22 kW at a three-phase depot |
| Kangoo diesel or petrol, any year | Any year | None | No charging port | Does not plug in | No cable needed |
Free Next Working Day Delivery
Use our car reg compatibility checker to make sure your getting the right charger for you vehicle.
Cable Type:
How do I Choose?The cable connection depends on what connection type your car accepts. If you don't know, use our handy car reg checker.
Cable Length:
Sizing guideWe offer different length cables to suit your needs, whether you park next to your charger at home or at the office.
Rated Power (Charge Speed):
How do I Choose?Rated power is the fastest the cable can charge. Match it to your car and your charge point. A higher rated cable still works at every lower speed.
Accessory Add-Ons

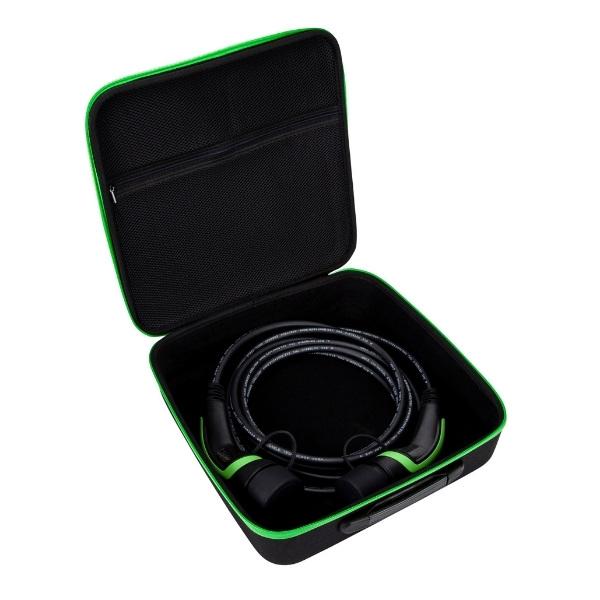

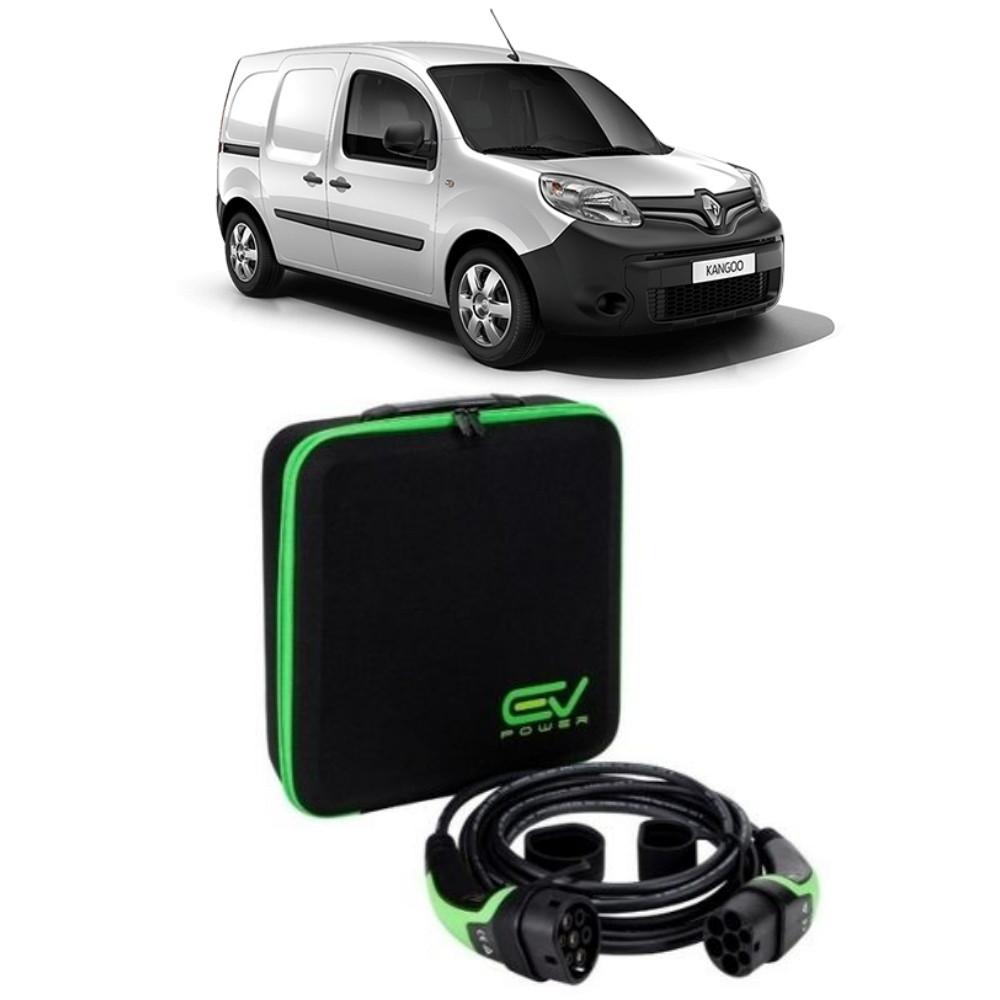

We offer a range of products to help store and transport your charging cable. Choose from the accessories below:
