An MG S5 EV charging cable has to work to around 7 kW, single phase, which is where this car's onboard AC charger stops. Published figures land variously on 7, 7.2 and 7.4 kW, so treat 7 kW as the working number rather than picking a decimal that sources disagree on. What every source does agree on is that the charger is a single-phase unit and that 11 kW is not available on any trim. The 47.1 kWh and 62.1 kWh batteries both accept power at that same rate.
The reason this page exists is what MG now leaves out of the boot. An S5 EV is handed over with a Type 2 to Type 2 lead for wallboxes and public posts, and nothing whatsoever for a household socket. MG has stopped including the three-pin granny charger it once supplied, something owners and UK reviewers have been reporting since the car reached showrooms in April 2025. If you have collected one and found a single cable bag instead of two, nothing has been forgotten. That is the current specification.

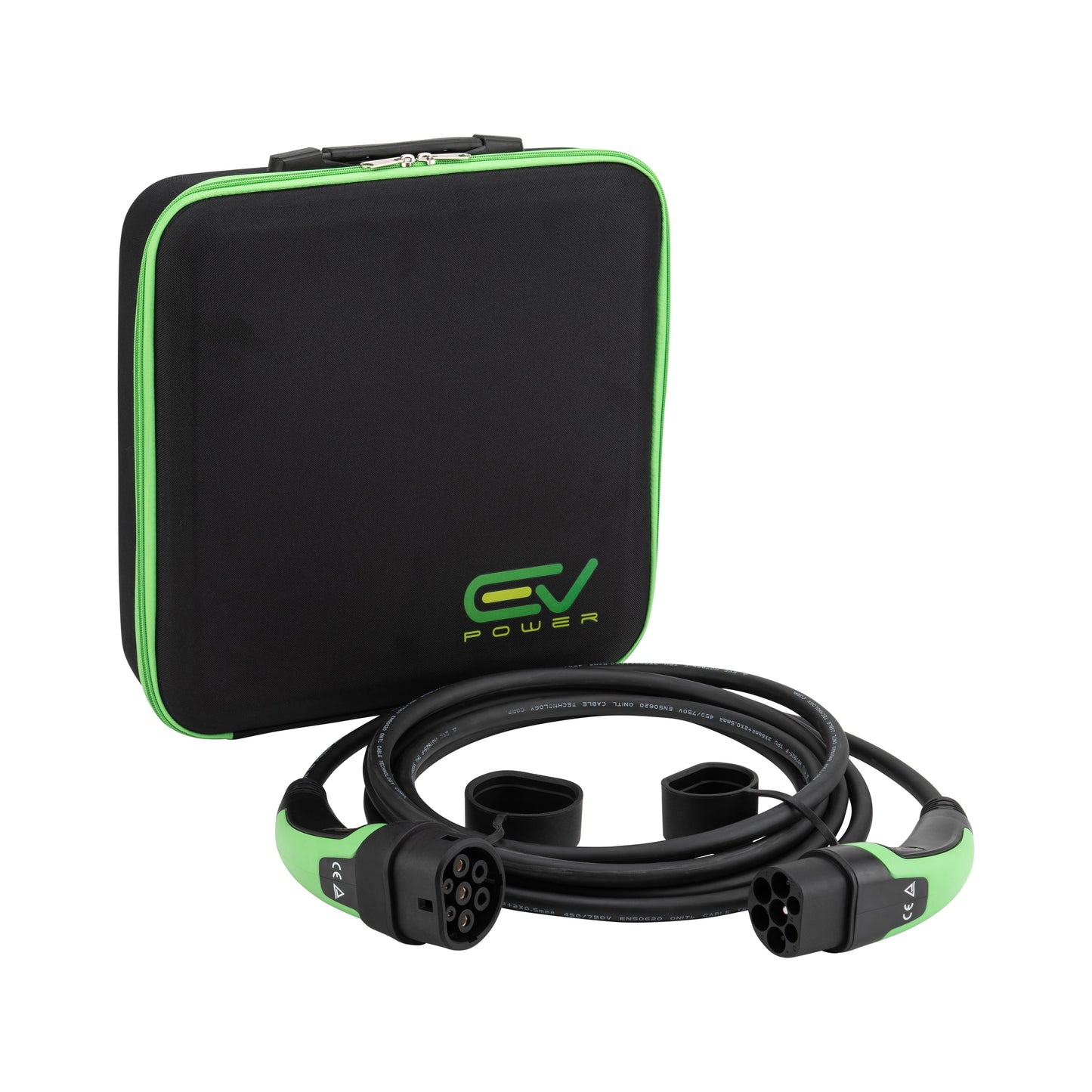

Every UK MG S5 EV uses a Type 2 to Type 2 Charging Cable, Type 2 for AC and CCS2 for DC. There is no hybrid or petrol S5, so every car wearing the badge plugs in, which was not true of the MG ZS line-up this model replaces.

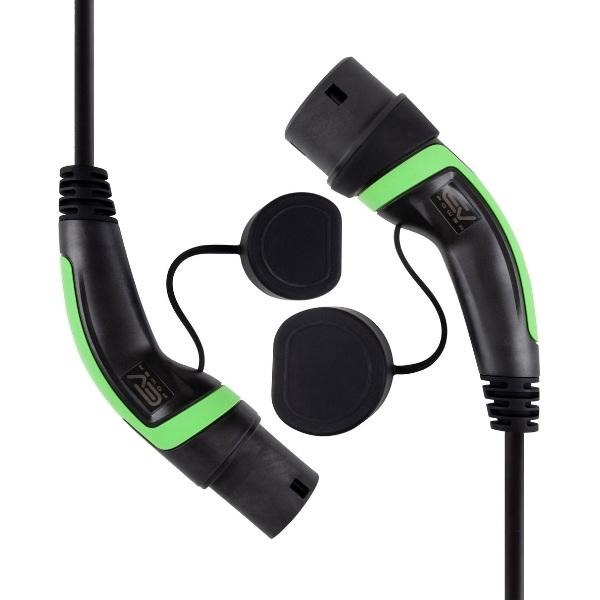

This is a car to buy the plain 32A cable for. Our 32A single-phase Type 2 to Type 2 cable carries 7.4 kW, comfortably more current than the S5 EV will ever draw, so it hands over the full 7 kW and fills the 62.1 kWh Long Range battery in about 10 hours. The 32A three-phase cable costs more and returns nothing at all here, and the reason is worth stating precisely: this is not about your house having one phase instead of three. The S5 EV's charger is itself a single-phase device. Park it at a 22 kW three-phase post with the expensive lead in your hand and the car still takes 7 kW and still needs its 10 hours. No supply anywhere in the country makes that cable pay on this model.
Dropping to a 16A cable costs real time on the bigger pack. At 3.7 kW the Long Range S5 EV wants 19 hours from empty against 10, and adds about 18 miles an hour instead of about 34. A five hour off-peak slot is the difference between roughly 170 miles and roughly 90. The Standard Range car suffers less, 14 hours 30 mins against 7 hours 30 mins, but that is still the wrong side of a single night.
Which brings this back to the empty space in the boot. A Type 2 to 3-Pin cable is the item MG has stopped providing, and buying one restores the car's ability to take a charge from any 13A socket at 2.3 kW, worth around 11 miles an hour on the Long Range. It is not a way to run the car day to day. It is what covers the fortnight between collection and the wallbox appointment, a night at a cottage with a socket in the outbuilding, or a driveway where the wallbox has tripped and nobody is coming until Monday. Sealed to IP67, adjustable between 6A and 12A for tired wiring.
MG's other electric cars ask different things of a lead. The MG ZS EV is the car the S5 EV succeeds, the MG5 estate sits alongside it, and the full MG charging cable range gathers the lot together.
Length follows the flap, which three separate sources put on the rear nearside wing, back left viewed from behind the car. Pulled forward into a driveway, that corner ends up the best part of four and a half metres from the front bumper and further still from a wallbox mounted by the front door, so 10m is the sensible default and 5m only really works if you reverse in and the box sits near the back of the car. Take a second measurement while the granny cable is doing the work, from the parking spot to the nearest 13A socket, which is often in a garage on the wrong side of the house. That, and shared parking, is what 15m and 20m are for. Build standard: IEC 62196 Type 2, CE certified. IP55 sealing on the Type 2 to Type 2 lead and IP67 on the 3-Pin. Working range -30C to +50C, or +60C for the 3-pin. Warranty is 2 years, manufacturer's, and UK delivery is free next working day.
Maximum onboard AC charging speed: around 7 kW, single phase
| Cable Type | Max Charge Rate | Empty to Full | Range Added Per Hour | Verdict |
|---|---|---|---|---|
| Type 2 - 1-Phase, 16A | 3.7 kW | 14 hours 30 mins | approx. 17 miles | Too slow for this battery |
| Type 2 - 1-Phase, 32A | around 7 kW (car limited) | 7 hours 30 mins | approx. 31 miles | Best Fit at home |
| Type 2 - 3-Phase, 32A | around 7 kW (car limited) | 7 hours 30 mins | approx. 31 miles | No gain, do not buy |
| Type 2 to 3-Pin | 2.3 kW | 23 hours 15 mins | approx. 10 miles | Buy separately, not supplied |
Maximum onboard AC charging speed: around 7 kW, single phase
| Cable Type | Max Charge Rate | Empty to Full | Range Added Per Hour | Verdict |
|---|---|---|---|---|
| Type 2 - 1-Phase, 16A | 3.7 kW | 19 hours | approx. 18 miles | Too slow for this battery |
| Type 2 - 1-Phase, 32A | around 7 kW (car limited) | 10 hours | approx. 34 miles | Best Fit at home |
| Type 2 - 3-Phase, 32A | around 7 kW (car limited) | 10 hours | approx. 34 miles | No gain, do not buy |
| Type 2 to 3-Pin | 2.3 kW | 30 hours 30 mins | approx. 11 miles | Buy separately, not supplied |
Hourly mileage in the Long Range table uses the SE's 298 mile WLTP certification; the Trophy's larger wheels bring that to 288 miles, roughly three per cent lower across every row. Expect lower figures in winter and on long fast runs.
We pride ourselves on the quality of our cables. Every cable comes with a 2 year manufacturer's warranty, and the jacket will survive being driven over, though we would rather you did not make a habit of it.
Protection against pressure
Our cables are safe to use whatever the weather. Type 2 to Type 2 cables are IP55 rated, CE marked, and work from -30°C to +50°C. Type 2 to 3 pin cables are IP67 rated, CE marked and work from -30°C to +60°C.
Protection against temperature
Our cables fit any electric car or plug-in hybrid with a Type 2 inlet, including Audi, BMW, Volvo, Mini, Mercedes, Kia, Hyundai, Volkswagen, Smart and Toyota. Use our car reg checker to confirm your car.
Compatible with all Type 2 cars
The three-pin granny charger. An MG S5 EV arrives with a Type 2 to Type 2 lead only, because MG has stopped supplying the domestic-socket cable that used to come with its electric cars. Nothing in the boot will connect the car to a normal 13A socket until you buy a Type 2 to 3-Pin cable separately, which catches out owners waiting on a wallbox installation.
An MG S5 EV owner should buy a 32A single-phase Type 2 to Type 2 cable, and most should add a Type 2 to 3-Pin lead because the car no longer comes with one. The 32A rating covers the roughly 7 kW the S5 EV's onboard charger accepts with headroom to spare, and works unchanged on untethered public AC posts.
Yes, entirely. An MG S5 EV has a single-phase onboard charger rated at around 7 kW, so a 22 kW three-phase cable cannot make it charge any faster in any location, including a workplace or public post that genuinely has three phases available. The 62.1 kWh battery takes about 10 hours from empty on either lead. Spend the difference on the three-pin cable MG left out instead.
No, both MG S5 EV batteries charge at the same rate, because the SE Standard Range and the Long Range cars share one onboard charger of around 7 kW. Only the finishing time moves: 7 hours 30 mins from empty for the 47.1 kWh pack and about 10 hours for the 62.1 kWh pack. Trim level has no bearing on which cable to order.
A Long Range MG S5 EV picks up roughly 170 miles across a five hour off-peak window on a 32A cable, at about 34 miles for every hour connected. The Standard Range car gains about 155 miles in the same five hours, close to three quarters of its 211 mile WLTP figure. Use a 16A cable and those five hours return about 90 miles instead.
Ten metres suits most MG S5 EV owners. The charge flap is on the rear nearside wing, so a car parked nose in leaves that socket at the far end from a wallbox by the door, while reversing in brings it close. Worth measuring twice on this car: once to the wallbox, and once to whichever indoor socket you will be using for the three-pin cable in the meantime.
Showing both cable types. Choose a cable type above and this section will show just that specification.
Showing the specification for the cable type you have selected. Compare both cable types.
| Type 2 to Type 2 | Type 2 to 3 pin | |
|---|---|---|
| Charges from | A home wallbox or a public charge point | Any standard UK 3 pin socket, no wallbox needed |
| Max power | 3.7 kW at 16A, 7.4 kW at 32A, 22 kW on three phase | 2.4 kW |
| Speed at home | 7.4 kW on a 32A cable. UK homes are single phase, so an 11 kW or 22 kW car still draws 7.4 kW | 2.4 kW |
| Range per hour | About 12 miles at 3.7 kW, 25 miles at 7.4 kW | About 8 miles |
| Weatherproof rating | IP55 | IP67 |
| Temperature | -30°C to +50°C | -30°C to +60°C |
| Built to | IEC 62196-2:2016 2-IIb | IEC 62752:2016 / COR1:2019 |
| Certified | CE | CE |
| Best for | Your everyday charging cable | Backup, and away from home where there is no wallbox |
| Choose this | Select Type 2 to Type 2 for the MG S5 | Select Type 2 to 3 pin for the MG S5 |
| Full range | All Type 2 to Type 2 cables | All Type 2 to 3 pin cables |

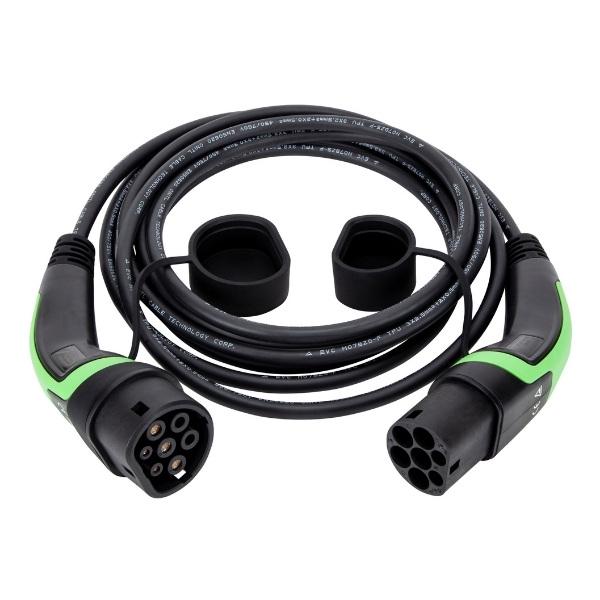

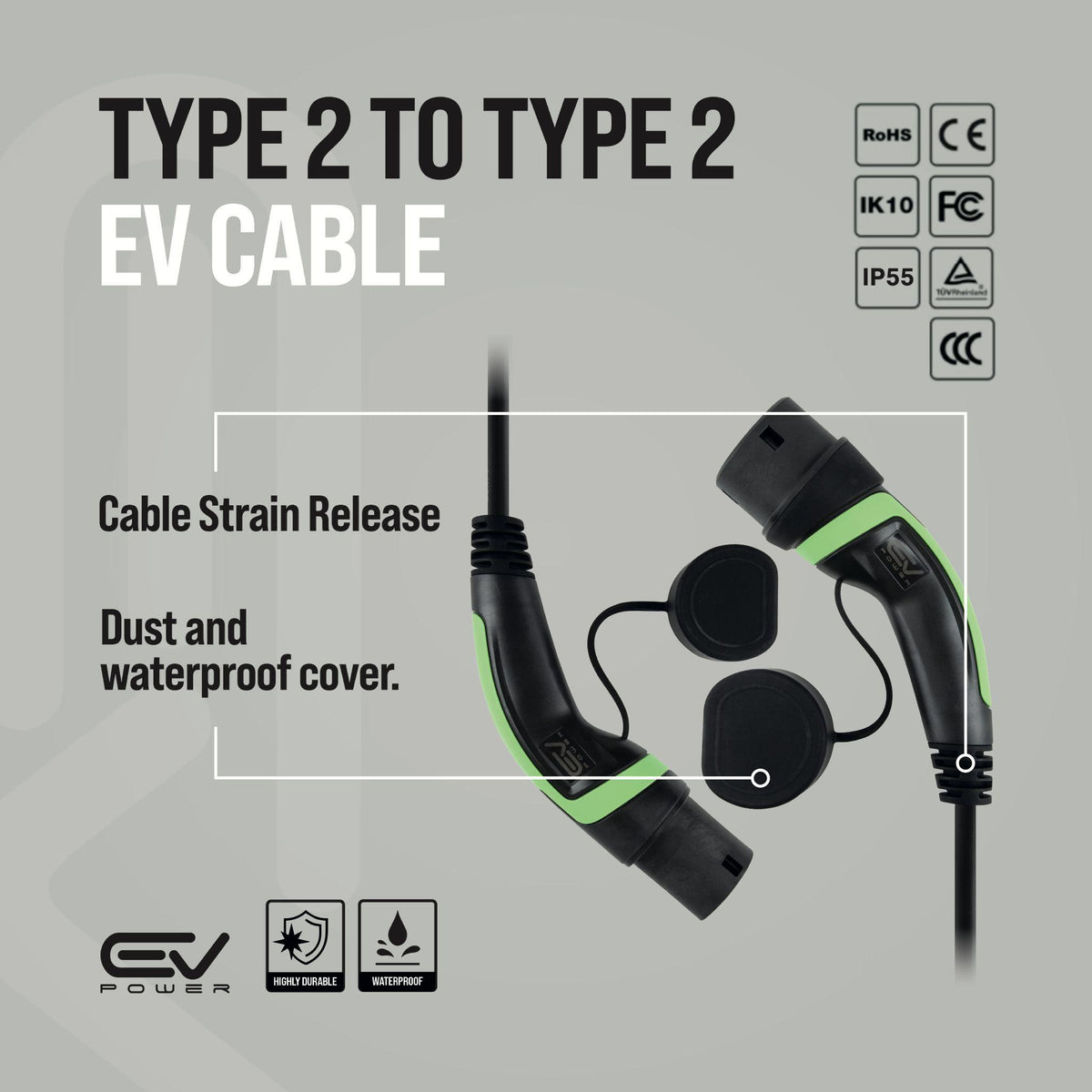

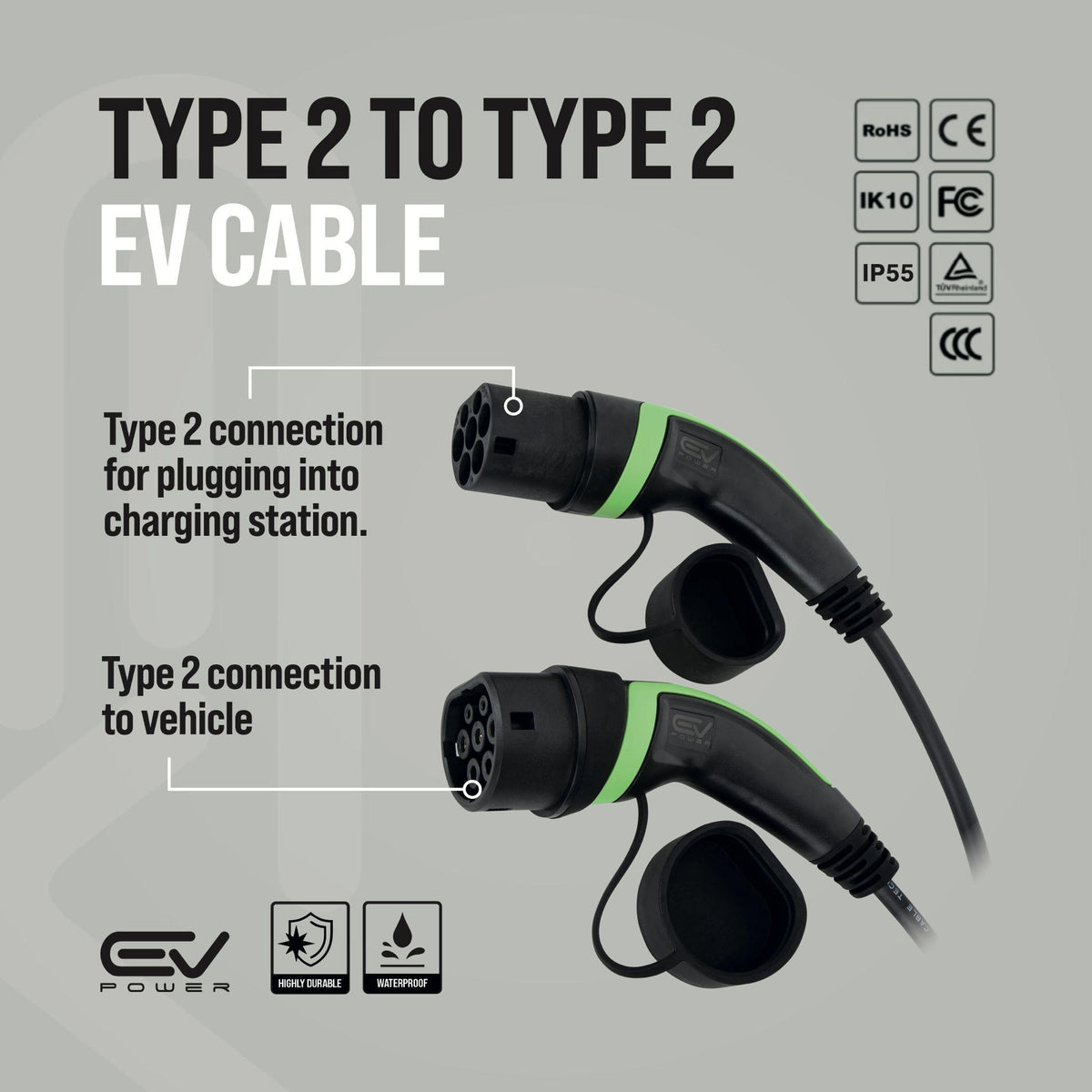

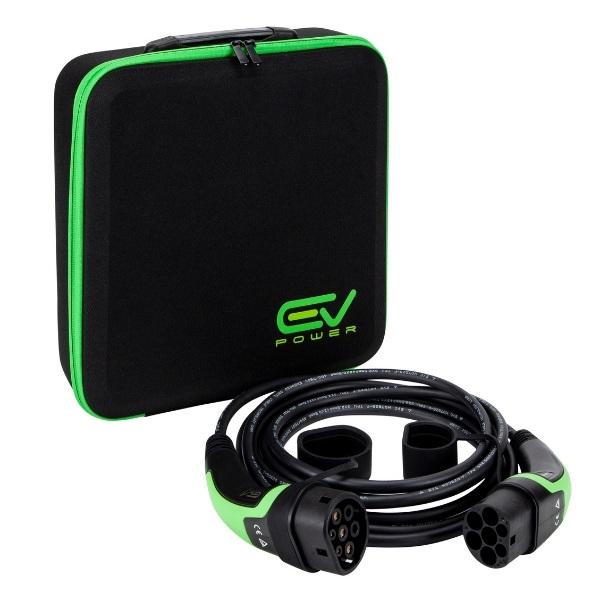

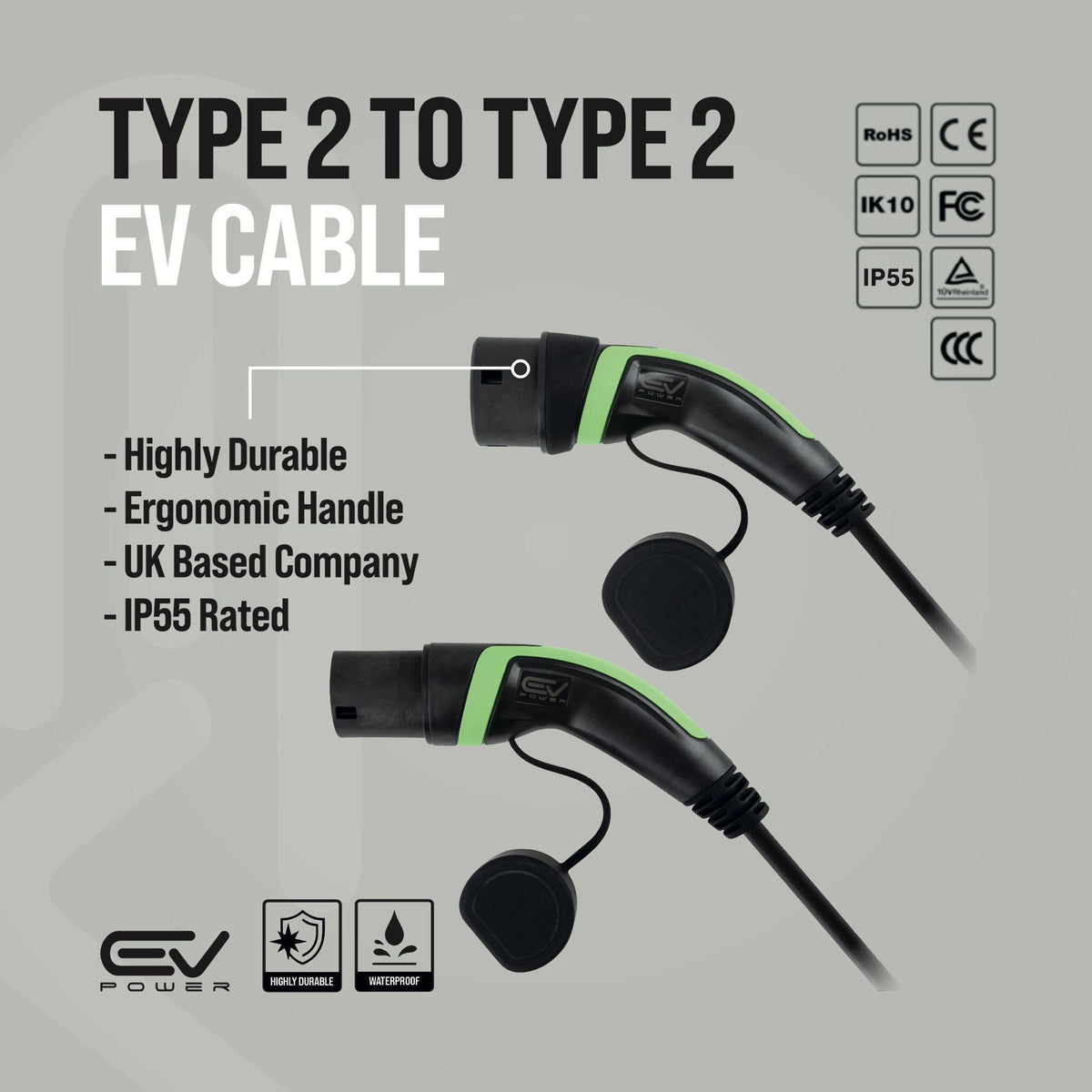

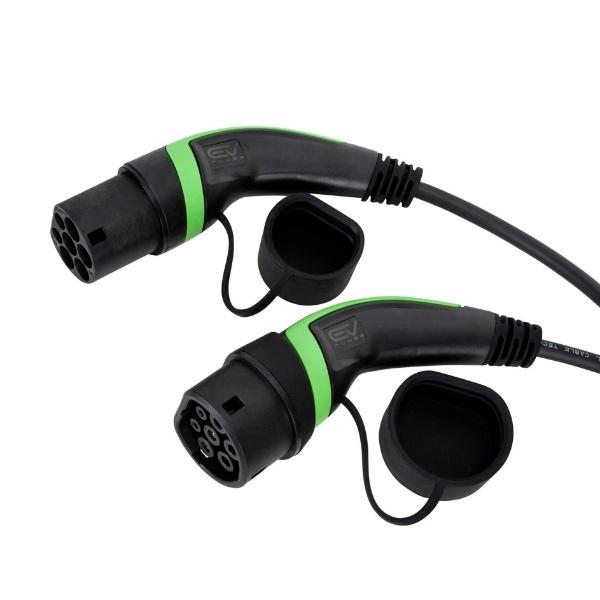

| Connector type | Type 2 to Type 2 (IEC 62196-2:2016 2-IIb, Mennekes) |
| Rated current | 16A or 32A single phase, or 32A three phase |
| Max power | 3.7 kW at 16A, 7.4 kW at 32A, 22 kW on three phase |
| Speed at home | 7.4 kW. UK homes are single phase, so an 11 kW or 22 kW car still draws 7.4 kW |
| Range per hour | About 12 miles at 3.7 kW, 25 miles at 7.4 kW |
| Slower supplies | Fine. Charging runs at the lowest limit of the car, the charge point and the cable, so a 32A cable works normally on a 16A supply |
| Voltage | AC 250V single phase, AC 400V three phase, 50Hz |
| Signal current | 2A at 30V |
| Full range | All Type 2 to Type 2 cables |

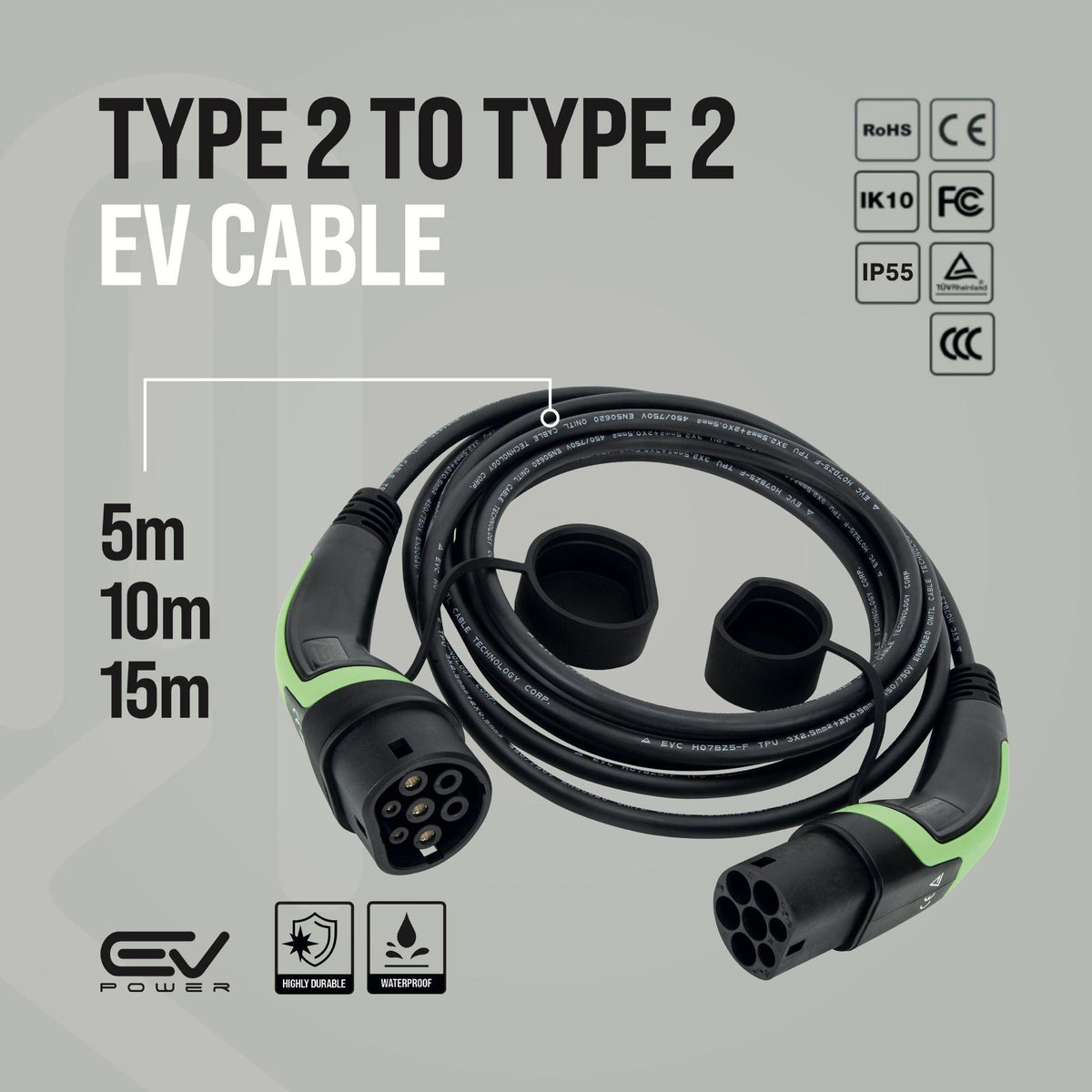

| Lengths | 5m, 10m, 15m, 20m |
| Conductors | 16A: 3 x 2.5mm² plus 2 x 0.5mm² 32A single phase: 3 x 6mm² plus 2 x 0.5mm² 32A three phase: 5 x 6mm² plus 1 x 0.5mm² |
| Insulation | XLPO |
| Sheath | TPU |
| Shell | Flame retardant thermoplastic, UL94-V0 |
| Pins | Copper alloy, silver plated |
| Colour | Black cable, green and black connectors |
| Weatherproof rating | IP55 in use |
| Temperature | -30°C to +50°C |
| Mechanical life | Over 1,000 connections |
| Impact | Survives a 1m drop and a 2 tonne vehicle driving over it |
| Plug force | Under 100N |
| Insulation resistance | Over 1,000 MΩ at DC 500V |
| Withstand voltage | 2,500V |
| Contact impedance | 0.5 mΩ maximum |
| Pin temp rise | Under 50K |
| Built to | IEC 62196-2:2016 2-IIb |
| Certified | CE |

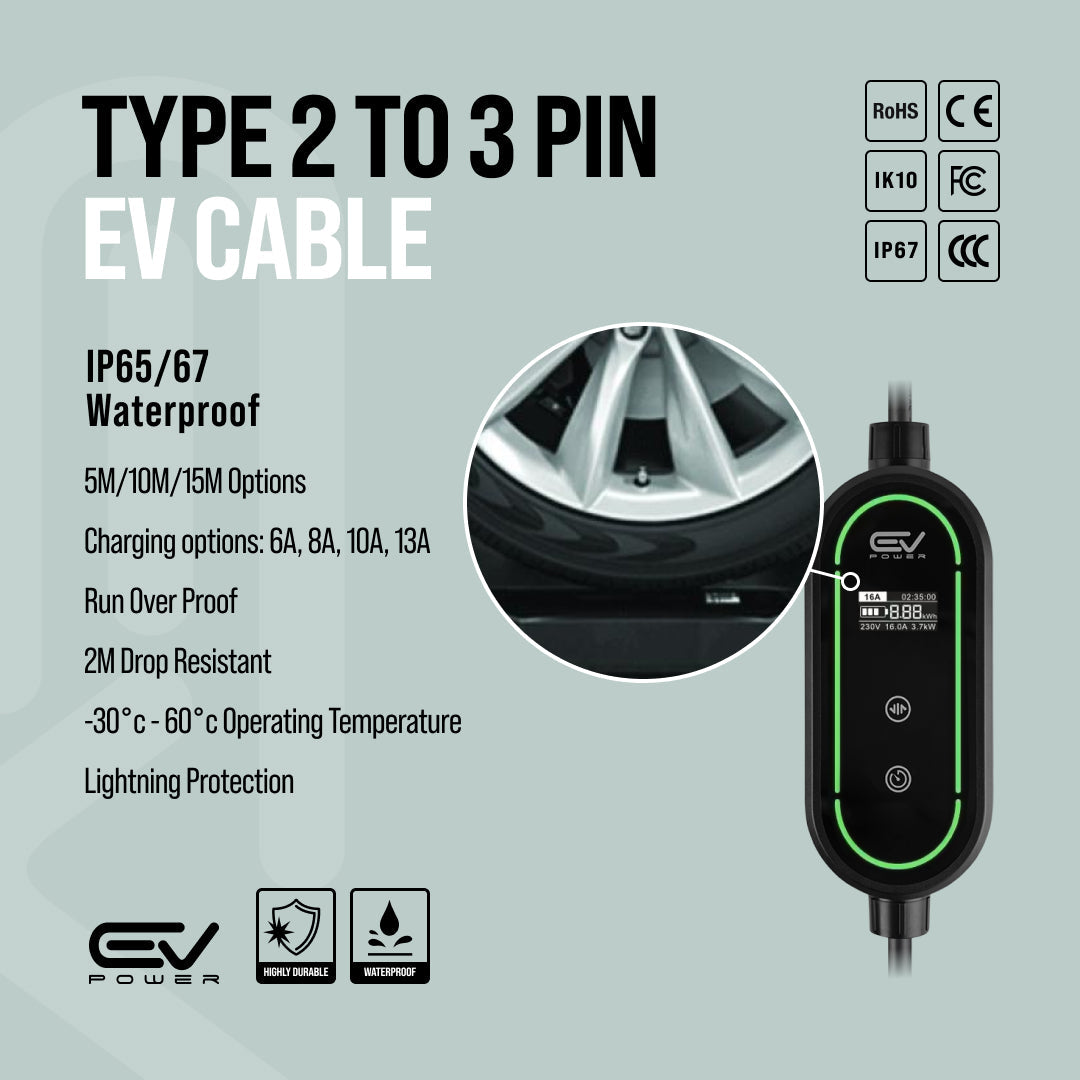

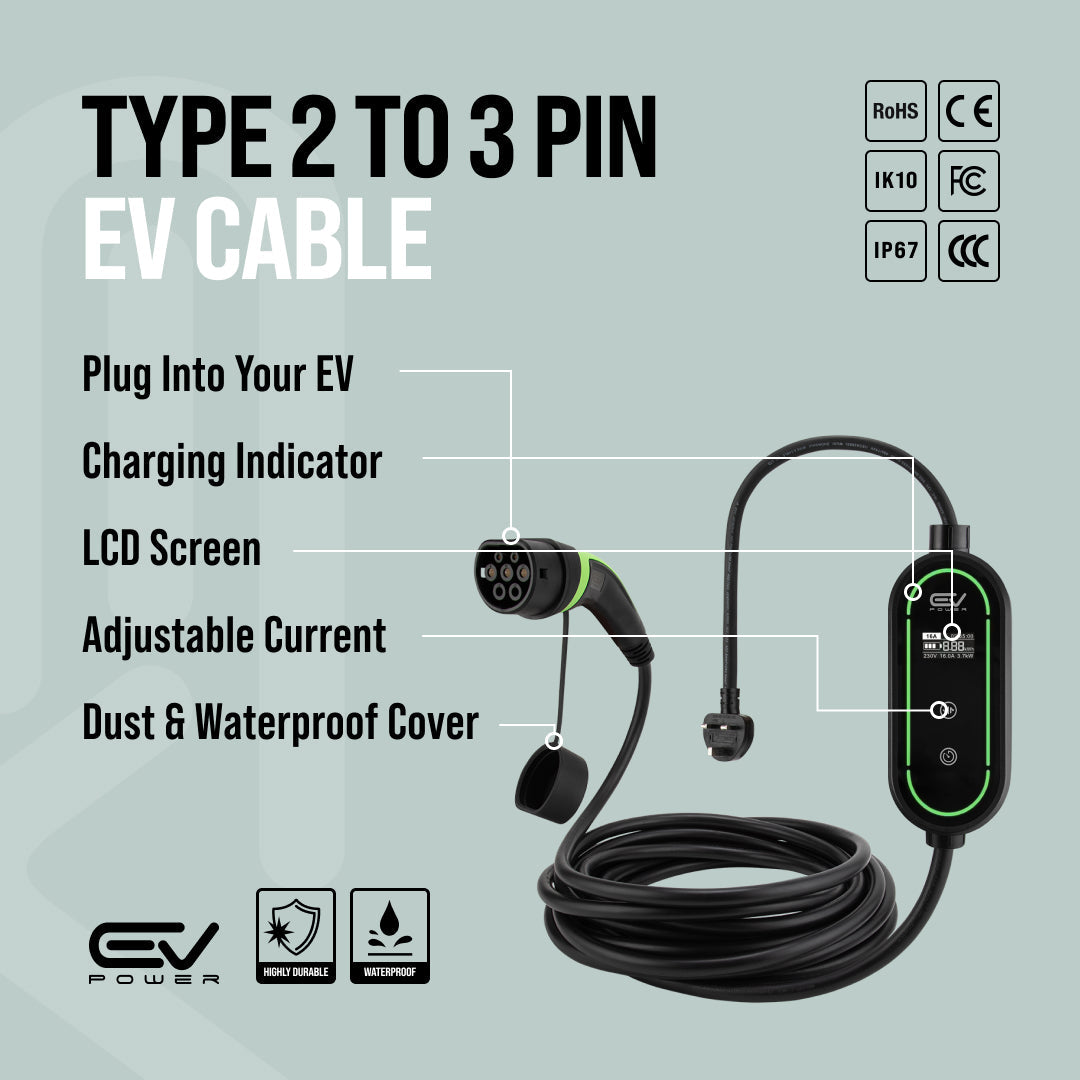

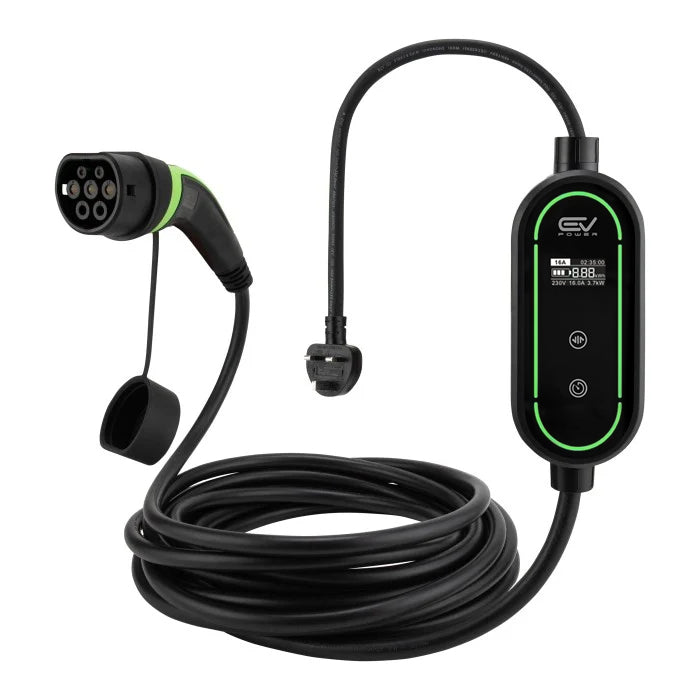

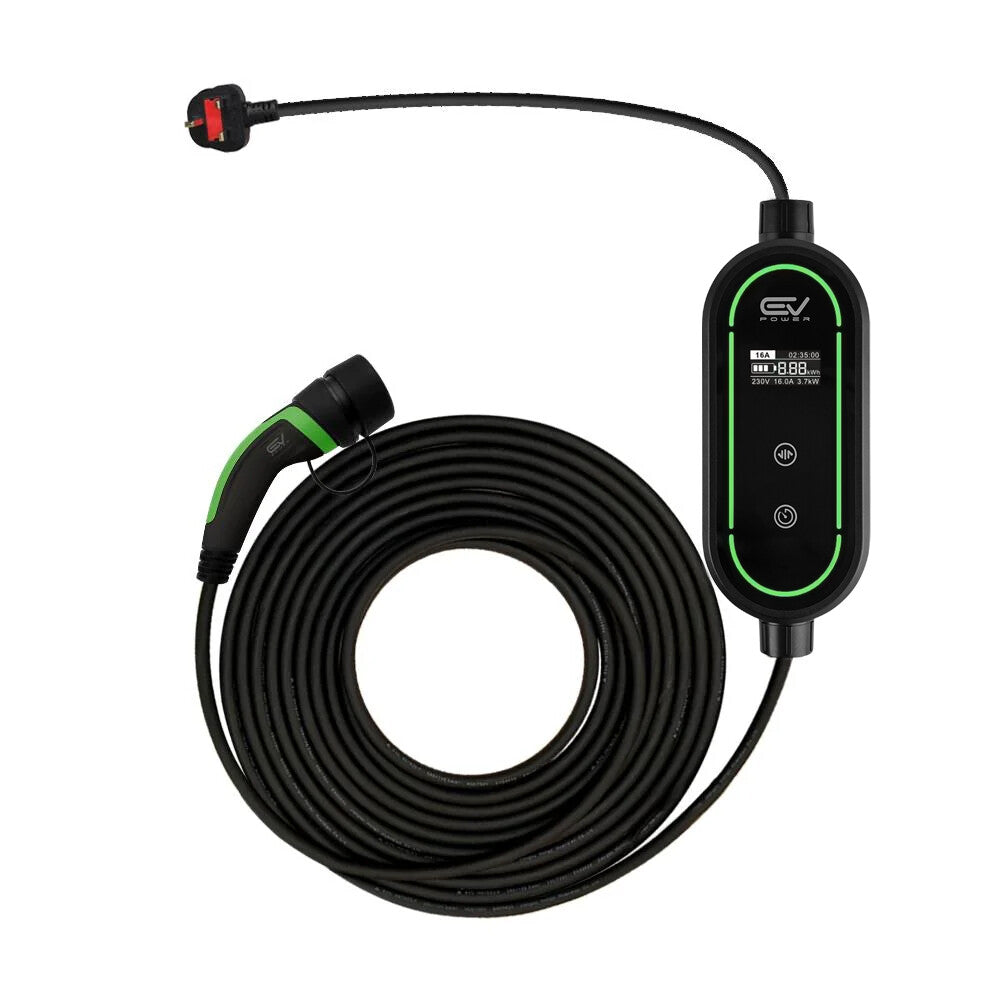

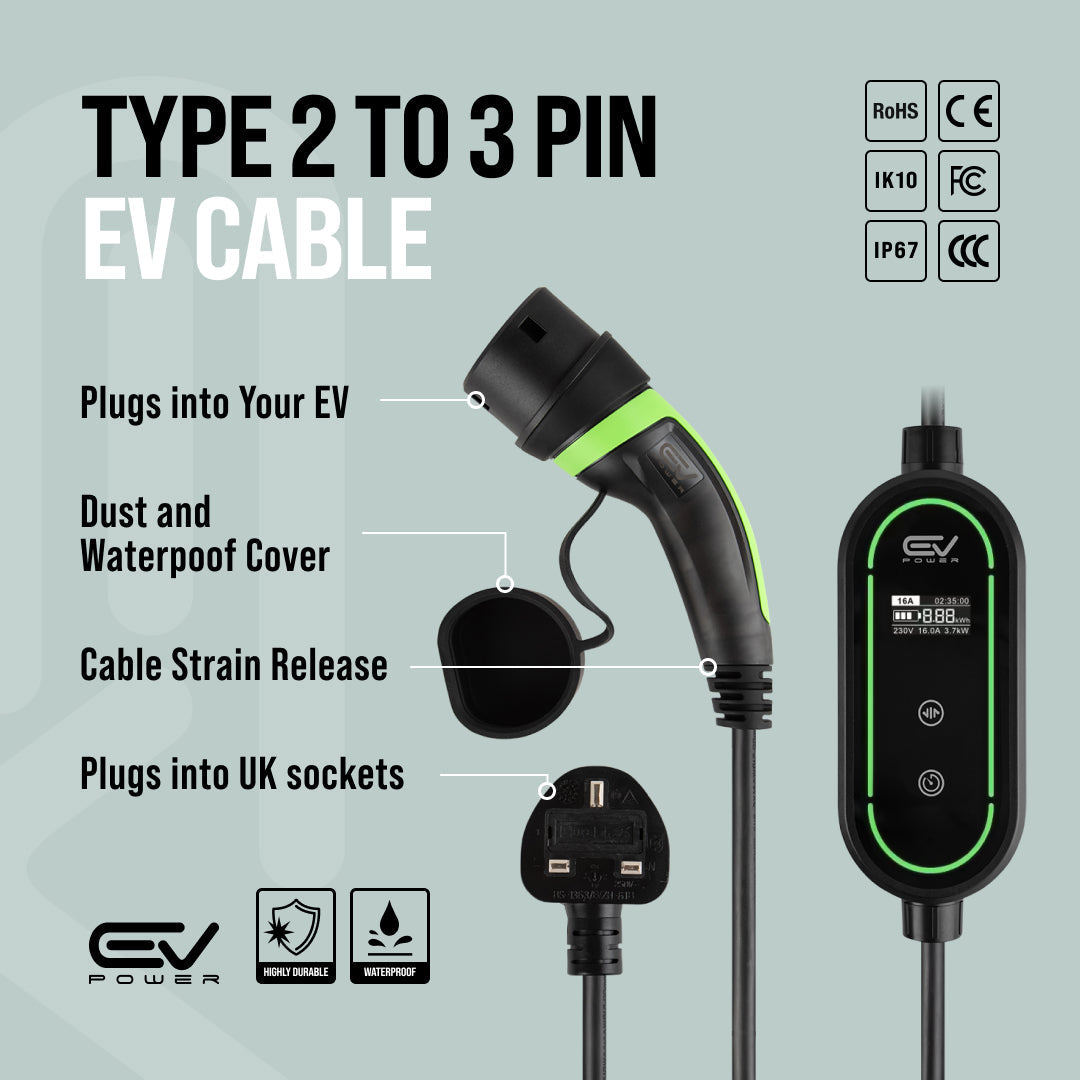

| Connector type | Type 2 to 3 pin, BS1363 13A plug |
| Socket needed | Any standard UK 3 pin socket. No wallbox needed |
| Max power | 2.4 kW |
| Current | 6A to 13A, set on the control box |
| Voltage | 230V AC, 50Hz |
| Range per hour | About 8 miles |
| Overnight | About 100 miles in 12 hours |
| Full range | All Type 2 to 3 pin cables |
| Weatherproof rating | IP67 |
| RCD | Built in, Type B |
| Protection | Over and under voltage, overload, short circuit, earth leakage, over temperature and lightning surge |
| Built to | IEC 62752:2016 / COR1:2019 |
| Certified | CE |

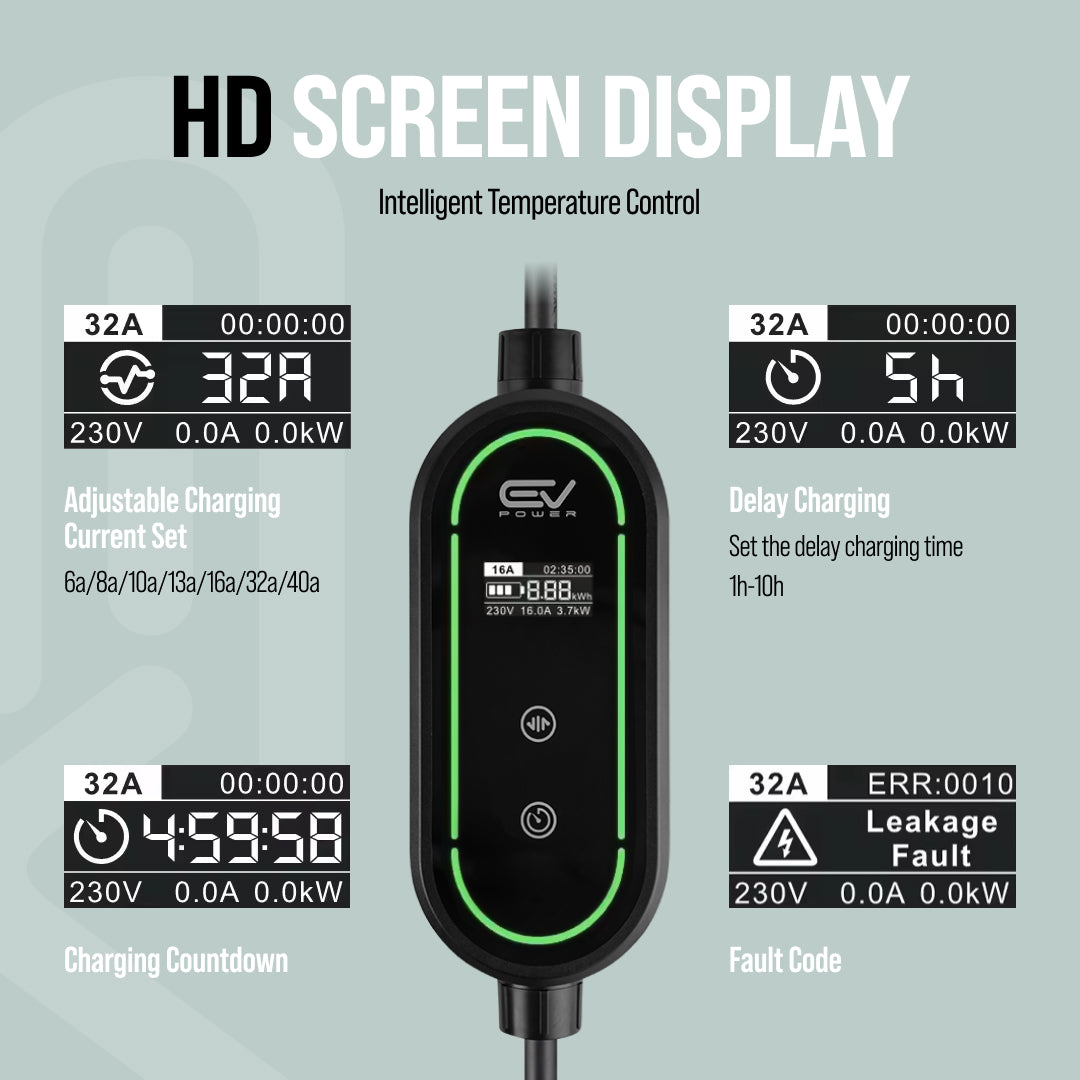

| Display | OLED screen: charging time, energy used, live voltage, current and power, and lifetime total |
| Controls | Touch key, LED status light, adjustable current, delay timer |
| Box size | 200 x 90 x 52 mm |
| Weight | Up to 2.1 kg |
| Cooling | Natural air |
| Standby power | Under 0.5 W |
| Connectivity | None. No WiFi, Bluetooth, 4G or Ethernet |
| Lengths | 5m, 10m, 15m |
| Temperature | -30°C to +60°C |
| Humidity | Up to 95% |
| Max altitude | 2,000m |
| Materials | Tempered glass and PC control box |
| Colour | Black |

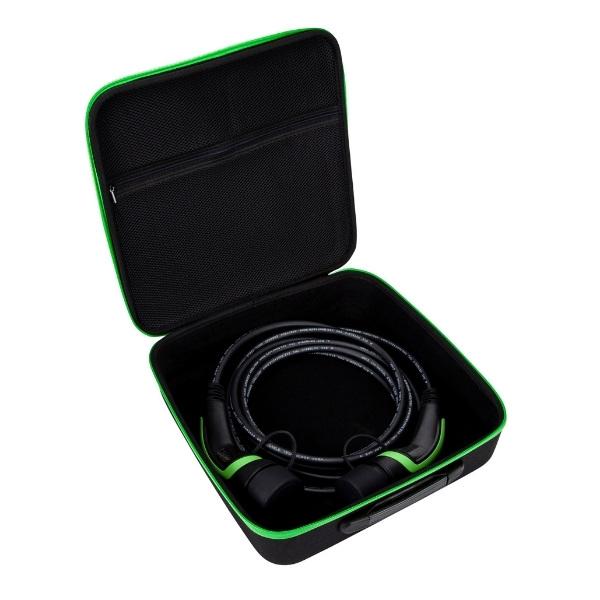

| In the box | Charging cable only. The premium storage carry bag is sold separately |
| Warranty | 2 year warranty |
| Delivery | Free next working day UK delivery |
| Model and years | Battery | Connector | Max AC charge speed | Cable we recommend |
|---|---|---|---|---|
| MG S5 EV SE Standard Range, April 2025 on | 47.1 kWh usable, up to 211 miles WLTP | Type 2 for AC, CCS2 for DC | Around 7 kW, single phase | Type 2 to Type 2, 32A single phase |
| MG S5 EV Long Range, SE and Trophy, April 2025 on | 62.1 kWh usable, up to 298 miles WLTP as the SE and 288 miles as the Trophy | Type 2 for AC, CCS2 for DC | Around 7 kW, single phase | Type 2 to Type 2, 32A single phase |
No petrol or hybrid S5 exists, so anything wearing this badge plugs in and both rows want the same lead. Published ratings for the onboard charger scatter across 7, 7.2 and 7.4 kW, which is why around 7 kW is the honest number to work from; a 32A cable clears that with current to spare and brings the bigger pack home in roughly ten hours. Paying extra for three phases achieves nothing on this model, and the reason is not your house wiring: the charger inside the car is itself a single-phase device, so a 22 kW post feeds it exactly what a driveway does. Do budget for a three-pin lead instead, because MG has stopped putting one in the boot.
