The Kia EV9 takes 11 kW AC on every UK trim, from the entry Air through to the GT. That is a three phase number, so at home the car draws 7.4 kW and a 32A single phase Type 2 to Type 2 charging cable hands it over in full. There is only one battery in the UK EV9, a 99.8 kWh pack, so the cable answer does not change with trim.

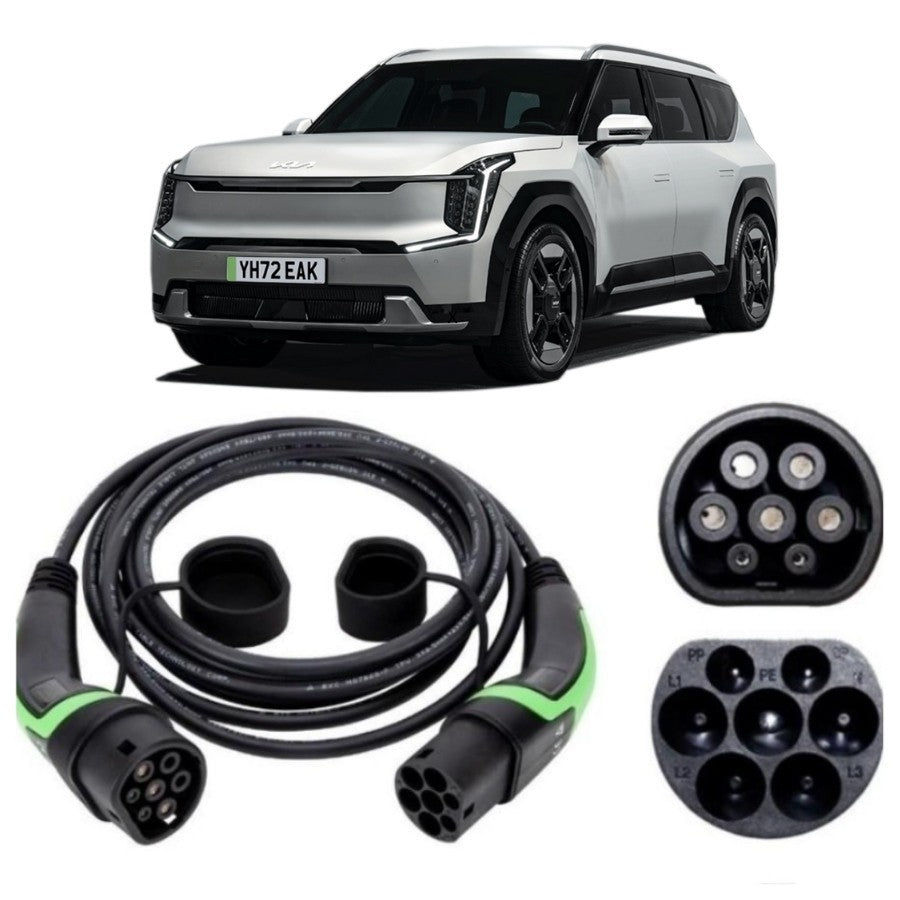

Every Kia EV9 uses a Type 2 to Type 2 Charging Cable. The car has a CCS Combo 2 inlet on the rear right wing, and AC charging happens through the Type 2 section at the top of it.
What makes the EV9 different from almost everything else on this site is the sheer size of the battery. At 99.8 kWh it is roughly twice a family hatchback's, and that changes which cables are actually viable rather than merely slower. A three pin lead needs 49 hours to fill an EV9 from empty. That is not a slow charge, it is two full days, and it means the three pin cable can only ever be a top up on this car.
The 32A single phase cable is the right buy for the vast majority of EV9 owners. It moves the car from empty to full in about 15 hours 15 minutes, which sounds long until you consider that nobody charges a 349 mile car from zero very often. The number that matters day to day is 26 miles of range per hour. A seven hour overnight cheap rate window puts about 180 miles back into the car, which covers a week of school runs and commuting for most families before the car needs another thought.
Run the same maths on a 16A cable and the picture falls apart. At 3.7 kW the EV9 gains roughly 13 miles an hour, so the same overnight window returns about 90 miles. On a seven seat car doing regular long family trips, one night on the cheap lead simply will not replace what a weekend away takes out. Empty to full on the 16A lead takes 30 hours 30 minutes. The battery is simply too big for the cheaper cable to keep up with.
The three phase 22 kW cable is capped by the EV9 to 11 kW and needs a three phase supply to reach even that. UK houses have a single phase feed, so at home it performs identically to the 32A single phase lead while costing more. Where it does pay is a workplace or business park with three phase charging, where the EV9 finishes in about 10 hours 15 minutes and gains 38 miles an hour.

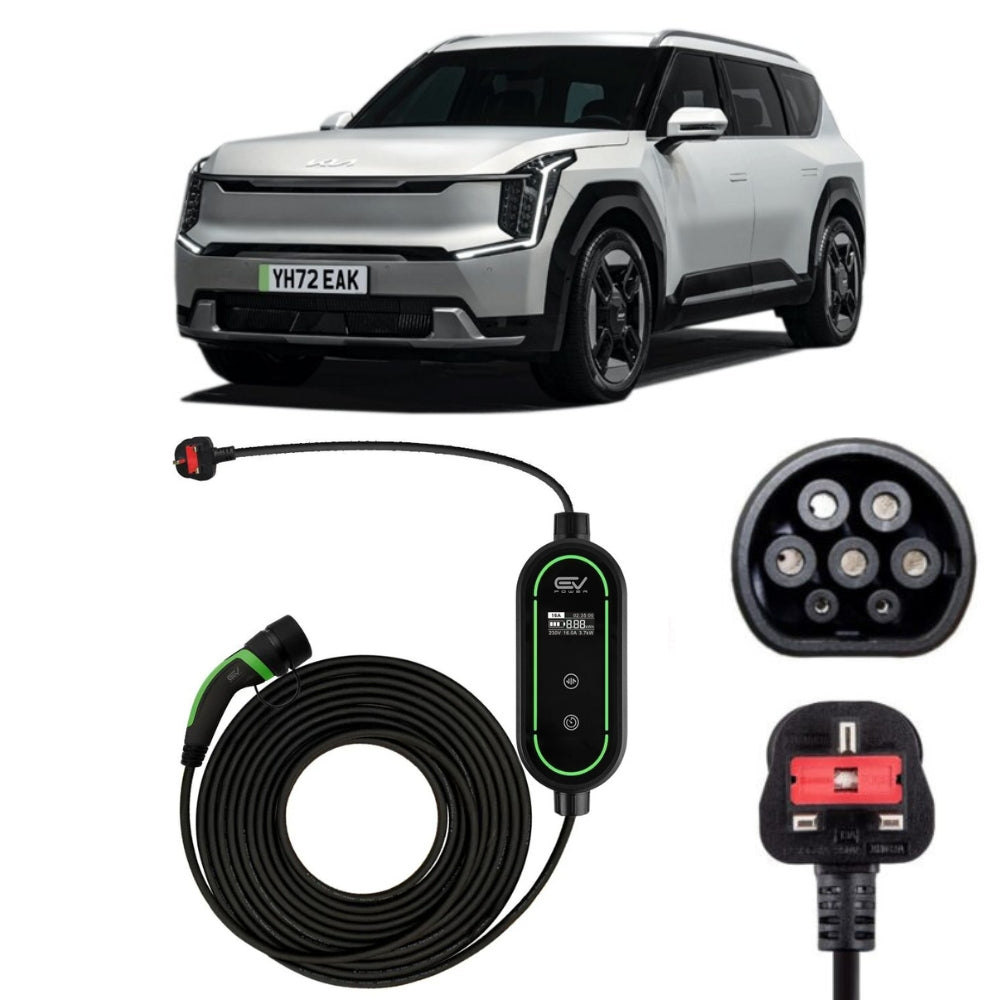

A Type 2 to 3-Pin Charging Cable still earns its place in the boot at 2.3 kW and roughly 8 miles an hour. Left plugged in overnight at a hotel or a relative's house it returns 60 or 70 miles, which is enough to get you to a proper charger rather than enough to fill the car. Treat it as insurance, not as a charging plan.
Owners cross shopping the range will find the Kia EV6 charging cable and the smaller Kia EV3 charging cable pages useful, and the whole marque sits in the Kia EV charging cables collection.
Build standard runs to IEC 62196 Type 2 throughout, with CE certification behind it. Weather sealing is IP55 where the cable is Type 2 at both ends and IP67 on the three pin version, and the operating window stretches from -30C to +50C, or +60C for the 3-pin. A 2 year manufacturer's warranty covers every lead, which ships free on next working day UK delivery.
Maximum onboard AC charging speed: 11 kW three phase, which a single phase home supply limits to 7.4 kW.
| Cable Type | Max Charge Rate | Empty to Full | Range Added Per Hour | Verdict |
|---|---|---|---|---|
| 16A Type 2 to Type 2 | 3.7 kW | 30 hours 30 mins | approx. 13 miles | Too slow for this battery |
| 32A Single Phase Type 2 to Type 2 | 7.4 kW | 15 hours 15 mins | approx. 26 miles | Best Fit at home |
| 32A Three Phase Type 2 to Type 2 | 11 kW (car limited) | 10 hours 15 mins | approx. 38 miles | For 22kW posts and workplaces |
| Type 2 to 3-Pin | 2.3 kW | 49 hours | approx. 8 miles | Top up only, never a full charge |
The all wheel drive GT-Line, GT-Line S and GT trims are rated at 313 to 316 miles rather than 349, so their range added per hour is roughly a tenth lower while the charging times stay the same. Kia publishes 99.8 kWh as the total pack size and does not state a usable figure, so these times are calculated on the total and will run slightly long in practice. Both cold weather and sustained high speeds cut this figure.
We pride ourselves on the quality of our cables. Every cable comes with a 2 year manufacturer's warranty, and the jacket will survive being driven over, though we would rather you did not make a habit of it.
Protection against pressure
Our cables are safe to use whatever the weather. Type 2 to Type 2 cables are IP55 rated, CE marked, and work from -30°C to +50°C. Type 2 to 3 pin cables are IP67 rated, CE marked and work from -30°C to +60°C.
Protection against temperature
Our cables fit any electric car or plug-in hybrid with a Type 2 inlet, including Audi, BMW, Volvo, Mini, Mercedes, Kia, Hyundai, Volkswagen, Smart and Toyota. Use our car reg checker to confirm your car.
Compatible with all Type 2 cars
A 32A single phase Type 2 to Type 2 charging cable is the best cable for a Kia EV9 at home. It delivers the full 7.4 kW a UK domestic supply allows and returns around 180 miles of range across a seven hour off peak window, which is enough for most families to charge once or twice a week.
No. Every UK Kia EV9, from the Air to the GT, uses the same 99.8 kWh battery and the same 11 kW onboard AC charger, so all of them charge at the same rate from a given cable. The only difference between trims is efficiency: the rear wheel drive Air travels 349 miles on a charge against 313 to 316 for the all wheel drive versions, so each hour of charging buys the Air slightly more miles.
Only if you have somewhere three phase to plug it in. The Kia EV9 accepts 11 kW, which needs three phases, and British homes are fed by one. On a domestic wallbox a 22 kW cable charges an EV9 at exactly the same speed as the 32A single phase lead. At a three phase workplace charger it cuts a full charge from 15 hours 15 minutes to 10 hours 15 minutes.
It can, but not quickly enough to rely on. A three pin cable adds about 8 miles of range an hour to a Kia EV9 and would need 49 hours to fill the 99.8 kWh battery from empty. It is a sensible thing to carry for overnight stops where no wallbox exists, and a poor substitute for a proper home charging setup.
The Kia EV9 is a little over five metres long with its charging inlet on the rear right wing, which is the longest car most owners will ever park on a domestic driveway. A 5m cable only works if the wallbox is close to where that rear corner sits. Given the length of the car, most EV9 owners are better served by a 10m lead, and anyone parking on the street or in a shared bay should look at 15m.
Around 180 miles in a seven hour cheap rate window on a 32A single phase cable. The same window on a 16A cable gives a Kia EV9 about 90 miles. Because the battery holds 99.8 kWh, the gap between the two cables compounds every night rather than costing you once.
Showing both cable types. Choose a cable type above and this section will show just that specification.
Showing the specification for the cable type you have selected. Compare both cable types.
| Type 2 to Type 2 | Type 2 to 3 pin | |
|---|---|---|
| Charges from | A home wallbox or a public charge point | Any standard UK 3 pin socket, no wallbox needed |
| Max power | 3.7 kW at 16A, 7.4 kW at 32A, 22 kW on three phase | 2.4 kW |
| Speed at home | 7.4 kW on a 32A cable. UK homes are single phase, so an 11 kW or 22 kW car still draws 7.4 kW | 2.4 kW |
| Range per hour | About 12 miles at 3.7 kW, 25 miles at 7.4 kW | About 8 miles |
| Weatherproof rating | IP55 | IP67 |
| Temperature | -30°C to +50°C | -30°C to +60°C |
| Built to | IEC 62196-2:2016 2-IIb | IEC 62752:2016 / COR1:2019 |
| Certified | CE | CE |
| Best for | Your everyday charging cable | Backup, and away from home where there is no wallbox |
| Choose this | Select Type 2 to Type 2 for the KIA EV9 | Select Type 2 to 3 pin for the KIA EV9 |
| Full range | All Type 2 to Type 2 cables | All Type 2 to 3 pin cables |
| Connector type | Type 2 to Type 2 (IEC 62196-2:2016 2-IIb, Mennekes) |
| Rated current | 16A or 32A single phase, or 32A three phase |
| Max power | 3.7 kW at 16A, 7.4 kW at 32A, 22 kW on three phase |
| Speed at home | 7.4 kW. UK homes are single phase, so an 11 kW or 22 kW car still draws 7.4 kW |
| Range per hour | About 12 miles at 3.7 kW, 25 miles at 7.4 kW |
| Slower supplies | Fine. Charging runs at the lowest limit of the car, the charge point and the cable, so a 32A cable works normally on a 16A supply |
| Voltage | AC 250V single phase, AC 400V three phase, 50Hz |
| Signal current | 2A at 30V |
| Full range | All Type 2 to Type 2 cables |
| Lengths | 5m, 10m, 15m, 20m |
| Conductors | 16A: 3 x 2.5mm² plus 2 x 0.5mm² 32A single phase: 3 x 6mm² plus 2 x 0.5mm² 32A three phase: 5 x 6mm² plus 1 x 0.5mm² |
| Insulation | XLPO |
| Sheath | TPU |
| Shell | Flame retardant thermoplastic, UL94-V0 |
| Pins | Copper alloy, silver plated |
| Colour | Black cable, green and black connectors |
| Weatherproof rating | IP55 in use |
| Temperature | -30°C to +50°C |
| Mechanical life | Over 1,000 connections |
| Impact | Survives a 1m drop and a 2 tonne vehicle driving over it |
| Plug force | Under 100N |
| Insulation resistance | Over 1,000 MΩ at DC 500V |
| Withstand voltage | 2,500V |
| Contact impedance | 0.5 mΩ maximum |
| Pin temp rise | Under 50K |
| Built to | IEC 62196-2:2016 2-IIb |
| Certified | CE |
| Connector type | Type 2 to 3 pin, BS1363 13A plug |
| Socket needed | Any standard UK 3 pin socket. No wallbox needed |
| Max power | 2.4 kW |
| Current | 6A to 13A, set on the control box |
| Voltage | 230V AC, 50Hz |
| Range per hour | About 8 miles |
| Overnight | About 100 miles in 12 hours |
| Full range | All Type 2 to 3 pin cables |
| Weatherproof rating | IP67 |
| RCD | Built in, Type B |
| Protection | Over and under voltage, overload, short circuit, earth leakage, over temperature and lightning surge |
| Built to | IEC 62752:2016 / COR1:2019 |
| Certified | CE |
| Display | OLED screen: charging time, energy used, live voltage, current and power, and lifetime total |
| Controls | Touch key, LED status light, adjustable current, delay timer |
| Box size | 200 x 90 x 52 mm |
| Weight | Up to 2.1 kg |
| Cooling | Natural air |
| Standby power | Under 0.5 W |
| Connectivity | None. No WiFi, Bluetooth, 4G or Ethernet |
| Lengths | 5m, 10m, 15m |
| Temperature | -30°C to +60°C |
| Humidity | Up to 95% |
| Max altitude | 2,000m |
| Materials | Tempered glass and PC control box |
| Colour | Black |
| In the box | Charging cable only. The premium storage carry bag is sold separately |
| Warranty | 2 year warranty |
| Delivery | Free next working day UK delivery |
Every EV9 is fully electric and takes a Type 2 cable. There is only one battery size in the UK, so charging is the same across the range. Trim level makes no difference.
| Badge | Years | Battery | Connector | Max AC charge speed | Cable we recommend |
|---|---|---|---|---|---|
| EV9 Air, rear wheel drive | 2023 onwards | 99.8 kWh | Type 2 | 11 kW | Type 2 to Type 2, 32A |
| EV9 GT-Line all wheel drive | 2023 onwards | 99.8 kWh | Type 2 | 11 kW | Type 2 to Type 2, 32A |
| EV9 GT-Line S all wheel drive | 2023 onwards | 99.8 kWh | Type 2 | 11 kW | Type 2 to Type 2, 32A |
| EV9 GT | 2025 onwards | 99.8 kWh | Type 2 | 11 kW | Type 2 to Type 2, 32A |
